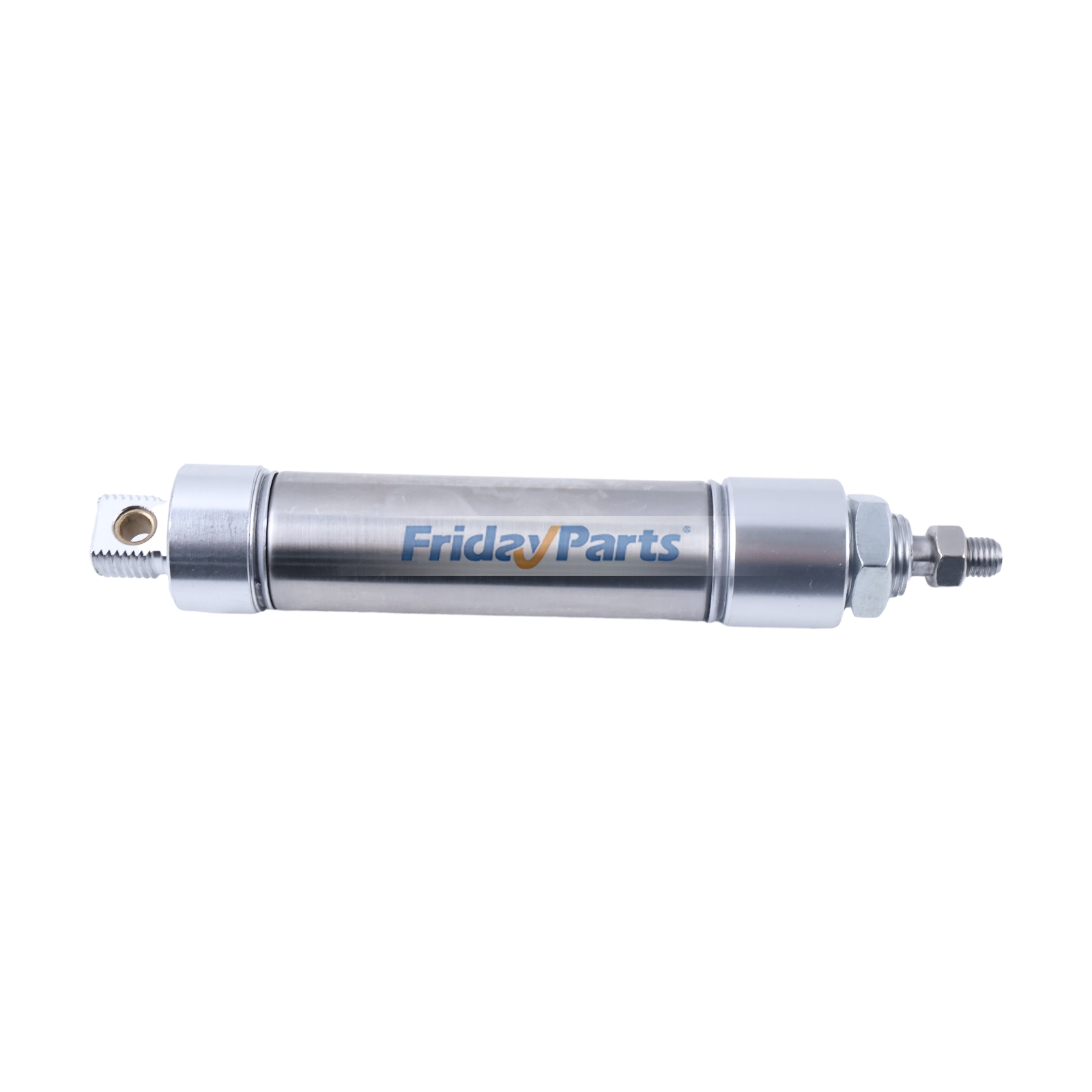

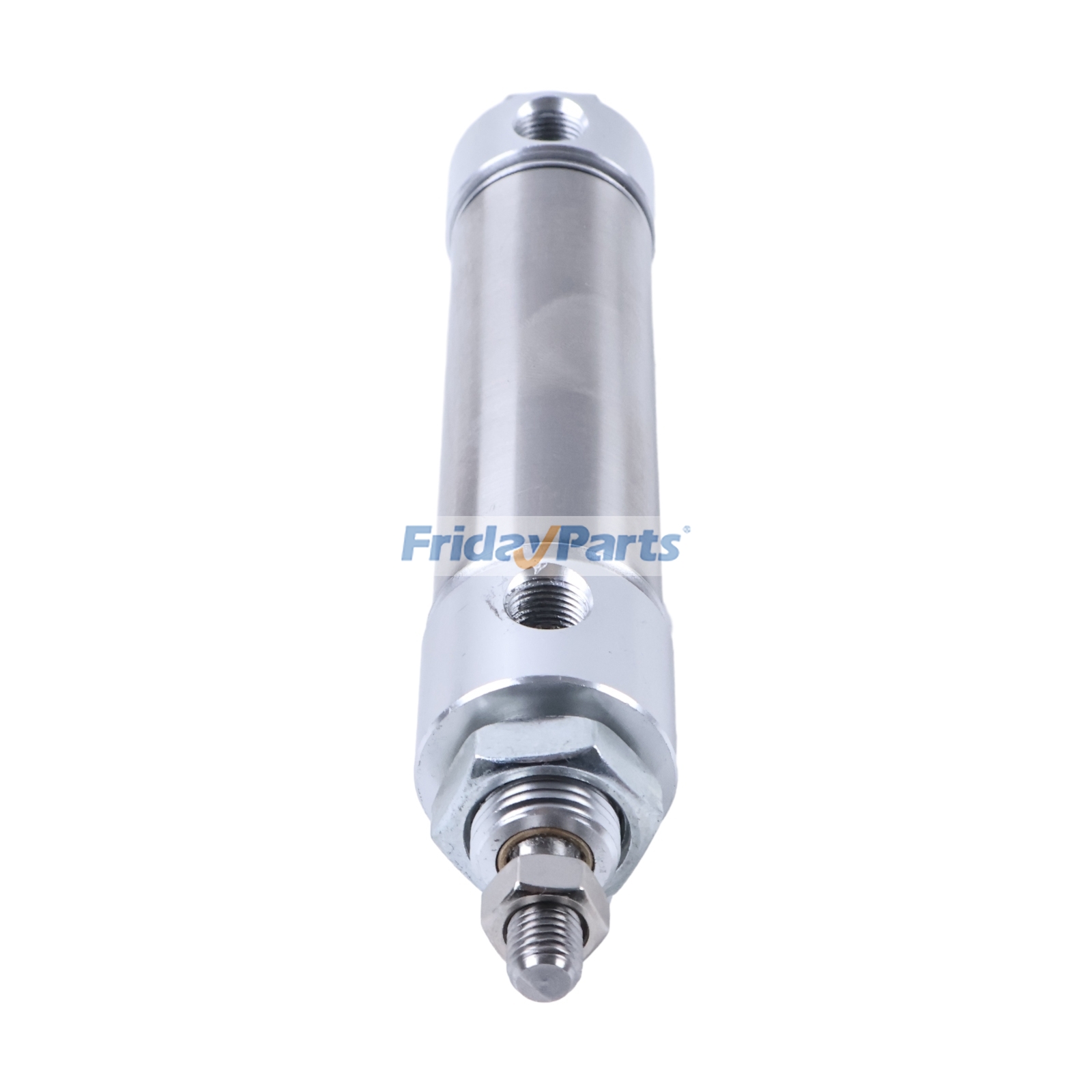

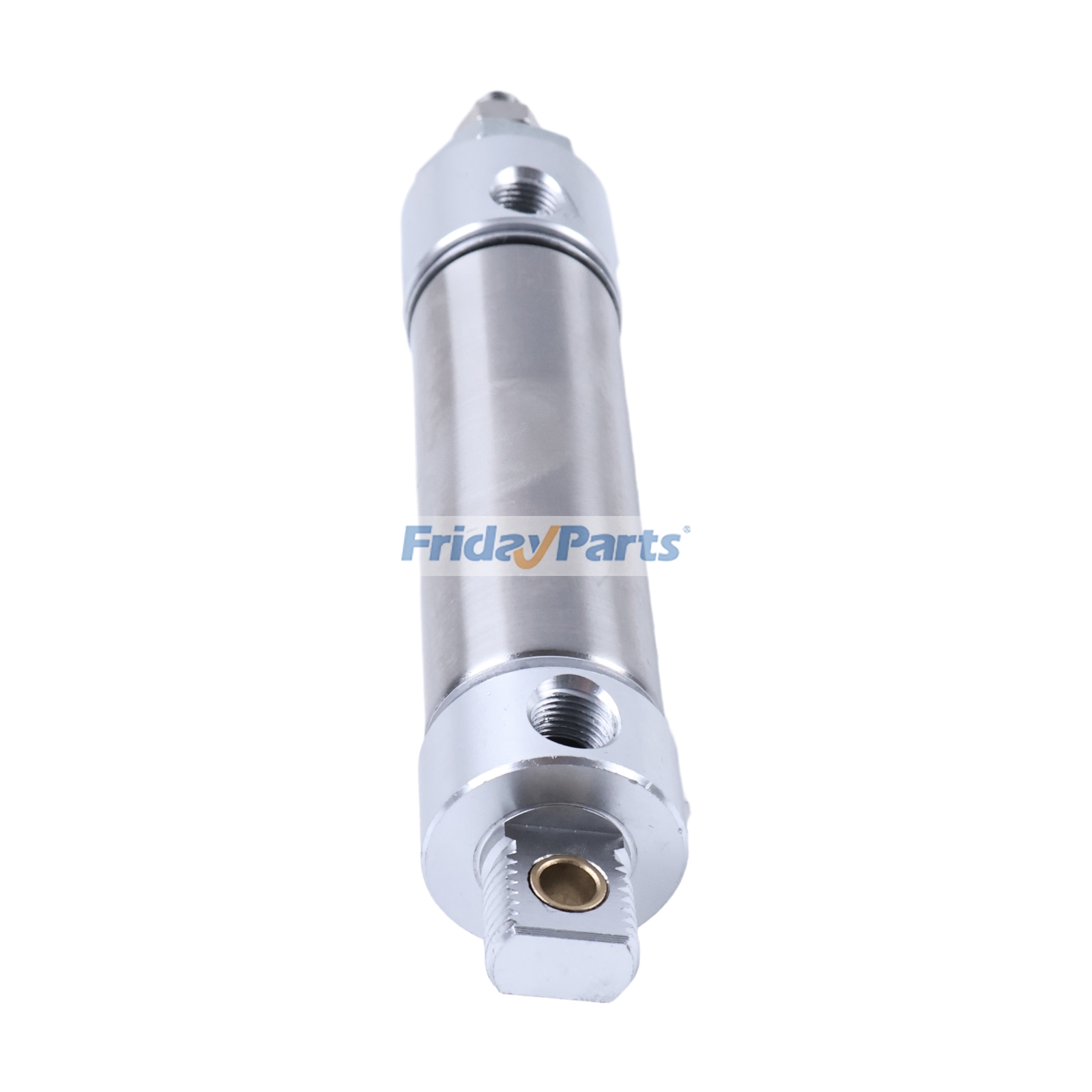

1-1/16" Bore 2 In Stroke Round Body Air Cylinder Replacement for Parker 1.06DPSR02.00
Replacement Part Number: 1.06DPSR02.00, 106DPSR0200
Specifications:
Main Function: Pneumatic Cylinder
Product Series: Cylinders (Pneumatic) > Round Body Cylinders
Sub-Range: SR Series
Bore Size: 1-1/16" (B1-1/16)
Stroke Length: 2" (S2)
Type: Double-Acting Stainless Steel Pneumatic Cylinder
Design: "LipSeal" Piston, Aluminum Head and Cap, Non-Repairable
Maximum Pressure: 250 psig / 17 bar
Rod Diameter: 5/16"
Ports / Connection: 2 x 1/8" NPT Threaded Pneumatic Ports; 5/16-24 UNF Male Threaded Rod End
Mounting Style: Pivot and Nose Mounting (with Pivot Pin)
Materials: 304 Stainless Steel Cylinder Body, Aluminum Piston, Oil-Impregnated Bronze Rod Bushing, Stainless Steel Piston Rod
Operating Temperature: -23°C to +74°C
Features: Corrosion Resistant
Applications:
Fit For Conveyor Systems, Industrial Automation Machines
| Brand: | FridayParts |
| Compatible Model Brand: | For Parker |
| Replacement Part Number: | 1.06DPSR02.00 |
