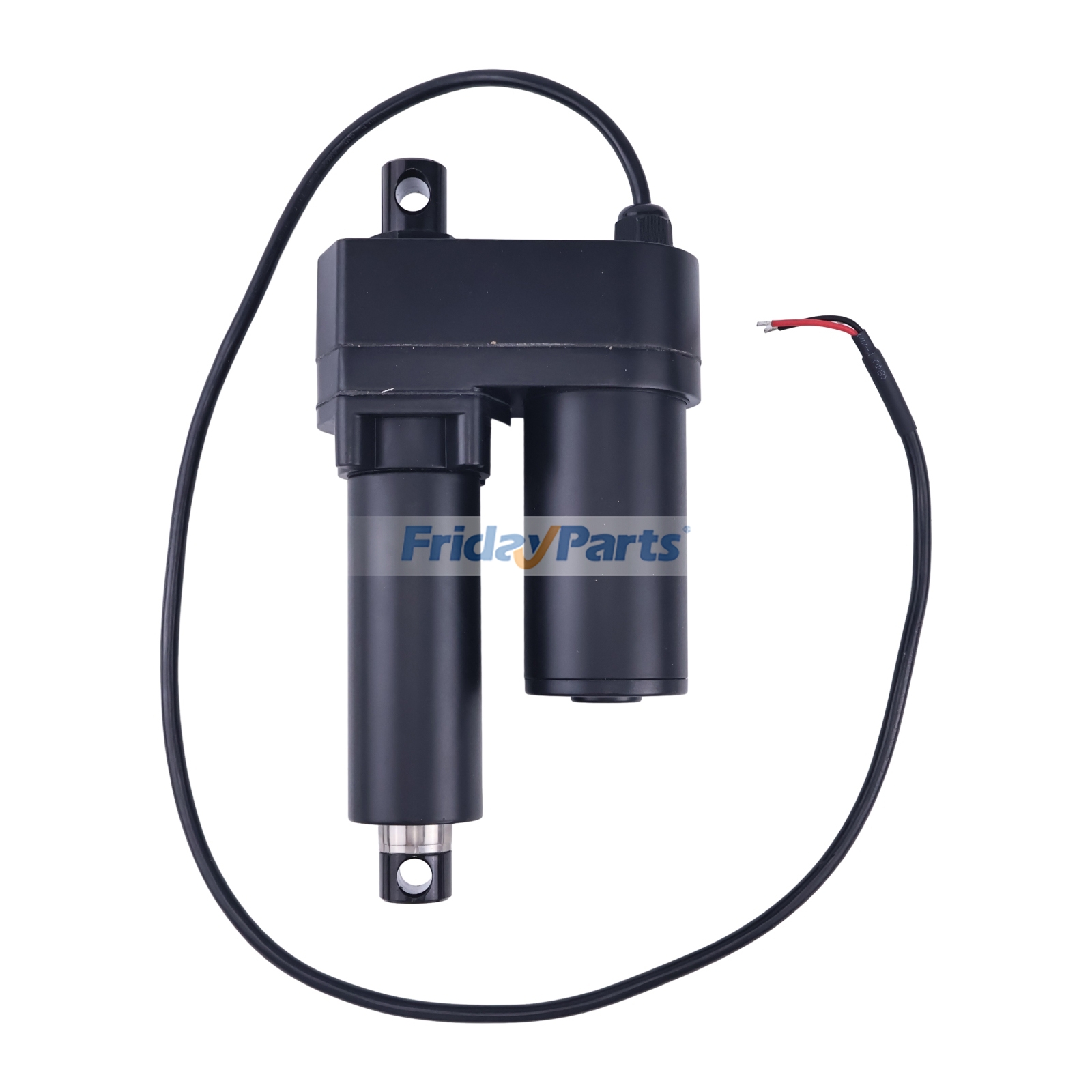

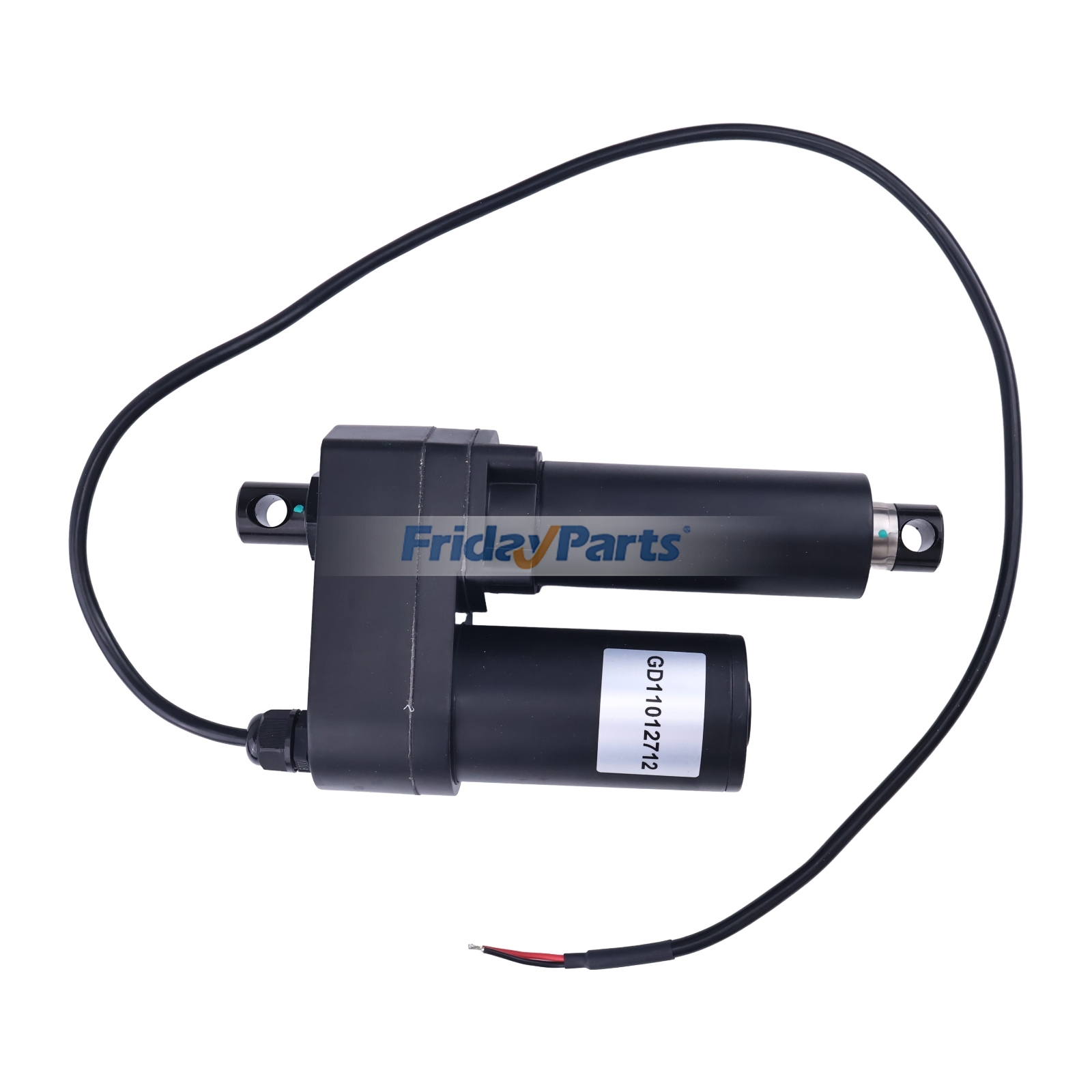

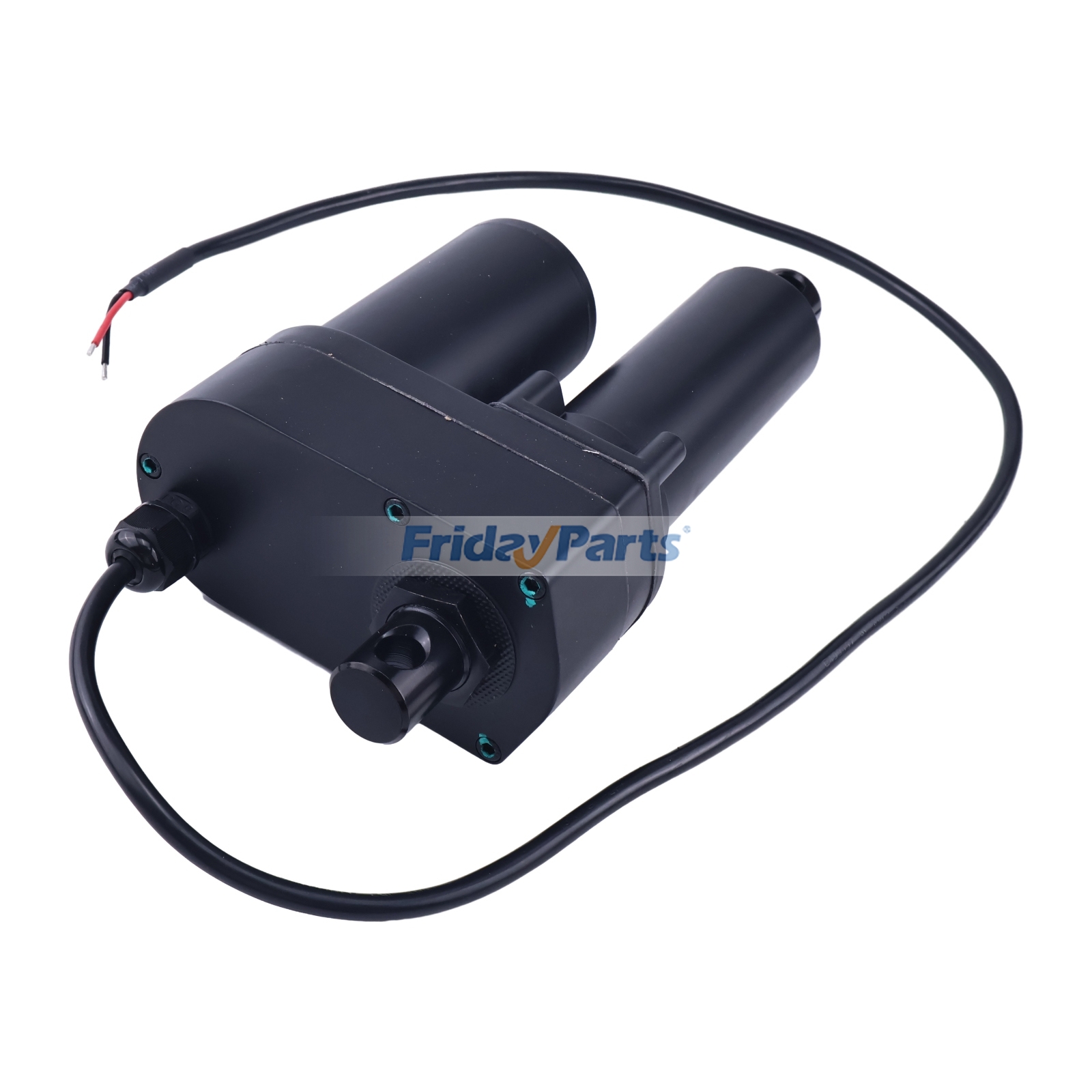

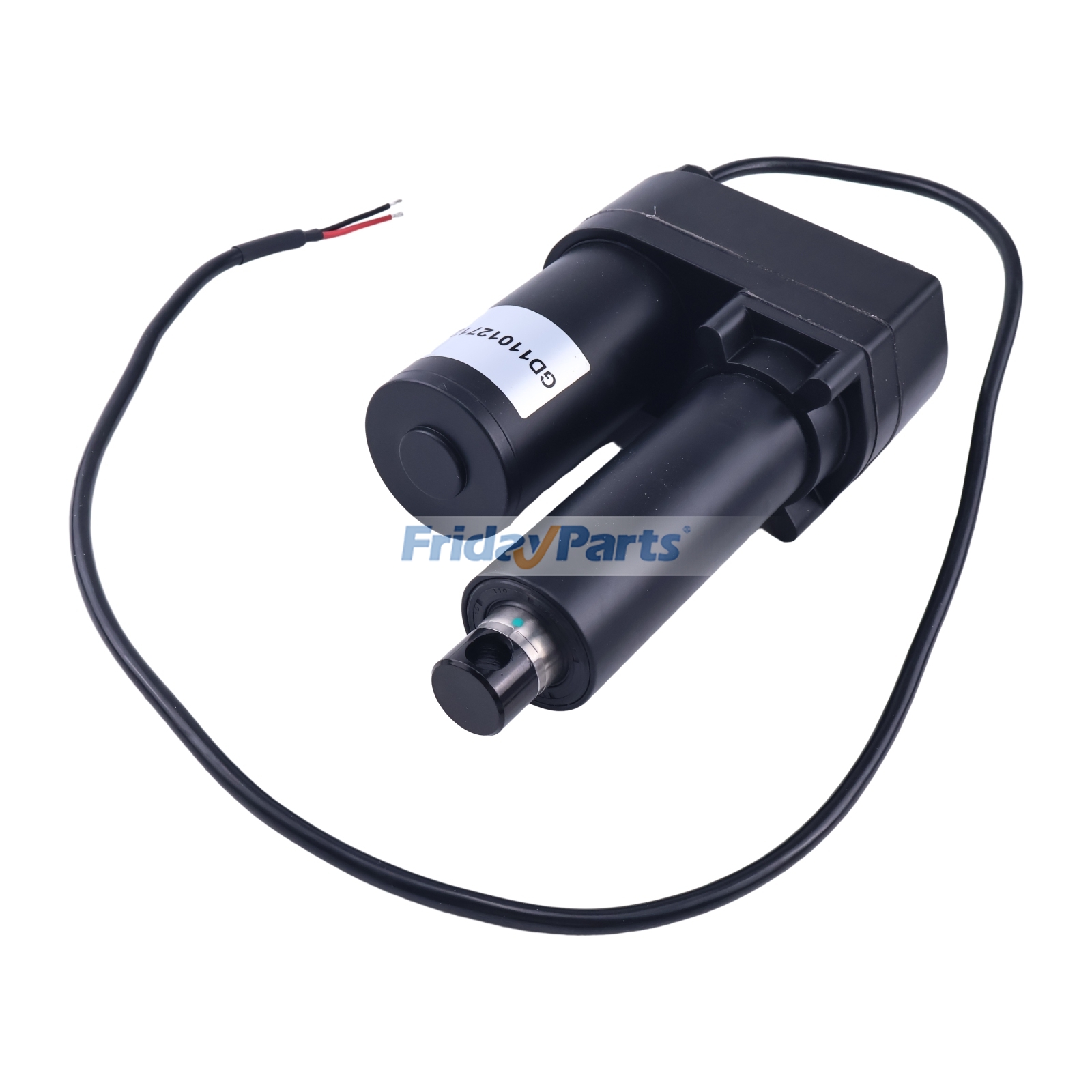

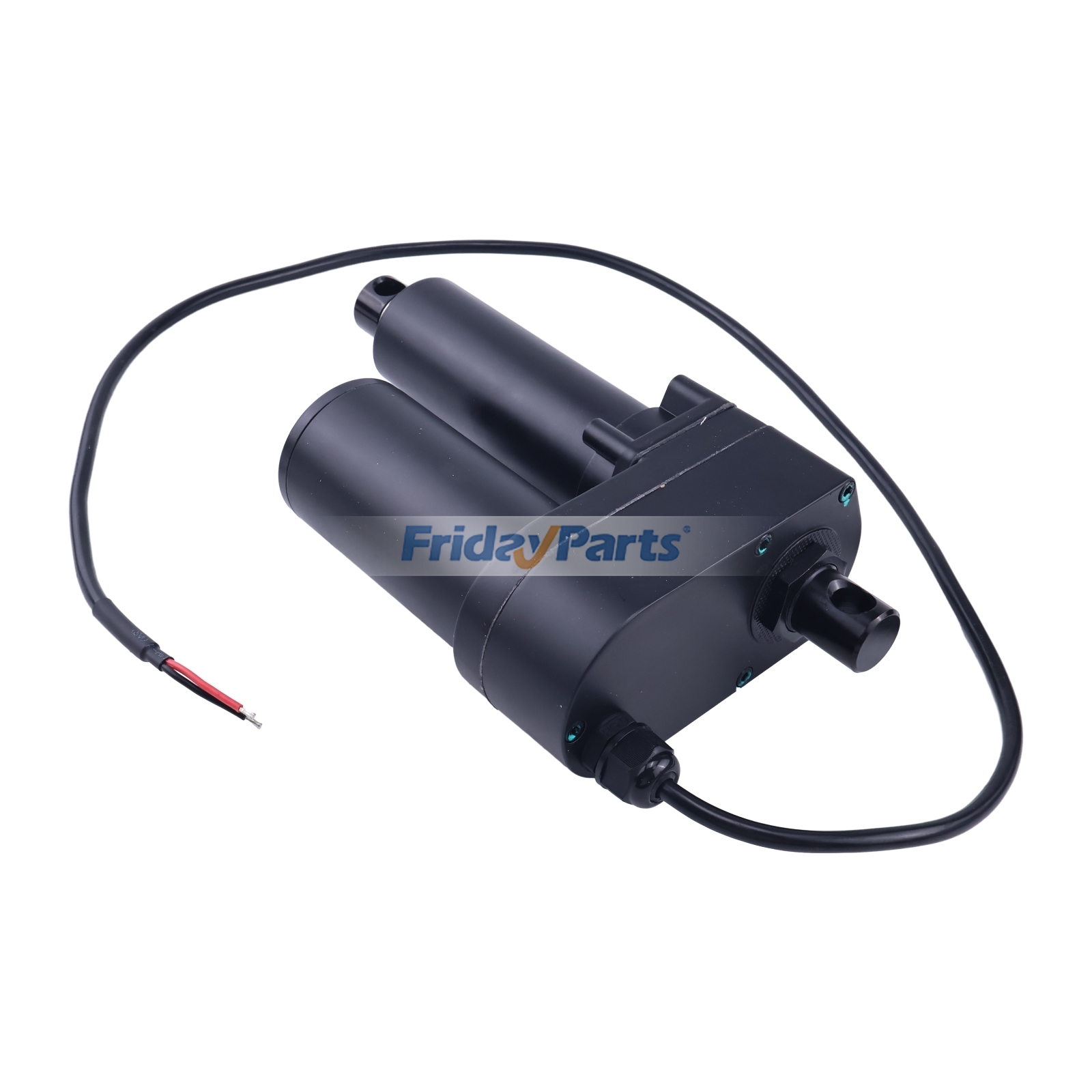

12V 500LBS 4.01" Stroke Linear Actuator 5-1679-4 for Seeder Harvester Lift
Replacement Part Number: 5-1679-4AA, 516794AA
Specification:
Stroke: 102 mm (4.02 inches)
Voltage: 12V DC
Push/Pull Force:
Dynamic: Max 500 lbs
Extension Speed:
No Load: 0.66 in/sec
Full Load: 0.56 in/sec
Current:
No Load: 2.4 A
Full Load: 13.2 A
Gear Ratio: 20:1
Duty Cycle: 25% (i.e., continuous operating time is 25% of the total time)
Operating Temperature Range: -13°F to +149°F (approximately -25°C to +65°C)
Protection Rating: IP65 (dust-tight and protected against water jets)
Mounting Hole Diameter: 1/2 inch
Retracted Length: 10.24 inches
Shaft Diameter: 1-1/8 inch
Applications:
Fit For Seeder, Harvester, Lift
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | 5-1679-4AA,516794AA |
