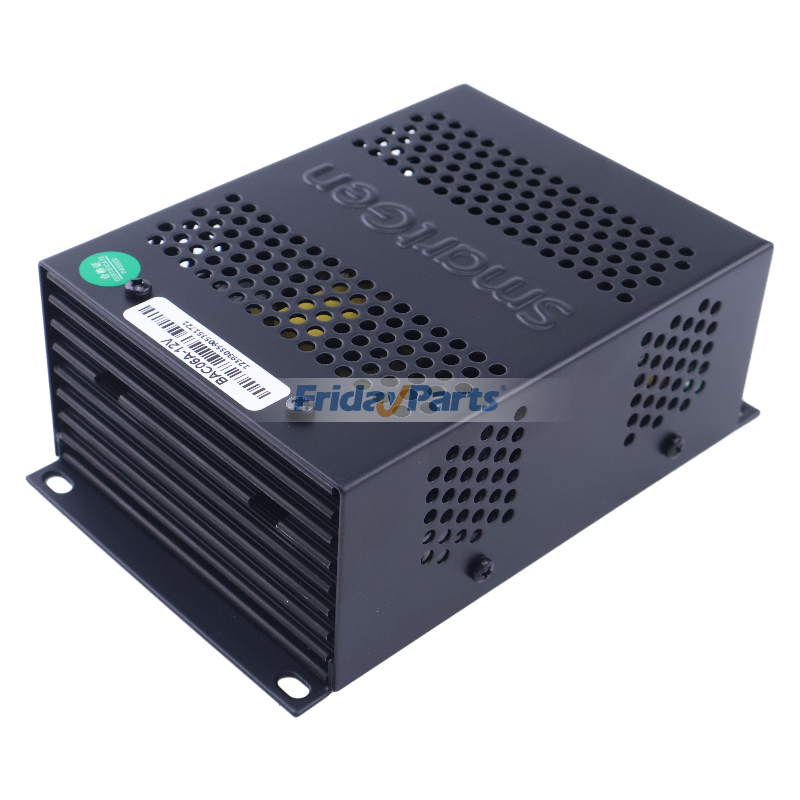

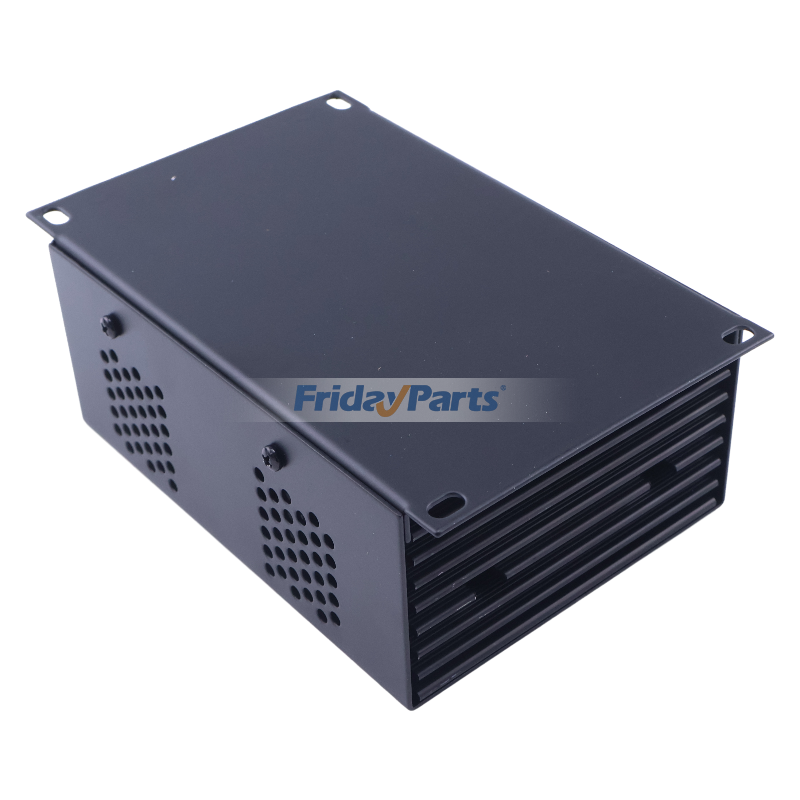

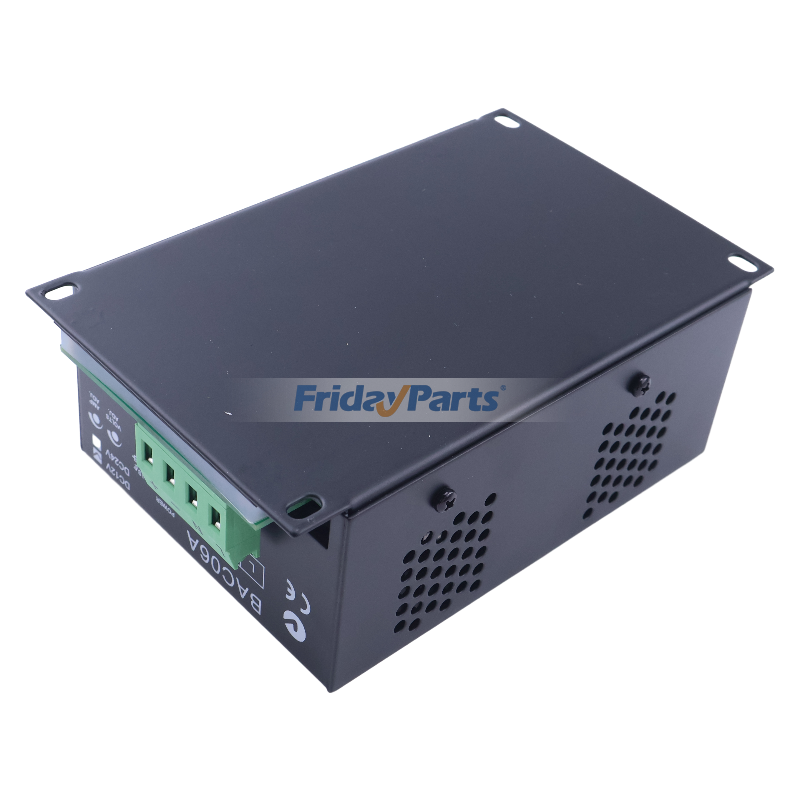

Battery Charger BAC06A Controller - Replaces SmartGen

Battery Charger BAC06A Controller - Replaces SmartGen

Induction:
BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge.

Feature:
1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3.With short circuit and reverse connection protection;
4.Charging voltage and current can be adjusted via potentiometer on the spot;
5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;

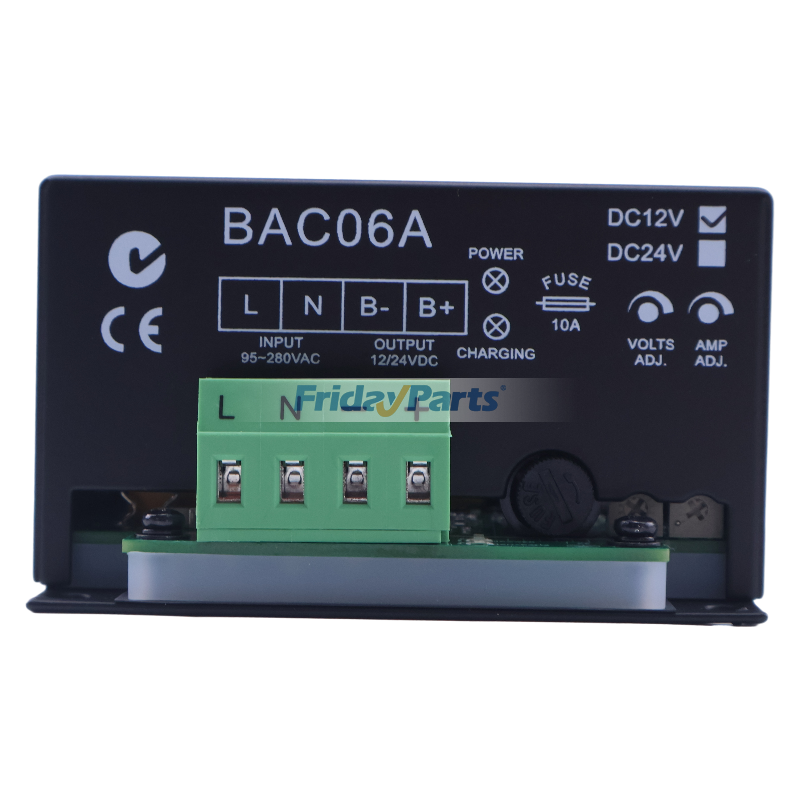

6.LED display: Power indication and charging indication;

Specification:
Battery Voltage:12V/24V
Max. Charge Current:6A/3A
Charge Voltage Range:(13~14.5)V/(26~29)V
Charge Current Range:(3~7)A/(1.5~3.5)AAC
Voltage:(95~280)VACAC
Frequency :50 Hz/60Hz
Power Consumption:120W/115W
No-Load Power Consumption :Less than 3W
Efficiency More than 80% :More than 85%
Working Temperature:(-40~60)°C
Storage Temperature:(-40~85)°C

Application:
This is an aftermarket BAC06A floating charger designed to directly replace SmartGen. It is suitable for use in a wide range of Generater that requires the SmartGen BAC06A floating charger specification.

Disclaimer:
This part is not manufactured by or affiliated with SmartGen. It is an independent aftermarket product.
