Your fuel pump is usually powered by the ECU/ECM through a relay and wiring. The relay is normally found in a separate electrical box or power distribution box. Since the fuel system runs nonstop while your machine is operating, the relay, wiring connectors, and control module are under heavy load all the time. This makes them more likely to have bad connections, overheating, or internal damage. When it fails, the fuel pump won’t work properly, and you’ll see clear symptoms on your machine.
What Does a Fuel Pump Relay Do?
Think of the fuel pump relay as a small smart switch. It turns the power to the fuel pump on and off. The fuel pump needs a lot of power to run, too much to go straight through the key switch or the ECU. So the relay does the heavy work for them. Here’s how it works in real life:
- You turn the key to ON
- The ECU sends a small signal to the relay
- The relay “clicks” and closes the circuit
- Power flows from the battery to the fuel pump
- The fuel pump starts running and pushes fuel to the engine
- If the relay isn’t working, the pump never gets power. No power means no fuel — and the engine won’t start or will die while running.

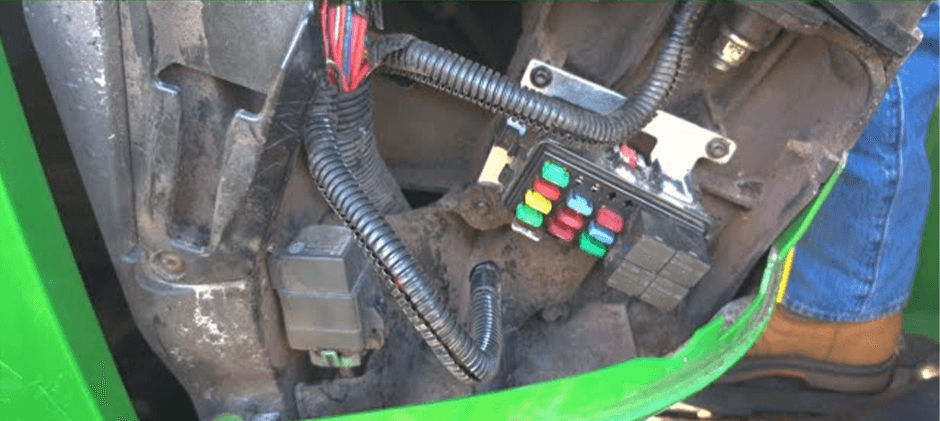

Where Is the Fuel Pump Relay Located?
Relay locations change a lot from brand to brand and model to model, so there’s no one “standard” spot. But most of the time, you’ll find them in places like these:
- Main fuse/relay box: This is the most common spot. It’s usually a black box, either inside the cab (near the operator’s seat) or in the engine bay. The inside of the lid normally has a diagram that shows what each relay does.
- Auxiliary electrical panel: Bigger machines often have more than one electrical box. You might find a smaller relay panel near the engine or close to the batteries.
- Integrated power module: On some newer machines, control units are more integrated, and some power circuits are built into sealed control modules. In these setups, individual relays may not be serviceable on their own. If something fails, the whole control module may need to be repaired or replaced — not just a single relay.
The easiest way to find the relay is to check the machine’s operator’s manual or service manual. It shows the exact electrical layout and locations. Most relays look like small plastic cubes (usually black, gray, or blue) with 4 or 5 metal pins on the bottom.

Bad Fuel Pump Relay Symptoms
A fuel pump relay usually doesn’t fail all at once. Most of the time, it starts acting up on and off — working sometimes, not working other times — which makes it hard to track down. When it goes bad, it can cause a lot of problems. Sometimes it’s just small issues. Other times, the machine won’t start at all. Here are the most common signs of a bad fuel pump relay:
Engine Cranks But Won’t Start
You turn the key, the engine cranks, but it never starts. This usually means the relay is stuck open. Power isn’t getting to the fuel pump, so no fuel reaches the engine. A lot of times it starts like this:
- Won’t start when it’s cold
- Starts later after a few tries
- Works fine sometimes, dead other times
- Over time, this usually gets worse until it becomes a full no-start problem.
Machine Stalls While Working
The machine is running fine — digging, lifting, hauling — then the engine just dies. This happens when the relay has weak internal connections. Vibration and heat can make it lose contact for a moment, cutting power to the fuel pump. No power = no fuel = engine stalls. After sitting a few minutes, it may start right back up like nothing happened, which makes it really confusing.
Weak Performance and Power Loss
A failing relay doesn’t always go fully bad. Sometimes the contacts inside get worn or corroded, creating high resistance. That means lower voltage to the fuel pump → slower pump → low fuel pressure. You’ll notice things like:
- Sputtering / hesitation under load
- Machine feels weak.
- Uneven running
An intermittent relay is one of the hardest problems to diagnose. It can look like a bad fuel pump, clogged fuel filters, or injector problems. That’s why checking the relay first is a smart and cheap first step.
No Fuel Pump Sound at Key-On
Normally, when you turn the key to ON, the fuel pump makes a low humming sound for 2–3 seconds (priming). If you turn the key and hear nothing from the fuel tank area, the pump probably isn’t getting power. Top causes:
- Fuel pump fuse
- Wiring
- Fuel pump relay (most common)
Fuel Pump Runs All the Time
Sometimes the relay fails to close (stuck on). That means the fuel pump keeps running even when the key is off and removed. You may hear the pump humming after shutdown. This will drain the battery overnight, and the machine will be dead in the morning.
Warning Light / Fault Code
Modern machines monitor the fuel pump relay circuit through the ECU. If the ECU sees:
- Open circuit
- Short
- Wrong voltage
It will turn on a warning light and store a DTC. A common code is P0230 – “Fuel Pump Primary Circuit Malfunction.”
How to Test a Fuel Pump Relay?
If you think your relay is bad, you can do a few simple tests to confirm. Always disconnect the battery before working on any electrical parts.
The Relay Swap Test
Find the fuel pump relay in the fuse box. Look for another relay with the exact same part number and pin configuration — Often used for non‑essential systems like the horn or air conditioning. Swap the two relays. If your machine starts with the swapped relay, the original fuel pump relay is faulty.
The Listen Test
As we mentioned earlier, just turn the key to the “on” position (don’t start the engine) and listen closely. You should hear a 2–3 second hum from the fuel pump. If you hear it, your relay is probably working. If you hear nothing at all, the relay is possibly bad.
Multimeter Test
If you’re familiar with using a multimeter, this is a reliable bench test.
- Take the relay out. The pins are usually numbered: 85 and 86 are the low-current control circuit, and 30 and 87 are the high-current switched circuit.
- Set your multimeter to “continuity” or “ohms (Ω)”. Touch the probes to pins 30 and 87. You should get an “open circuit” (no continuity).
- Now use a 12V power source (like the machine’s battery) and carefully apply power to pins 85 and 86. You should hear a small “click” when the relay activates.
- While power is on, check continuity again between pins 30 and 87. This time, it should show a “closed circuit” (continuity with near-zero resistance). If it doesn’t click or doesn’t show continuity, the relay is bad.
Practical Tips to Maintain Fuel Pump Relay
Relays are simple parts, but with a little care, you can make them last a lot longer — especially on off-road machines that work in dirt, mud, heat, and vibration.
- Follow your service schedule. Stick to the maintenance plan from the manufacturer.
- Keep electrical boxes clean and dry. Check your fuse/relay boxes often. Blow out dirt and dust, clean debris, and make sure the covers and seals are good. Moisture leads to electrical parts being bad.
- Check for tight connections. Machines vibrate all the time. Over time, relays and fuses can loosen in their sockets. Make sure everything is seated tightly.
- Take care of the battery. A weak battery causes unstable voltage, which puts extra stress on relays and electronics. Keep the battery terminals clean and tight.
- Fix electrical problems early. If you see flickering lights or weird electrical issues, don’t ignore them. Small problems can turn into big ones and damage parts like relays.
Get a New Fuel Pump Relay
As mentioned, it’s best to replace the fuel pump relay once you’ve confirmed it’s faulty. Putting off replacement can make the issues it’s causing worse, resulting in expensive repairs. High-quality aftermarket relays offer the same performance as OEM parts at a fraction of the cost, getting your machine back to work quickly. If you need a durable replacement, you can find the right fuel pump relay for your machine from FridayParts.
FAQs
Would a bad fuel pump relay cause a low-pressure read from the fuel pump?
Yes, absolutely. A relay that’s starting to go bad can lower your fuel pressure. If the little metal contacts inside the relay get corroded or burned, they cause extra resistance. The voltage drop so your fuel pump doesn’t get the full 12 volts it needs to run at full speed. A slower pump means less pressure. This will make your engine run poorly ong before the relay dies completely.
How do I know if my fuel pump relay is bad versus the actual fuel pump?
This is a really common question. The way you figure it out is simple elimination:
First, check the fuel pump fuse. If it’s blown, replace it. If it blows right again, you’ve got a short somewhere that needs more checking.
Next, listen for the pump: Turn the key to the ON position and listen for a hum from the pump.
- No sound at all. This almost always means no power is getting to the pump. The most likely causes are the fuel pump relay or bad wiring. Do the relay test I showed you earlier. If the machine starts after that, you found the problem.
- You hear the pump running. If you hear it, but the engine still won’t start or runs rough, the relay is probably fine. The issue is more likely: the fuel pump itself (worn out, not making enough pressure), a really clogged fuel filter, or a problem in the fuel lines.
Can a faulty fuel pump relay cause my machine not to start?
Yes. It’s actually one of the most common reasons for a “cranks but won’t start” issue on any vehicle or machine with an electric fuel pump. A completely failed relay is just like a broken switch — it cuts all power to the fuel pump. With no power, the pump can’t send fuel to the engine, so it won’t start at all.
