When an off-road machine starts losing power, running hot, or feeling “off” under load, we often blame the engine or the transmission first. But a failing torque converter can create the same headaches—and if we keep working through it, we can turn a manageable repair into a full drivetrain teardown. In this guide, we’ll show the 8 most common bad torque converter symptoms, what they usually mean in real jobs (loaders, dozers, telehandlers, forklifts, backhoes), and how we can confirm the cause before we buy parts.
What Does a Torque Converter Do?
A torque converter is a hydraulic coupling that sits between the engine and the transmission. It bolts to the engine side through the flywheel area and takes power from the engine’s crankshaft, then sends that power into the transmission using fluid flow rather than a dry clutch.

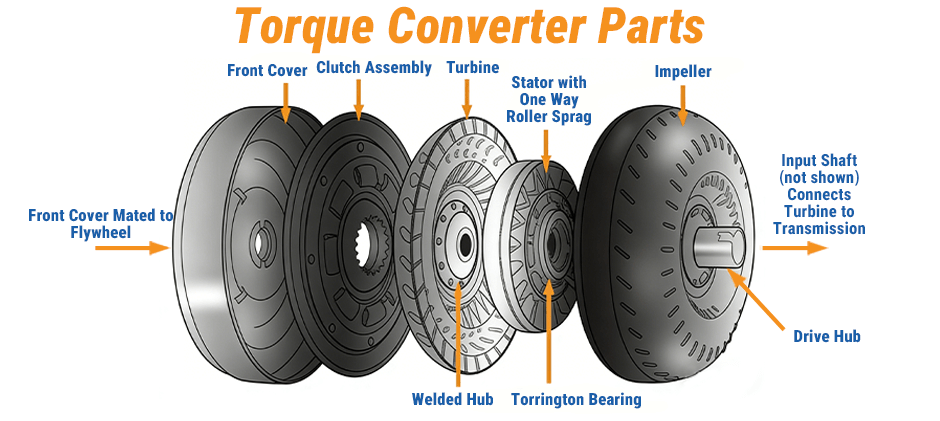

If we look at the converter as a set of “working zones,” we’ll usually hear these internal parts named:
- Front cover (housing): the shell that ties the converter to the engine side
- Impeller (pump): driven by the engine; throws fluid outward
- Turbine: receives fluid energy and turns the transmission input side
- Stator: redirects fluid between the impeller and the turbine to help torque multiplication
- Lockup clutch (on many systems): helps reduce slip once conditions are right
In off-road work, the converter also helps smooth shock loads. At low engine speed, it transmits limited torque—one reason a machine can idle on a slope with only light braking. As load changes, the converter “adjusts” turbine speed by fluid action, helping the machine move through soft ground or heavy piles without hammering the drivetrain.
8 Symptoms of a Bad Torque Converter
Below are the symptoms we see most often on machines that use a converter-style drive (common across many loaders, forklifts, crawler tractors, telehandlers, and similar equipment). The tricky part: several of these can also come from the transmission, the cooling system, or the hydraulic supply that feeds the converter. So we’ll pair each symptom with a quick “what to check next.”
Quick symptom map
| Symptom | What we notice in the cab | Common “next checks.” |
|---|---|---|
| Overheating | Trans temp climbs fast under normal work | Fluid level/condition, cooler flow, fan/radiator, converter outlet pressure |
| Drive power loss (under load) | Weak push into pile; bogs early | Engine health, clogged filters, low converter charge pressure, internal leakage |
| Surging/hunting | Pull comes and goes; speed won’t hold | Erratic pressure/flow, aerated oil, failing charge/pressure control, slipping clutch |
| Delayed engagement | Long pause before moving after selecting the gear | Low charge pressure, drain-back, worn seals, and pump supply issues |
| Shudder/vibration | Feels like rumble during pull or transition | Contaminated oil, clutch issues, internal wear, misalignment/imbalance |
| Abnormal noises | Whine/grind in gear, changes with RPM | Bearing wear, damaged splines, cavitation from low supply |
| Fluid contamination | Dark/burnt smell, metal or friction debris | Converter internal wear, overheated oil, and downstream damage risk |
| Oil leaks + repeat low pressure | Frequent top-offs, loss of performance | Seal damage from heat, cracked lines, cooler leaks, converter hub/seal area |
1) Transmission or converter overheating
Overheating is a top indicator because heat is both a symptom and a cause. When converter oil gets too hot, viscosity drops, seals harden, lubrication falls off, and small leaks become big ones. In the field, that looks like:
- The temperature climbs faster than normal during routine work
- The machine feels less responsive as the shift goes on
- We smell hot oil or see oil darken quickly after service
Why it points to a converter: converter slip creates heat by design—so if internal leakage increases (worn seal rings, internal wear gaps), we get extra slip and extra heat.
What we should check right away
- Correct fluid type and condition (wrong or degraded oil can overheat faster)
- Cooling system function (blocked cooler, weak airflow, debris-packed radiator stack)
- Converter oil pressure vs spec (low outlet pressure can indicate supply or internal leakage)
From the catalog guidance provided, common overheating causes include insufficient hydraulic pump supply, cooling system malfunction, low converter oil pressure, degraded oil type, and abnormal wear.
2) Off-road drive power loss
This is the complaint that costs money: the machine still “moves,” but it doesn’t work. We’ll notice it when we:
- Hit the pile and stall sooner than we used to
- Need higher RPM for the same travel effort
- Lose climbing ability on grades that were easy before
- Feel like the machine is “slipping” without a clear gear change
Why it can be a bad converter: internal fluid leakage reduces the torque that reaches the turbine. Worn seal rings on the turbine shaft or leakage at guide vane/stator areas can dump pressure internally instead of driving torque.
Don’t skip this note: power-loss symptoms can look exactly like a transmission issue. If we guess wrong and keep working, debris and heat can travel through the system and damage more parts.
3) Surging and lagging
Surging is when the machine can’t hold steady pull, travel speed, or lift-and-carry pace—even though our throttle input is steady. It can feel like:
- A cycle of strong pull → weak pull → strong pull
- A “rubber band” response when trying to maintain speed into a pile
- Unstable travel when pushing or carrying loads
Why it can be converter-related: erratic converter pressure or flow. A converter that intermittently “grabs” and then slips can create unpredictable output.
What else can cause it?
- Aerated fluid (foaming) from low oil, suction leaks, or poor return flow
- Pressure regulation issues in the control circuit
- A supply problem upstream
This is a good transition point because it connects the converter to the supply side: if pressure and flow are unstable, we need to look beyond the converter itself.
4) Slow or delayed engagement
If we select direction (or gear range) and the machine takes too long to respond, we’re often seeing a charge pressure delay. Typical signs:
- Long pause before the machine starts to roll
- Needs extra throttle to “catch.”
- Gets worse when hot
Why it can be a converter problem: internal drain-back or sealing issues can prevent pressure from building quickly where it needs to.
But here’s the key: the converter does not make pressure on its own—the system that feeds it matters. If the charge circuit is weak, the converter will act weakly.
That’s why, when engagement delay shows up with other symptoms, checking the transmission pump (charge supply) becomes part of a smart diagnosis—not an afterthought.
5) Shuddering or heavy vibration under load
A shudder is not the same as general machine vibration from tires, tracks, or rough ground. Converter-related shudder tends to be:
- RPM-related and repeatable
- Worse during certain transitions (load changes, speed changes)
- Strong enough to feel through the seat and controls
What it can mean
- Internal wear is causing uneven flow or unstable clutch action
- Heat-damaged or contaminated oil affecting friction behavior
- Mechanical issues (misalignment/imbalance), depending on design
If we feel shudder plus overheating, we should treat it as “stop-and-check” territory—not “finish the job and deal with it later.”
6) Strange noises: whine, grind, or metallic sounds
Noises are valuable clues because they often narrow the problem to rotating internals:
- Whining that tracks engine RPM can point to bearing wear or fluid cavitation
- Grinding can suggest internal contact, damaged bearings, or hard-part wear
- Noise that changes between neutral and in-gear can help isolate load-related components
What to check
- Fluid level (low level can cause aeration/cavitation noise)
- Filter condition and restriction indicators
- Metal in filters or screens (if service access allows)
If noise appears along with contaminated oil, we’re likely past “monitor it” and into “plan a repair.”
7) Contaminated or burnt transmission fluid
If we pull a sample or inspect oil during service and see:
- Burnt odor
- Darkened oil soon after a change
- Fine metallic material or friction debris
We need to take it seriously. Converter internal wear can shed material that circulates through the transmission and valves, and that spread is how one failing unit can lead to several failing units.
Practical tip: if we suspect converter damage, cutting open the filter (where applicable) and checking for glitter or debris can give fast evidence without guessing.
8) Oil leaks + repeat low pressure
Leaks matter for two reasons: oil loss and pressure loss. And pressure is what makes the converter flow do useful work.
Common leak patterns tied to converter trouble include:
- Seal damage after repeated overheating
- Hose/line issues at cooler circuits
- Seepage that becomes a steady drip as the oil thins when hot
If we’re topping off often, we’re not only losing oil—we’re also risking aeration, heat rise, and unstable charge pressure.
How to Fix Your Torque Converter Problems?
The best fix is the one that targets the real cause. Since converter symptoms overlap with transmission faults, we want a step-by-step plan that avoids “parts darts.”
Step 1: Confirm it’s not a basic fluid/cooling issue
Before we call it a bad torque converter, we should verify:
- Correct fluid type and proper level
- No obvious suction leaks or return restrictions
- Cooler and radiator stack are clean and flowing air
- No kinked cooler lines or blocked cooler passages
If overheating was the first symptom, this step alone can prevent repeat failures.
Step 2: Check charge supply and pressure
Because the converter relies on oil flow and pressure, a weak charge circuit can mimic converter failure.
If the machine’s specs and test ports allow it, a qualified tech can:
- Measure the converter charge pressure and compare it to the spec
- Check the converter outlet pressure relative to the main pressure valve setting
- Use diagnostic tools to isolate where the pressure drops
If the charge supply is low, we may be looking at a worn or failing transmission pump or a control issue upstream.
Step 3: Decide whether repair or replacement makes sense
In many off-road machines, replacing the converter is more common than rebuilding in the field, mainly because:
- Internal damage is hard to verify without a teardown
- Contamination risk is high
- Labor to remove and reinstall is the high cost, so we want the fix to last
If testing and oil evidence point to converter failure, sourcing a correct-fit unit matters. For selection across many heavy equipment brands and equipment types (loaders, forklifts, crawler tractors, telehandlers, bulldozers), we can shop by part number and application here: torque converter.
Step 4: Don’t replace a converter in a dirty system
If the old oil is burnt or contaminated, installing a new converter without cleaning the system can ruin the new unit fast.
A “fix it once” approach often includes:
- Flushing or cleaning cooler circuits as recommended by the service guide
- Replacing filters and cleaning screens
- Inspecting valves/lines for debris
- Checking related wear items in the drivetrain
For broader components that support the converter and transmission system—bearings, clutch discs, couplings, seals, and more—this category helps when we’re building a complete repair list: transmission parts.
Step 5: Re-test after repair
After parts are replaced and fluid is serviced, we should verify:
- Operating temperature under a normal duty cycle
- Stable engagement and pull
- Pressure readings (if test points are available)
If temperatures still climb fast, we go back to airflow, cooler flow, and supply pressure—because repeated overheating will kill even a brand-new converter.]
Conclusion
