The exhaust system is hidden at the bottom of the equipment, making it neither visible nor easily overlooked. But the exhaust system is a vital network of components. It affects the performance of the machine, fuel efficiency and compliance with regulatory requirements. Get familiar with exhaust system components and you’ll be better to troubleshoot any issues that arise.
Exhaust System Parts

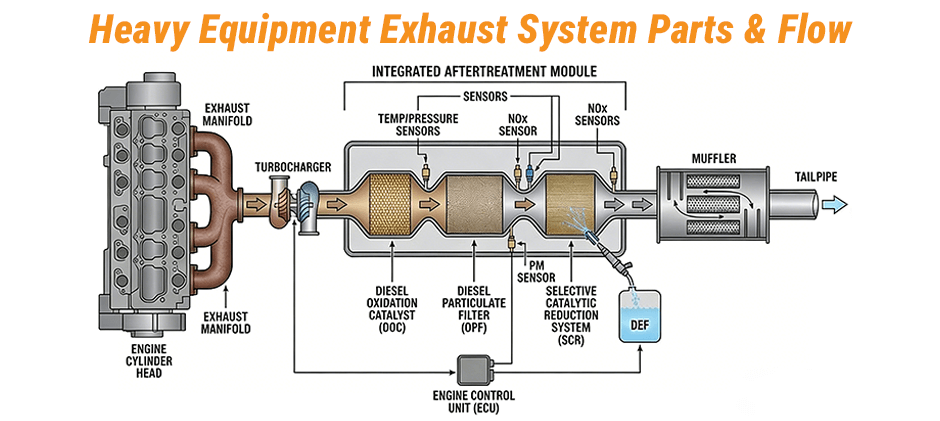

Modern heavy equipment no longer uses just a simple pipe and muffler. Emissions rules like Tier 4 Final have turned today’s exhaust systems into complex after-treatment systems. Let’s follow the exhaust gas from the engine and see which parts it passes through.

Exhaust Manifold
Exhaust begins at the exhaust manifold. It mounts directly to the engine cylinder head and collects the high-temperature exhaust gases from each cylinder into a single exhaust flow.
In the case of a V engine, there will generally be two exhaust manifolds. One on each side of each row of cylinders. Because it is subjected to high temperatures for a long time, it is usually made of heat-resistant materials such as cast iron or stainless steel.
Turbocharger
For most diesel engines, the exhaust manifold is directly connected to the turbocharger, rather than to the exhaust pipe. The exhaust gas drives the turbine to rotate, which in turn drives the compressor, pressing more air into the engine. This way, more air is introduced, and more combustion is achieved. So the turbine is a very important core component in both the engine intake system and the exhaust system.
The Emissions After-Treatment System
After the exhaust leaves the turbocharger, it enters the most complex part of the system—the integrated aftertreatment module, where the system treats the most harmful emissions.
- Diesel Oxidation Catalyst (DOC): DOC is a device coated with metals such as platinum and palladium that allows exhaust gases to react as they pass through. When the exhaust gas flows through the honeycomb structure, a chemical reaction occurs, converting harmful carbon monoxide and unburned fuel gas into carbon dioxide and water. It turns “harmful gases into relatively harmless gases” while also providing heat to the system behind.
- Diesel particulate filter (DPF): The DPF’s job is to catch smoke and dust. The exhaust gas must pass through the porous structure inside the filter, and soot particles are trapped. Over time, the smoke will accumulate more and more, so the system will “regenerate” and burn the smoke at high temperatures to turn it into ash and discharge it. This is also the component that is most likely to clog and cause problems.
- Selective Catalytic Reduction System (SCR): SCR primarily deals with nitrogen oxides (NOx). The system will spray DEF (urea liquid) into the exhaust gas, convert it into ammonia gas at high temperature, and then react with NOx in the catalyst to turn the harmful gas into nitrogen and water. The polluting gas “chemical conversion” is turned into harmless components already in the air.
Sensors
A modern exhaust system is run by a set of sensors. They send nonstop data to the Engine Control Unit (ECU). Here are the main ones:
- Temperature and Pressure Sensors: Mounted before and after key parts like the DPF and SCR. They check the parts’ condition and start regeneration or DEF injection when needed.
- NOx Sensors: Placed before and after the SCR system. They measure how well the SCR works and make sure it’s cutting NOx levels properly.
- Particulate Matter (PM) Sensor: Some systems have this sensor after the DPF. It makes sure the DPF isn’t cracked or broken.
Muffler and Tailpipe
After the exhaust gas has been subjected to a post-treatment system “purification”, it finally enters the muffler. A muffler is a noise reduction device. Inside, it is a cavity structure and porous pipes. Cut out the loud noise of the engine and make the sound less harsh.
Then the system releases the treated, quieter exhaust through the tailpipe, completing the exhaust process.
How Does the Exhaust System Work?
Now that we’ve gone over all these parts, let’s walk through how exhaust gas moves through the whole system step by step.
- When the engine is running, hot exhaust gas comes out of the cylinders and gathered by the exhaust manifold.
- The gas spins the turbocharger, which forces more air into the engine for more power.
- Next, the gas enters the after-treatment system. First, it passes through the DOC, which breaks down carbon monoxide and unburned gases.
- Then the gas goes into the DPF, where soot and particulate matter are trapped. Sensors check how clogged the DPF is, and the system automatically starts regeneration to clean it when it’s full.
- After the DPF, the system sprays DEF into the exhaust gas.
- The mixture then enters the SCR, which converts NOₓ into harmless nitrogen and water.
- The cleaned exhaust gas moves to the muffler to reduce noise.
- Finally, it’s released from the machine through the tailpipe.
Almost the entire process runs automatically. Sensors monitor the system’s status in real time, and the ECU controls fuel injection, regeneration and DEF spray volume on its own, keeping the exhaust system running steadily.
Potential Exhaust Problems To Look Out For
Exhaust Leaks
A cracked manifold or faulty gasket causes leaks. You’ll usually hear a tick or hiss, which gets louder under load. Besides the noise, leaks before the turbo directly reduce power. What’s more dangerous: exhaust may get into the cab, leading to the risk of carbon monoxide poisoning.
Clogged DPF / Regeneration Failure
If the machine runs at low temperatures or under light load, the DPF can’t burn soot completely. Common signs: frequent warnings, reduced power (derate mode). In severe cases, the DPF clogs fully and the machine may stop working.
SCR System Malfunctions
The dashboard often shows warnings like poor DEF quality, low DEF level or SCR fault. If you keep operating, the ECU will limit engine power—even prevent startup in serious cases. Common causes: bad DEF, faulty injectors or broken NOx sensors.
Defective Sensors
A single faulty temperature or pressure sensor can mess up the whole system. It may cause unnecessary regeneration, incorrect DEF injection, or even immediate derate mode.
Physical Damage
Rocks, debris and rough terrain easily dent pipes, break hangers or crack components. A rattle or clunk under the machine usually means a loose or broken hanger—fix it right away.
