When an off-road machine starts to hesitate, surge, idle roughly, or drop into limp mode, we often blame fuel or hydraulics first. But a drifting or out-of-sync throttle position sensor can cause the same headaches—because the controller can’t match “operator demand” to fuel delivery. In this guide, we’ll explain what a TPS does on heavy equipment, where it usually sits, and how we can reset (relearn) it safely—plus what to do when a reset isn’t enough.
What is a Throttle Position Sensor?
A throttle position sensor (TPS) is a type of position sensor that tells the ECU/ECM how far the throttle is opened (or what the throttle actuator is doing). On off-road machinery, that signal helps the controller manage:
- Fuel delivery (especially during quick load changes)
- Engine speed control (idle to working RPM)
- Smoke and emissions strategy (where applicable)
- Machine response and safety logic (derate/limp mode when inputs disagree)
Modern heavy equipment depends on a network of sensor inputs so the controller can make fast, correct decisions. A position sensor is used anywhere the system must “know the position” of a part—throttle/pedal demand, gear selector, cam/crank timing signals, linkages, and more. When the controller doesn’t trust that position signal, it protects the machine—often by limiting power.
TPS vs. APS
On many machines, throttle control is not just one sensor:
- APS (Accelerator/Pedal Position Sensor) measures what we request (pedal or hand throttle input).
- TPS (Throttle Position Sensor) measures what the throttle body/actuator actually does (or the throttle command position on certain systems).
If these signals don’t agree (or one is noisy), the ECU may set a fault and reduce power. Resetting is basically telling the controller, “relearn what closed throttle and full throttle look like.”
Common signs your TPS may need a reset—or at least a check
A reset is most useful after service work or when readings drift. Symptoms we often see on off-road equipment include:
- delayed response when we apply the throttle
- unstable idle or idle that hunts
- surging at a steady RPM
- intermittent limp mode during work
- fault codes related to “throttle position,” “accelerator position,” “range,” or “circuit high/low.”
If symptoms are severe, repeat quickly, or appear with wiring faults, we should treat a reset as one step in diagnosis—not the final fix.

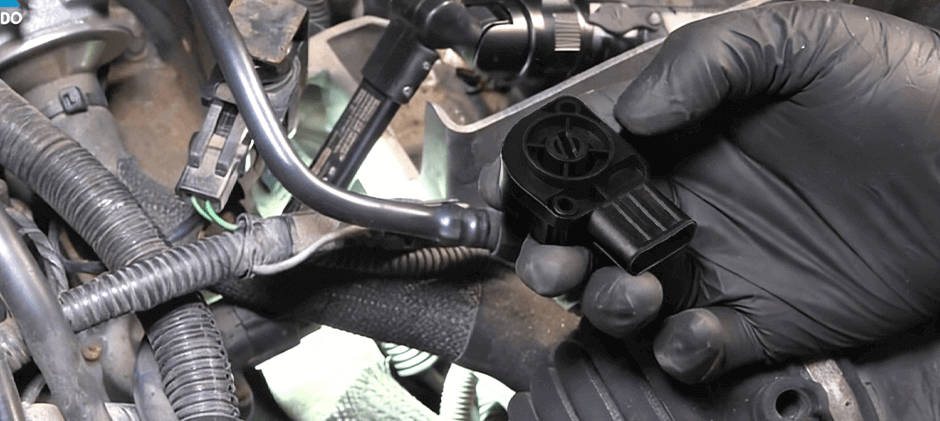

Where is the Throttle Position Sensor Located?
TPS location depends on whether the machine uses a cable throttle, a governor lever, or electronic throttle control. On off-road machinery, we commonly find the throttle position sensor in one of these places:
1) On the throttle body/intake side
Many engines use a throttle body or an intake actuator. In these setups, the TPS is typically mounted on or integrated into the throttle body assembly so it can read the throttle plate/actuator angle.
How do we find it quickly?
- Follow the intake ducting to the throttle body area
- Look for an electrical connector on the throttle assembly
- Identify a sensor housing mounted with screws/bolts or built into the actuator module
2) On the injection pump/governor linkage
Some machines use a lever/linkage arrangement where the ECU still needs position feedback. In these cases, a position sensor may be mounted to read lever movement.
3) At the pedal or hand throttle
If the machine is drive-by-wire, the pedal/hand throttle usually has an accelerator position sensor. People call it a TPS by habit, but it’s measuring demand, not throttle plate angle. It still may require a relearn after replacement.
Practical tip: verify by function, not by name
Before we reset anything, we should confirm whether we’re dealing with:
- TPS (actual throttle angle/actuator position), or
- APS (operator input position)
The reset process can be similar, but diagnostics and failure modes differ.
How to Reset the Throttle Position Sensor?
This is the core section—and the most important point is that there is no universal reset procedure across all off-road machinery. Some machines need a scan tool “calibration,” others support a key-on/pedal sequence, and some require an idle relearn after battery power is removed.
Below is a safe, equipment-friendly process we can use as a framework, plus options depending on what tools we have.
Before we reset: quick safety + setup checklist
- Park on level ground, apply the parking brake, and lower attachments.
- Warm the machine if the service procedure requires it (many relearns are more stable at operating temperature).
- Turn off high electrical loads (lights, HVAC blower, auxiliaries) to keep voltage stable.
- Inspect basics first:
- battery voltage and terminals
- TPS/APS connector fully seated
- harness not rubbed through near the engine or articulation points
If we skip these, a reset may “work” for one cycle and fail again due to low voltage or an intermittent connection.
Method A: Reset/Relearn with a diagnostic tool
For many off-road machines, the correct reset is a commanded calibration through diagnostics (often labeled as TPS calibration, ETC relearn, or idle/throttle learn).
General steps:
- Connect the diagnostic tool to the service port.
- Enter the engine controller menu.
- Select throttle calibration/accelerator pedal learn/idle learn (naming varies).
- Follow prompts (key on/off, pedal positions, wait periods).
- Clear codes, then run the engine and verify live data.
Why we prefer this method:
- The ECU confirms it accepted the new values
- It reduces guesswork
- It’s easier to catch a bad sensor because live data won’t stabilize
If we suspect the machine relies heavily on electronic throttle control, we should start here.
Method B: Key ON / Engine OFF throttle sweep
Some machines allow a basic relearn without a scan tool. The idea is to let the ECU see the full range from closed to wide open.
Generic sequence:
- Key ON (engine OFF). Wait until gauges and warning lamps finish their initial cycle.
- Slowly move throttle input from idle to full (pedal or hand throttle), then back to idle.
- Repeat 2–3 times smoothly (no rapid pumping).
- Key OFF and wait 10–30 seconds.
- Start and let the idle stabilize for a few minutes without touching the throttle.
What “success” looks like:
- Sstable idle
- Smoother response
- No immediate throttle-related fault codes returning
Important: If the machine has a safety interlock (seat switch, neutral switch, hydraulic lockout), follow the proper conditions, or the ECU may ignore the learn routine.
Method C: Battery power reset
Disconnecting battery power can clear learned values on some systems, but it’s not always the right move on modern equipment. Still, when we’ve replaced a sensor and the controller seems “stuck,” it can help—if the OEM procedure allows it.
Generic, cautious approach:
- Key OFF. Wait for ECU shutdown (some machines need a few minutes).
- Disconnect the negative battery cable.
- Wait 10–15 minutes.
- Reconnect securely.
- Perform Method B throttle sweep (if supported).
- Start and idle until stable; then test under light load.
When we should NOT do this:
- When the OEM warns against it
- When the machine has critical settings that can be lost without a proper procedure
- When the real problem is wiring damage (battery resets won’t fix that)
After the reset: verify with a simple functional test
To reduce repeat downtime, we should confirm the system is behaving normally:
- Check idle stability for 2–3 minutes
- Slowly raise RPM and hold steady (no surging)
- Operate under light load (avoid full production load until stable)
- If available, verify live data:
- TPS percentage changes smoothly
- APS percentage changes smoothly
- no sudden dropouts or jumps
If the reset “takes” but the problem returns under vibration/heat, that points to wiring, connector tension, or internal sensor failure.
Quick Decision Table: Reset vs. Repair
| Situation we see | Reset likely to help? | What we should do |
|---|---|---|
| TPS/APS was replaced | Yes | Perform calibration/relearn (prefer scan tool) |
| Throttle body/inlet actuator was cleaned/removed | Yes | Reset + idle learn; confirm smooth % sweep |
| Intermittent limp mode + “signal high/low” codes | Sometimes | Inspect wiring/connector first; reset after repairs |
| Surging + noisy live signal (jumps) | Unlikely | Replace the sensor or repair the harness; reset afterward |
| No start / hard start tied to crank/cam codes | No | Diagnose the crank/cam position sensor circuit instead |
If our diagnosis shows the throttle position sensor is failing (dead spots, unstable signal, repeat codes), replacement is usually more cost-effective than repeated resets. When shopping, matching the correct part number matters because position sensors are used for throttle/accelerator, gear, and cam/crank signals across many machines. A good starting point is the position sensor category, where listings are organized by part number and application.
Throttle Position Sensor Maintenance Tips
Resetting helps only when the sensor is healthy, and the ECU just needs a clean reference. To cut repeat issues, we should maintain the throttle input system like any other high-impact control circuit.
1) Keep connectors clean, dry, and tight
A lot of “TPS failures” are actually connector problems:
- Loose pins
- Corrosion from washdown or humidity
- Harness strain near engine vibration points
What we can do:
- Inspect and reseat connectors during routine service
- Make sure harness clips are in place (no dangling wires)
- Avoid pulling on wires when disconnecting
2) Protect wiring from abrasion and heat
Off-road machines see constant vibration and movement. We should watch for:
- Rubbing near the intake piping or brackets
- Pinch points at articulation joints
- Heat damage near turbo/exhaust paths (where applicable)
3) Don’t ignore early symptoms
If we wait until limp mode becomes frequent, we often create secondary issues (rough operation, extra soot, poor productivity). When we notice:
- Hesitation
- Unstable idle
4) Service the throttle path correctly
If the system uses a throttle body/actuator:
- Follow OEM cleaning guidance
- Don’t force the throttle plate by hand unless the service manual allows it (some actuators can be damaged)
5) Use sensors that match the application
Position sensors are not interchangeable just because the plugs look similar. Off-road machinery uses many types—oil pressure, speed pickup, fuel level, temperature, throttle/accelerator, and more. If we’re sourcing replacements across a fleet, browsing a broad sensor catalog can help us match by function and equipment type while keeping compatibility in mind.
Conclusion
A throttle position sensor reset is a practical step after sensor replacement, throttle service, or when the ECU loses its learned reference. The safest path is a scan-tool calibration, followed by a simple verification test. If symptoms return—especially with “signal high/low” codes or jumpy readings—resetting won’t fix a worn sensor or damaged wiring. As an aftermarket parts supplier, FridayParts offers high-quality products at affordable prices, a vast inventory, and wide compatibility for many heavy equipment brands.
