When winter hits and you need your sub-compact tractor to clear snow, move materials, or maintain your property in icy conditions, proper traction becomes critical. Tire chains are the most effective traction aid for sub-compacts, but choosing the right chains, installing them correctly, and understanding alternatives makes the difference between safe, productive work and dangerous frustration.
This comprehensive guide covers everything you need to know about tire chains and snow traction for sub-compact tractors, including John Deere 1 Series, Kubota BX series, Kioti CS series, Mahindra eMax series, and similar machines in the 20-25 horsepower range. We’ll walk through chain types, sizing, installation, operating tips, and alternative traction solutions.

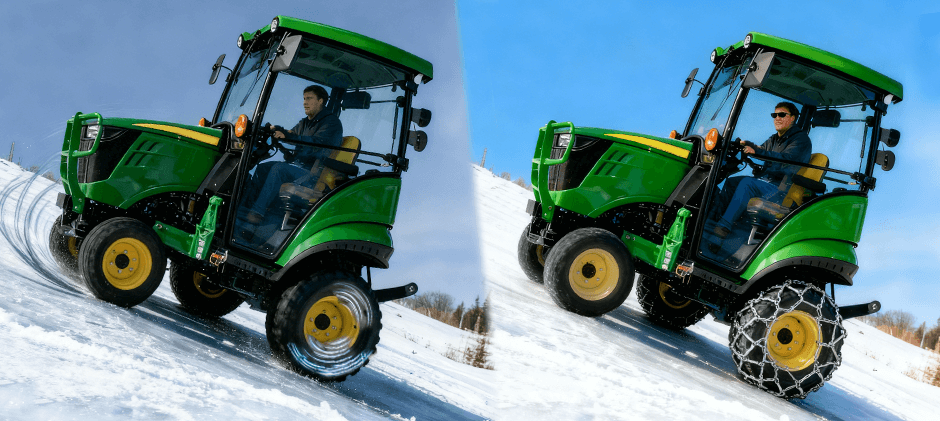

Why Sub-Compacts Need Traction Aids in Winter
Sub-compact tractors face unique traction challenges in winter conditions. These machines are light—typically 1,200-1,800 pounds depending on model and configuration. That light weight is great for turf protection and maneuverability, but it’s a liability on snow and ice, where traction depends on weight pressing tires against the surface.
Add a front-mounted snowblower, and the traction challenge intensifies. The blower adds 200-400 pounds to the front, shifting weight forward and reducing rear wheel weight even further. You need that weight on the rear wheels for traction to push the machine forward while the blower works.
Most sub-compacts come with R4 industrial tires or turf tires—neither designed for snow traction. R4 tires have shallow lugs that pack with snow and provide minimal grip on ice. Turf tires are even worse with their shallow tread pattern optimized for lawn protection, not winter traction. Without traction aids, these tires spin uselessly on even modest slopes or in a few inches of snow.
Tire chains solve this problem by providing mechanical grip that bites through snow into underlying surfaces. They create traction independent of tire tread pattern or weight, allowing your lightweight sub-compact to work effectively in conditions where it would otherwise be helpless.
Types of Tire Chains for Sub-Compact Tractors
Several types of tire chains and traction devices are available for sub-compact tractors. Understanding the differences helps you choose the right option for your conditions and applications.
Two-Link Spacing Chains
Two-link spacing chains (also called 2-space or highway chains) have cross-chains spaced every two side chain links. This creates moderate traction with relatively even tire wear and a smoother ride than more aggressive chains. Two-link chains work well for light snow, plowed surfaces, and occasional winter use.
The advantage of two-link chains is their versatility—they provide enough traction for most winter work without being overly aggressive. They’re easier on driveways and turf, cause less vibration than tighter spacing chains, and cost less. The disadvantage is reduced traction in deep snow, ice, or steep slopes compared to more aggressive patterns.
Two-link chains are a good choice if you’re primarily clearing already-plowed driveways, working on relatively flat terrain, or doing occasional winter chores rather than serious snow removal work.
Four-Link Spacing Chains (Ladder Chains)
Four-link spacing chains have cross-chains every four side chain links, creating larger gaps between cross-chains. This “ladder” pattern provides minimal traction and is generally not recommended for sub-compact tractors in winter conditions. These chains are more appropriate for occasional light snow on large agricultural tractors, where weight provides most of the traction.
For sub-compacts that need every traction advantage, skip four-link chains and go with tighter spacing options.
H-Pattern and Diamond Chains
H-pattern and diamond chains have additional diagonal cross-chains, creating a tighter pattern with more metal contacting the ground. They have a cross-chain every two links plus a diagonal cross-chain, creating an “H” shape. Diamond chains have a fully diagonal pattern resembling diamonds.
These aggressive patterns provide excellent traction in deep snow, on ice, and on slopes. They bite harder into packed snow and ice, giving you maximum pulling power and control. The trade-offs are higher cost, more vibration, rougher ride, and more aggressive surface contact that can damage asphalt or concrete if you’re not careful.
H-pattern and diamond chains are the right choice for serious snow removal, steep terrain, icy conditions, or operating in deep snow where you need maximum traction. If you live in a region with heavy snowfall and your tractor is primarily a snow removal machine all winter, invest in aggressive chains.
Studded Chains
Studded chains have hardened steel studs welded or attached to the cross-chains. These studs bite into ice, providing exceptional traction in the most difficult conditions. Studded chains are the gold standard for ice traction, especially on slopes or when operating on frozen surfaces.
The downsides are high cost (2-3 times the price of non-studded chains), aggressive surface damage (they’ll tear up asphalt and concrete), and they’re noisy. Studded chains are overkill for most sub-compact operators unless you face extreme ice conditions regularly.
V-Bar Chains
V-bar chains have reinforced cross-chains with a V-shaped profile that digs aggressively into snow and ice. They provide traction intermediate between standard chains and studded chains—better than flat cross-chains but not as aggressive as studs. V-bar chains are excellent for icy conditions and packed snow while being less damaging to surfaces than studded chains.
V-bar chains are a good middle-ground choice if you need better ice traction than standard chains but don’t want the cost or surface damage of studded chains.
Sizing Tire Chains for Your Sub-Compact
Proper chain sizing is critical for performance and safety. Chains that are too large slide around on the tire, tangle, and damage fenders or hydraulic lines. Chains that are too small don’t fit at all or stretch and break under load.
Finding Your Tire Size
Your tire size is molded into the tire sidewall. Sub-compact rear tire sizes typically look like one of these formats:
- 26×12.00-12 (26″ diameter, 12″ wide, 12″ rim)
- 12-16.5 (12″ wide, 16.5″ rim diameter)
- 23×10.50-12 (23″ diameter, 10.5″ wide, 12″ rim)
- R4: 25×8.50-12 or similar
Front tires are smaller, typically:
- 18×8.50-8
- 20×10.00-8
- 23×8.50-12
You need chains for the rear tires (drive wheels) at a minimum. Front tire chains help with steering and downhill control, but aren’t required for basic traction.
Chain Size Specifications
Tire chain manufacturers list compatible tire sizes for each chain model. Match your tire size exactly to the chain specifications. If your exact tire size isn’t listed, look for chains that fit a range including your size.
Chain sizes are designated by letters and numbers that indicate the chain dimensions. For example, a chain listed as “2-link, 12-16.5” fits tires that are 12 inches wide on 16.5-inch rims with two-link spacing.
Common sub-compact rear tire chain sizes:
| Tire Size | Common Chain Size | Pattern Options |
|---|---|---|
| 26×12.00-12 | 26×12.00-12 | 2-link, H-pattern |
| 25×12.00-9 | 25×12.00-9 | 2-link, V-bar |
| 23×10.50-12 | 23×10.50-12 | 2-link, H-pattern |
| 12-16.5 | 12-16.5 | 2-link, 4-link, V-bar |
| 27×8.50-15 (R4) | 27×8.50-15 | 2-link |
Measuring for Chains
If you can’t find your exact tire size in chain listings, measure your tire:
- Tire diameter – Measure from the ground to the top of the tire, then double it
- Tire width – Measure the width of the tire tread surface
- Rim diameter – The rim size is usually part of the tire designation
Provide these measurements to the chain supplier, and they can recommend the correct size. Some manufacturers offer adjustable chains with tensioning systems that fit a range of sizes—these work well if you have odd tire sizes or plan to use the chains on multiple machines.
Popular Tire Chain Brands and Models
Several manufacturers produce quality tire chains suitable for sub-compact tractors. Here are the most popular and reliable options.
Security Chain Company (SCC)
Security Chain Company is the largest tire chain manufacturer in North America, producing chains under multiple brand names, including Security Chain and Super Z. Their chains are widely available at farm stores, hardware retailers, and online.
For sub-compacts, look at their tractor tire chain line with 2-link spacing and H-pattern options. SCC chains are reasonably priced, readily available, and perform well for typical homeowner winter use.
TerraGrips
TerraGrips tire traction belts are an alternative to traditional chains. These are rubber belts with integrated steel studs that slip over your tire and secure with a cam-lock system. They’re easier to install than chains, create less vibration, and provide excellent traction.
TerraGrips work well for sub-compacts and are popular with operators who mount and remove traction devices frequently. They cost 2-3 times more than basic chains but offer significant convenience and performance advantages.
Peerless
Peerless produces agricultural tire chains, including models for sub-compact and compact tractors. Their chains feature durable construction and various tread patterns, including ladder, two-link, and diamond patterns. Peerless chains are mid-priced and widely available.
Laclede/Quality Chain
Laclede (now part of Quality Chain Corporation) manufactures heavy-duty tractor chains for agricultural and commercial use. Their chains are built tough for serious winter work. They cost more than economy chains but last longer and provide better traction.
For sub-compacts doing serious snow removal or operating in challenging terrain, Laclede chains are worth the investment.
Installing Tire Chains Properly
Proper installation ensures chains perform well and don’t damage your tractor. Follow these steps for correct installation.
Pre-Installation Preparation
Before installing chains, verify they’re the correct size and lay them out flat to remove twists and tangles. Check for damage—broken links, bent cross-chains, or damaged fasteners. Repair or replace damaged chains before installation.
Park the tractor on flat, firm ground. Don’t attempt to install chains on snow or ice where the tractor might slip. Engage the parking brake. If possible, position the tractor so you’re installing chains from the side rather than crawling under from behind.
Installation Steps
- Drape the chain over the tire – Center the chain on top of the tire with equal amounts hanging down both sides. The outside chain (with hooks and fasteners) should be on the outside of the tire.
- Connect the inside – Reach behind the tire and pull the inside chain ends together. Most chains connect with a hook and ring or two hooks. Connect them snugly but not tight—you’ll tighten after driving.
- Connect the outside – Pull the outside chain ends together and connect them. Again, snug but not tight. Some chains use cam-lock fasteners, others use hook-and-chain adjusters.
- Center the chains – Rotate the tire slightly and adjust the chains so cross-chains are evenly spaced around the tire with no bunching or gaps.
- Initial tightening – If your chains have adjustable fasteners, tighten them to remove excess slack, but leave a little looseness.
- Drive and re-tighten – Drive the tractor forward 20-30 feet, stop, and re-tighten the chains. Driving works the chains into position on the tire. Take up all slack and secure the fasteners. This second tightening is critical—chains will loosen as they seat onto the tire.
- Repeat for the second tire – Install and adjust chains on the second drive tire following the same process.
Checking Installation
After installing and tightening, visually inspect the chains. Cross-chains should be evenly spaced around the tire, side chains should run straight in the center of the tread, and there should be no loose slack. Spin each tire by hand and watch for chains catching on fenders, brake lines, hydraulic hoses, or frame components. Clearance should be at least 2 inches all around.
Drive slowly for the first few minutes and listen for unusual sounds—rattling, scraping, or banging indicate improper installation or clearance issues. Stop and investigate any unusual sounds immediately.
Operating with Tire Chains
Tire chains change how your tractor handles and require adjusted operating techniques for safe, effective use.
Speed Limitations
Never exceed 15 MPH with tire chains installed, and for sub-compact tractor winter work, keep speeds below 6-8 MPH. High speeds cause chains to whip, break, and damage the tractor. Chains also create significant vibration at higher speeds, which is uncomfortable and hard on driveline components.
For snow removal and winter property work, slow speeds are normal anyway. Work at 2-5 MPH for optimal traction and control.
Turning and Maneuvering
Chains reduce your turning radius slightly because they add width to the drive tires. Make wider turns to avoid scrubbing the chains sideways against the ground. Tight turns on hard surfaces wear chains quickly and can damage pavement.
When using a loader or snowblower, the front-heavy weight distribution means your rear tires (wearing chains) are lighter. This can cause the rear end to skip or slide during sharp turns. Make gradual turns and reduce speed when turning.
Surface Considerations
Tire chains damage asphalt, concrete, and decorative pavers if you’re not careful. The steel cross-chains gouge and scar these surfaces. If you must drive on pavement with chains, keep speeds very low and avoid sharp turns or sudden acceleration that cause chains to dig in.
On gravel drives, chains work perfectly—they bite through snow into gravel without damage. On turf and lawn areas, chains will tear up grass that’s not frozen solid, but on frozen ground, they cause minimal damage.
Traction Limits
Even with chains, physics still applies. If you don’t have adequate weight on the drive wheels, chains can only do so much. Don’t assume chains make your sub-compact invincible. Respect steep slopes, avoid side-hills that risk rollover, and don’t push into deep, heavy snow that can high-center the tractor.
Chains provide traction, not weight. Combine chains with proper ballast for best results.
Ballast and Weight for Winter Traction
Tire chains work best when combined with proper ballast. Weight presses tires (and chains) against the surface, creating the normal force that allows the chain lugs to bite and generate traction.
Rear Ballast Options
Liquid-filled tires provide excellent low-mounted ballast for winter use. Fill rear tires to 75% capacity with calcium chloride solution or RV antifreeze (never use automotive antifreeze). For typical sub-compact rear tires (25-27″ diameter), liquid fill adds 100-150 pounds per tire, or 200-300 pounds total. This weight is as low as possible, providing maximum stability.
Wheel weights bolt to the rear wheel hubs and add 40-60 pounds per wheel, depending on size. Two wheel weights add 80-120 pounds directly at the rear axle. Wheel weights are permanent installations that don’t interfere with other implements.
Suitcase weights mount to a rear weight bracket on the three-point hitch. These cast iron weights typically come in 40-45 pound blocks. Stack 4-6 weights (160-270 pounds) for good rear ballast when using a front-mount snowblower. The advantage is easy adjustment—add or remove weights as needed. The disadvantage is that they occupy the three-point hitch.
Rear-mounted ballast box is a home-made or commercial steel box that mounts to the three-point hitch and can be filled with concrete, sand, or weights. A well-built ballast box can hold 300-500 pounds of ballast positioned behind the rear axle for maximum counterweight effect against a front-mounted blower.
How Much Ballast?
For a sub-compact with front-mounted snowblower, target 200-400 pounds of rear ballast depending on blower weight. A lightweight single-stage blower (200 lbs) needs less rear ballast than a heavy two-stage model (400+ lbs).
Start with liquid-filled rear tires (200-300 lbs total). If you still experience rear wheel spin or front-end lifting, add suitcase weights or a ballast box. The goal is to keep all four tires on the ground with adequate weight on the rear wheels for traction.
Front Ballast
Some operators add front wheel weights or liquid fill to front tires when using rear implements or to improve overall stability. For snow removal with a front blower, you already have plenty of front weight—adding more isn’t necessary and makes steering heavy.
Alternatives to Tire Chains
If tire chains aren’t suitable for your situation, several alternatives provide winter traction improvement.
Loaded Tires
Liquid-filled tires provide dual benefits: weight for traction and extra puncture resistance. The liquid (calcium chloride solution or RV antifreeze) fills the tire about 75%, adding significant weight while still allowing air pressure for cushioning.
Loaded tires don’t provide the bite-through-snow traction of chains, but the added weight improves general traction substantially. They’re a good solution if you work primarily on relatively firm surfaces where weight matters more than mechanical grip.
Tire Studs
Individual tire studs can be installed in tractor tires to improve ice traction. These are similar to studs used in winter car tires, but larger. Installation requires drilling holes in the tire tread and inserting studs with a stud gun.
Tire studs provide excellent ice traction without the full commitment of chains. You can leave them installed all winter without removing them for non-snow work. The disadvantages are installation labor and cost, and they damage pavement like chains do.
Wheel Spacers with Dual Wheels
Some operators use wheel spacers to mount dual rear wheels (two wheels per side) for increased traction through more tire contact area and additional weight capacity. This allows mounting additional ballast while spreading the load.
Dual wheels are expensive (you need two additional tires and wheels) and wide, making the tractor difficult to maneuver in tight spaces. They’re more common on larger tractors in serious agricultural use.
Aggressive Tread Tires
Switching from R4 industrial or turf tires to R1 agricultural tires with deep, aggressive lugs improves snow traction substantially. R1 tires have 1-2 inch lugs that bite into snow better than shallow R4 treads.
The downside is R1 tires tear up turf badly, ride rough on pavement, and are noisy. If your sub-compact is a dedicated winter machine or primarily works in dirt anyway, R1 tires plus ballast might provide adequate traction without chains.
Storing and Maintaining Tire Chains
Proper storage and maintenance extend chain life and ensure they’re ready when you need them.
After-Use Cleaning
After each use, remove chains and spray them with water to remove salt, calcium chloride, and other corrosive materials. Let them dry completely before storage—wet chains rust rapidly. If chains are heavily contaminated with road salt or ice melt chemicals, wash them with soapy water, rinse, and dry.
Storage
Store chains in a dry location off the ground. Hanging them on hooks keeps them organized and allows air circulation. Don’t pile them on a concrete floor where moisture can cause rust. Some operators apply a light coat of oil or spray lubricant before storage to prevent rust.
Store chains untangled with connecting hardware intact, so they’re ready to install next time. Wrestling tangled chains in freezing weather is miserable—taking time to store them properly saves frustration later.
Inspection and Repair
Inspect chains periodically for wear and damage. Check for:
- Broken or cracked links
- Stretched side chains
- Bent or broken cross-chains
- Worn or damaged fasteners
- Excessive rust or corrosion
Replace damaged chains or repair them with replacement links and fasteners available from chain manufacturers. Don’t operate with damaged chains—they fail under load and can damage your tractor or cause loss of control.
Service Life
Quality tire chains last 5-10 years with proper care and moderate use. Aggressive patterns and studded chains wear faster, especially on pavement. Economy chains wear more quickly than heavy-duty models. Replace chains when links are worn thin, cross-chains are half their original thickness, or you have frequent breakage.
Safety Considerations
Winter tractor operation with tire chains requires extra attention to safety.
Slope Operations
Chains improve uphill and downhill traction but don’t change your tractor’s stability or rollover risk. Respect slope limits in your operator’s manual (typically 15 degrees or about 3:1 for sub-compacts). Side slopes are especially dangerous—avoid them regardless of traction aids.
When descending slopes, use low gear and engine braking. Don’t rely solely on brakes, especially on ice. Chains improve traction, but ice is still ice—plan for longer stopping distances.
Clearance Checks
Before each use, visually inspect chain clearance around tires. Snow and ice buildup can reduce clearance. Chains too loose from wear or improper tightening can snag on components. Walk around the tractor and verify that nothing contacts the chains.
Operating Limits
Don’t exceed recommended speeds with chains (6-8 MPH maximum for sub-compacts). Don’t assume chains make the tractor capable of more than it’s designed for. A sub-compact with chains is still a sub-compact—it’s not a four-wheel-drive SUV.
Watch for chain breakage. If you hear unusual noises or feel a sudden loss of traction, stop immediately and inspect. A broken chain can wrap around an axle, puncture a tire, or damage hydraulic lines.
Frequently Asked Questions
Do I need chains on all four tires?
For most sub-compact winter work, rear tire chains are sufficient—they’re the drive wheels that need traction. Front chains help with steering control and downhill braking, but aren’t required for basic snow removal and property work. If you operate on very steep terrain or ice, four-wheel chains improve safety and control.
Can I drive on pavement with tire chains?
You can, but minimize it. Chains damage asphalt and concrete with extended use or aggressive operation. If you must cross pavement, keep speeds very low (2-3 MPH) and avoid sharp turns or sudden acceleration. For frequent pavement operation, consider alternatives like loaded tires or aggressive tread tires instead of chains.
How tight should tire chains be?
Chains should be snug against the tire with minimal slack when properly installed and tensioned. After the initial installation, drive 20-30 feet and retighten—this second tightening removes slack as the chains seat onto the tire. During use, chains should not slap, rattle excessively, or shift position on the tire.
Will chains void my tractor warranty?
Using properly sized and installed tire chains appropriate for winter traction does not void tractor warranties. Damage caused by improperly installed chains (contact with hydraulic lines, for example) or operating beyond tractor limits would not be warranty-covered. Follow manufacturer recommendations and use common sense.
Can I use car tire chains on my tractor?
No. Automobile tire chains are designed for different tire dimensions, lighter-duty use, and higher speeds. They won’t fit tractor tires properly and lack the strength for tractor applications. Use chains specifically designed for tractor tires in your size range.
Tire chains are the most effective traction aid for sub-compact tractors in winter conditions. Choose the right type for your use, size them properly, install them correctly, and combine them with adequate ballast for safe, productive winter operation. FridayParts carries tractor parts and accessories to keep your sub-compact running right all year. From maintenance items to ballast solutions, we’ve got what you need at prices that make sense.
