Oil leaks from the valve cover gasket are common on tough off‑road equipment. But ignoring them can cause downtime and engine damage. This guide gives you a clear valve cover gasket replacement cost estimate and breaks down what affects the price.
How Much Does It Cost to Replace a Valve Gasket?
Replacing a valve cover gasket on off‑road machinery usually costs between $300 and over $3,000.The big difference in price mainly comes down to parts and labor—and for heavy equipment, labor is almost always the main cost.
Parts Cost
The valve cover gasket itself is pretty cheap. For common machines like excavators, loaders, and tractors, a good-quality aftermarket gasket normally runs between $50 and $200, depending on the engine size and the gasket material.
Sometimes the job gets more expensive. If the valve cover itself is damaged—many modern engines use plastic or composite covers that can warp or crack from high heat—you’ll have to replace the cover too, not just the gasket. That can easily add several hundred dollars to your parts bill.
Labor Cost
This is where costs change the most. Shop labor rates in North America are usually between $100 and $200 per hour. How long the job takes depends entirely on the engine design and how easy it is to reach the valve cover.
- An older tractor with a simple inline‑4 or inline‑6 engine may have the valve cover right on top, making the job quick at only 1–3 hours.
- A modern mid‑size excavator with a Tier 4 Final engine, however, may have the valve cover hidden under fuel injectors, complicated wiring, and emissions systems, making the job take 3–6 hours.
- For large machines like mining trucks or big dozers with V12 or V16 engines, the job is even more involved. These engines have two or more valve covers, and getting to them can take 8–12 hours or more.
To give you a better idea, we’ve broken down the estimated costs by the most common types of equipment.
| Equipment / Engine Type | Estimated Labor Hours | Estimated Total Cost |
|---|---|---|
| Compact Tractor / Skid Steer (Inline 4-Cyl) | 1 – 3 Hours | $250 – $700 |
| Mid-Size Excavator / Wheel Loader (Inline 6-Cyl) | 3 – 6 Hours | $500 – $1,400 |
| Large Dozer / Agricultural Harvester (V8 / V12) | 6 – 12+ Hours | $900 – $3,000+ |
Note: These are estimates. Prices can vary based on your location, the specific machine model, and the repair shop.
Price Factors For Replacing a Valve Cover Gasket
When you get a quote, these are the variables that determine the final price.
Engine Design and Accessibility
Older engines are simple in design. The valve cover is usually held by just a few bolts and is easy to reach. But modern compact excavators are different. The engine bay is very tight, with little space to work. Technicians often have to remove several parts first, like fuel lines, injector wiring, intake pipes, and sometimes even parts of the aftertreatment system. Just to reach the valve cover bolts. Every extra part removed means more time and more labor costs.
Number of Valve Covers
The engine configuration plays a huge role. An inline engine (like an I-4 or I-6) has one long cylinder head and one valve cover. A “V” engine (like a V8 or V12) has two separate cylinder heads and at least two valve covers. This immediately doubles the number of gaskets needed and often more than doubles the labor, as one side of the engine may be harder to access than the other.
Parts Choice: OEM vs. Aftermarket
You have a choice between Original Equipment Manufacturer (OEM) parts from the machine’s brand and high-quality aftermarket parts. OEM gaskets can be two to three times more expensive than their aftermarket counterparts. As an aftermarket parts supplier, we know that a top-tier aftermarket gasket can meet or exceed OEM specifications for a fraction of the cost, offering significant savings without compromising on quality or reliability.
“While You’re In There” Repairs
A good mechanic will usually suggest doing extra maintenance once they take the valve cover off. This is the perfect time to adjust the valves, check the fuel injectors and their seals, or look over the rocker arms to see if they’re worn out.
When we have the valve cover off, we’re looking at the heart of the engine’s top end. Spending an extra hour to adjust the valves at this stage is a smart investment. It ensures better performance and can prevent a much more expensive repair down the road. While these additional services add to the initial cost, they are cost-effective because the technician has already done the hard work of assessing the components.
What Is a Valve Cover Gasket?
The valve cover is the cover on top of the engine. Under the cover is the valvetrain, which includes rocker arms, springs, push rods and other parts. It must be lubricated with oil to operate properly.
The valve cover gasket is the sealing gasket that clamps between the engine cylinder head and this cover. It has only two key functions:
- Seal the oil: prevent the oil from leaking out, and ensure that the parts inside are lubricated and not worn.
- Block out dirt: It is especially important for construction machinery and equipment. It can block dust, mud, water and debris on the construction site and prevent them from entering the engine and contaminating the engine oil.
Such gaskets are generally made of rubber, silicone or cork, and can withstand high temperature and high pressure. But after a long time and thousands of hours of work, the material will harden, become brittle, and be compressed; the sealing effect will be gone, and the oil leakage will begin.
How Are Valve Cover Gasket Issues Diagnosed?
Finding a valve cover gasket leak is usually pretty easy — the signs are clear once you know what to look for.
Visual check: Look for wet, dark oil around the edge where the valve cover meets the engine. Fresh oil looks wet and shiny. Older leaks get covered in thick dust and dirt. The leak always starts at the top of the engine and may run down the sides.
Burning oil smell: If leaking oil drips onto the hot exhaust or turbo, it will burn and make a strong, sharp smell. If you smell this inside or near the cab, you probably have an outside oil leak.
Lower engine oil level: A small, slow leak might not leave a puddle, but you’ll see it on the dipstick. If you have to add oil more often than normal, a leak is almost certainly the cause.
Professional dye test: If you’re not sure where the leak is coming from, a mechanic can add special fluorescent dye to the oil. After running the engine for a little while, they use a UV light to check. The dye glows bright and shows exactly where the leak is — so you know for sure if it’s the valve cover gasket.
How Is a Valve Cover Gasket Replaced?

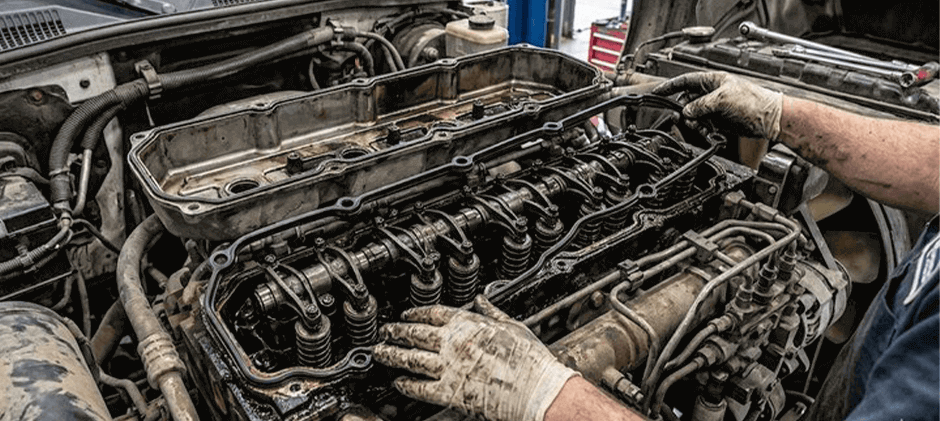

To replace the gasket, the technician first removes any parts that block the valve cover. On some machines, this can include intake parts or fuel system components. Once the cover and old gasket are taken off, the most important step is to clean both the cover and the cylinder head really well.
When everything is completely clean, the new gasket goes on. The technician then tightens the cover to the factory torque settings and puts all the other parts back together. Finally, the engine is run until it warms up to make sure there are no leaks.
Can I Operate with a Bad Valve Cover Gasket?
Your machine can still run even with a leaking valve cover gasket, but we strongly advise against operating it.
- Fire risk: Oil dripping onto a hot turbo or exhaust can easily catch fire. Jobsites have dry grass, wood chips, and hydraulic fluid, so the danger is extremely great.
- Engine damage: A bad leak will lower your oil level, causing poor lubrication and possibly destroying internal parts. A broken seal also lets dust into the engine, which acts like sandpaper on bearings and pistons.
- Fines and penalties: Oil leaks can lead to expensive environmental cleanup costs and fines.
- Damage to other parts: Leaking oil will ruin nearby coolant hoses and belts.
Final Thoughts
Using a high-quality valve cover gasket helps reduce the risk of repeat leaks and extra repairs. Once you notice a leak, replace it as soon as possible—don’t wait until it causes bigger engine problems. Let FriadyParts be your one-stop shop for valve cover gaskets and other replacement parts.
