When an off-road machine throws aftertreatment faults, derates under load, or starts burning more fluid than normal, we often end up chasing “emissions system” problems without a clear starting point. This guide gives us that starting point: what a NOx sensor is, how it measures nitrogen oxides in exhaust, where it’s usually mounted on off-road diesel machinery, and what the most common failure patterns look like—so we can decide what to inspect first and what to replace to get back to steady uptime.
What is a NOx sensor?
A NOx sensor is an exhaust gas sensor used on many modern off-road diesel engines to measure nitrogen oxides (NOx) in the exhaust stream. “NOx” mainly refers to nitric oxide (NO) and nitrogen dioxide (NO₂)—gases that form when combustion temperatures and oxygen levels are high.
On off-road machinery, the measurement is not just for “reporting.” The aftertreatment system uses NOx data to control and verify emissions reduction, especially when the engine is equipped with SCR (Selective Catalytic Reduction). In practical terms, the sensor helps the machine decide:
- Whether NOx levels are high or low at a given moment
- Whether SCR dosing is doing its job
- Whether the system should limit power (derate) to protect emissions control and prevent damage
Why off-road owners should care
For owners and fleet techs, a healthy NOx sensor usually means:
- Fewer surprise derates
- More stable performance under load
- Less wasted troubleshooting time
- Better control of diesel exhaust fluid (DEF) dosing (when SCR is used)

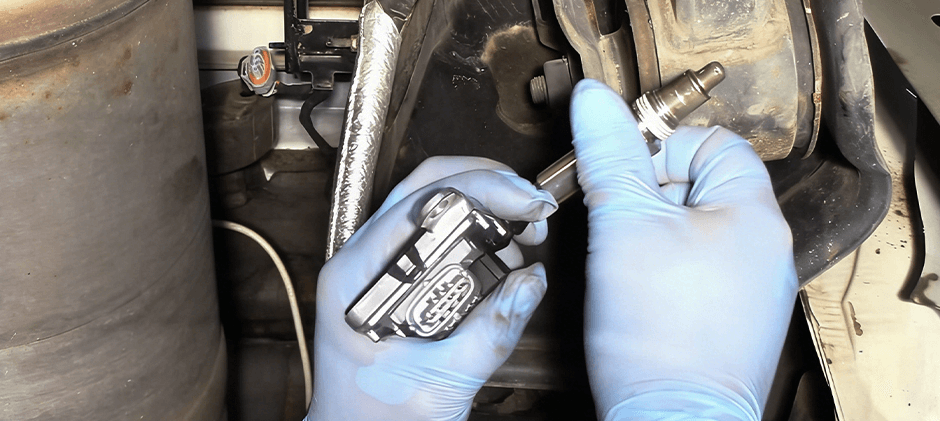

How Do NOx Sensors Work?
A NOx sensor is best understood as a small gas lab in the exhaust pipe. It samples exhaust, runs an electrochemical measurement, and outputs a signal to the controller.
While designs vary, many heavy-duty-style sensors work using an electrochemical ceramic element (often zirconia-based) plus a control module (sometimes built in-line on the harness). Here’s the working flow in plain terms.
1) Exhaust sampling and conditioning
Exhaust gas enters the sensor tip through small passages. The sensor is designed to handle heat and flow, but it still needs the right conditions:
- Correct exhaust temperature window
- No major exhaust leaks upstream
- No heavy contamination that blocks the sampling path
2) Oxygen control inside the sensor
Inside the sensor, a “cell” manages oxygen content so the measurement is consistent. This matters because exhaust oxygen changes with load, turbo boost, and EGR rates (where used).
3) NOx conversion and measurement
Another cell drives reactions that break NOx down and measures the electrical response needed to do it. The sensor electronics translate that response into a NOx concentration value.
We don’t need to memorize the chemistry to troubleshoot well, but we do need to remember the practical result:
- The sensor output depends on heat, clean sampling paths, and stable power/ground
- Small electrical faults can create big “NOx” numbers that are not real
4) Communication to the machine’s control system
The reading is sent to the aftertreatment controller/engine controller, which uses it to:
- Adjust SCR dosing (DEF injection amount)
- Confirm SCR performance
- Decide whether to set fault codes and derate
5) Heater circuit
Many sensors include an internal heater so they can reach operating temperature quickly and stay stable. If the heater circuit fails, readings often become unreliable, and faults appear even if the engine is running fine.
What this means for diagnosis: we treat a NOx sensor as both a chemical measurement device and an electrical component with a heater and data circuit. That’s why wiring integrity is not “secondary”—it’s part of how the sensor works.
Where is the NOx Sensor Located?
On off-road diesel machinery with SCR, there are two common sensor placement strategies. Exact layout depends on the engine platform and packaging, but the logic stays consistent.
Common locations
1. Upstream (pre-SCR) sensor
- Often installed in the exhaust pipe before the SCR catalyst.
- Purpose: measure “engine-out NOx” entering the SCR system.
2. Downstream (post-SCR) sensor
- Often installed after the SCR catalyst.
- Purpose: verify SCR is reducing NOx effectively (this is a key “proof” sensor).
Some machines use one sensor, many use two. When we see two, we usually treat them as a pair: one tells the system what’s coming in, the other confirms what’s leaving.
Why location matters when faults show up
- If the post-SCR sensor reads high NOx, the controller may assume the SCR isn’t working and derate.
- If the pre-SCR sensor reads wrong, the dosing strategy can be thrown off, which can create a real emissions issue even when the hardware is okay.
Access and inspection tips
Because off-road machinery lives in dust, mud, and vibration, we routinely check:
- Connector locks are seated and intact
- Harness routing away from sharp edges and hot surfaces
- Heat shields are present and not rubbing the harness
- No exhaust leaks near the sensor bung (leaks can skew readings)
Common NOx Sensor Faults
When a NOx sensor-related code appears, the sensor itself is not always the only culprit. We usually sort root causes into three groups: sensor element problems, electrical/wiring problems, and system-level issues that make readings look wrong.
1) Sensor element aging or contamination
Over time, sensor tips can be affected by:
- Soot and ash exposure
- Thermal cycling (hot/cold swings)
- Oil or fuel-related contamination from upstream issues
This often shows up as slow response, drift, or frequent “implausible” readings.
2) Heater circuit failures
Symptoms often include:
- Codes shortly after start-up
- Codes in colder conditions
- Unstable readings at idle
Root causes include internal heater failure, damaged wiring, or connector corrosion, increasing resistance.
3) Wiring, power/ground, and connector problems
Off-road vibration and moisture make this a top cause. We commonly find:
- Loose pins (pin drag)
- Green/white corrosion on terminals
- Rub-through on loom supports
- Poor previous repairs or splices
Even a small increase in resistance can cause heater faults or data dropouts. Intermittent faults that appear “only on bumps” are classic wiring/connector issues.
4) Exhaust leaks upstream of the sensor
A leak can pull in outside air or change local flow, making NOx readings unreliable. This is especially important near:
- Flex joints
- Clamps
- Sensor bungs
5) SCR/DEF system issues that look like a sensor problem
Sometimes the sensor is telling the truth: NOx really is high because SCR dosing is not right. Typical causes include:
- DEF quality or contamination issues
- Dosing valve problems
- Plugged mixers or poor distribution
- SCR catalyst efficiency loss (over time)
How we avoid misdiagnosis: we don’t replace the sensor just because a NOx-related code exists—we confirm whether we have an electrical fault, a sensor response fault, or a real SCR performance issue.
Quick Field Table
| What we see on the machine | What it often means | What we check first | Typical fix path |
|---|---|---|---|
| Derate + NOx-related code soon after start | The heater circuit is not working, or the wiring resistance is high | Heater circuit, power/ground, and connector condition | Repair wiring/connector or replace sensor |
| Fault is intermittent on rough ground | Connector pin tension, rub-through, and moisture | Wiggle test + harness routing + corrosion | Restore harness/connector; re-secure routing |
| Post-SCR NOx reading stays high | SCR not reducing NOx (or sensor reading wrong) | Exhaust leaks + compare upstream/downstream behavior | Fix leaks; verify dosing; replace sensor if proven faulty |
| High DEF use with performance complaints | Dosing strategy reacting to bad readings or real NOx | Check sensor plausibility + dosing components | Repair root cause; calibrate/clear codes |
| Code returns quickly after clearing | Hard fault (electrical open/short or sensor dead) | Circuit checks with meter + visual inspection | Repair the circuit or replace the sensor |
FAQs
1) Can we clean a NOx sensor?
We generally don’t recommend cleaning a NOx sensor. The sensing element is delicate, and cleaning attempts often damage it or create repeated faults. If the diagnosis shows the sensor response is out of spec, replacement is usually the reliable fix.
2) How do we tell if it’s the sensor or the machine’s wiring?
A practical approach:
- Confirm connector condition (locks, corrosion, water intrusion)
- Check power/ground integrity under load (heater circuit draws current)
- Review live data plausibility (does the reading behave logically with load?)
- Inspect for exhaust leaks near the sensor location
If we see intermittent faults tied to vibration or moisture, wiring is often the first win.
3) Do all off-road machines have one or two sensors?
Not all, but many SCR-equipped machines use two (pre- and post-SCR). Some use one depending on design and compliance strategy.
4) What happens if we ignore a bad NOx sensor?
Common outcomes:
- Persistent derates or “limp” behavior
- More downtime from repeated fault resets
- Poor SCR control (too much or too little dosing)
- Harder troubleshooting later because the data stream isn’t trustworthy
5) When should we replace the NOx sensor instead of chasing it?
If we’ve confirmed that wiring and exhaust sealing are good, but the sensor shows:
- Heater failure
- Slow or stuck response
- Implausible readings that don’t track with the load, replacement usually saves time and prevents repeat downtime.
In that case, sourcing a compatible heavy-equipment replacement is often the cleanest path. For a wide selection aimed at machinery applications, we can use this parts category: NOx sensor. (Link placed here intentionally mid-article so it supports the repair decision point, not the intro.)
