When an off-road machine loses wiper power, the problem isn’t comfort—it’s safety and uptime. Mud, dust, rain, and snow can quickly turn a windshield into a blind spot. In this guide, we’ll explain what a windshield wiper motor does, how to confirm it’s the real failure (not a fuse, switch, or jammed linkage), and how we typically replace it on cabbed equipment in a clean, repeatable way.
What Does a Windshield Wiper Motor Do?
A windshield wiper motor is an electric motor that converts electrical power into the motion that sweeps your wiper arms across the glass. On most off-road machines (loaders, excavators, backhoe loaders, tractors, and similar cabbed equipment), the motor drives a linkage/transmission that turns one or more pivot shafts. Those pivots move the wiper arms in a fixed arc and return them to a designed “park” position.
Why Wiper Systems Matter More in Off-Road Machinery?
Off-road environments punish wiper systems. Vibration, temperature swings, dust, and water exposure raise the load on the motor and the linkage. That’s why the first symptoms often show up under stress—heavy rain, a dry windshield with gritty dust, or frozen wiper blades.
Common signs that the motor (or system) is failing
- From field experience, we usually see these patterns:
- Sluggish or inconsistent wiping
- No sound/no movement when the switch is turned on
- Wipers stop mid-sweep or park incorrectly
- Grinding/clicking (often linkage bind or worn gear inside the motor)
Quick Diagnostics to Avoid Unneeded Parts
Because replacement steps take time (and sometimes cab trim removal), we usually run a short check first. Many “bad motor” reports turn out to be power supply issues or mechanical binding.
1) Confirm the complaint and conditions
- Do the wipers fail on all speeds (if equipped) or only one?
- Does it fail only when the windshield is dry/dusty (high friction)?
- Does it fail after the machine warms up (heat-related electrical issue)?
2) Check the simplest electrical items
- Fuse: Look for a blown fuse and signs of repeated failure.
- Relay (if used): Swap with an identical relay for a quick check.
- Switch: Loose switch contacts can mimic a motor issue.
- Connector at the motor: corrosion, water intrusion, loose pins.
3) Check for mechanical binding (very common off-road)
- Lift the wiper arms slightly (if safe) and feel for abnormal resistance.
- Inspect the pivot area for packed dirt, ice, or bent arms.
- If accessible, disconnect the linkage from the motor and see if:
- The motor spins freely (electrical side ok)
- The linkage moves freely by hand (mechanical side ok)
Fast reference table: symptom → likely cause → check
| Symptom | Likely cause (most common first) | What we check first |
|---|---|---|
| No movement, no sound | Fuse/relay/power feed issue | Fuse, relay, voltage at motor connector |
| No movement, motor hums | Linkage jam or seized pivots | Linkage, pivots, wiper arm binding |
| Slow wiping | High friction, weak motor, low voltage | Arm/blade drag, pivot stiffness, battery/charging voltage |
| Stops mid-cycle / wrong park | Park circuit issue, internal motor fault, loose linkage timing | Motor “park” function, linkage alignment, and connector condition |
| Clicking/grinding | Stripped gear or binding linkage | Linkage-free play, gear noise location |
If these checks point to the motor itself (or the motor’s internal park mechanism), replacement is usually the most reliable fix.

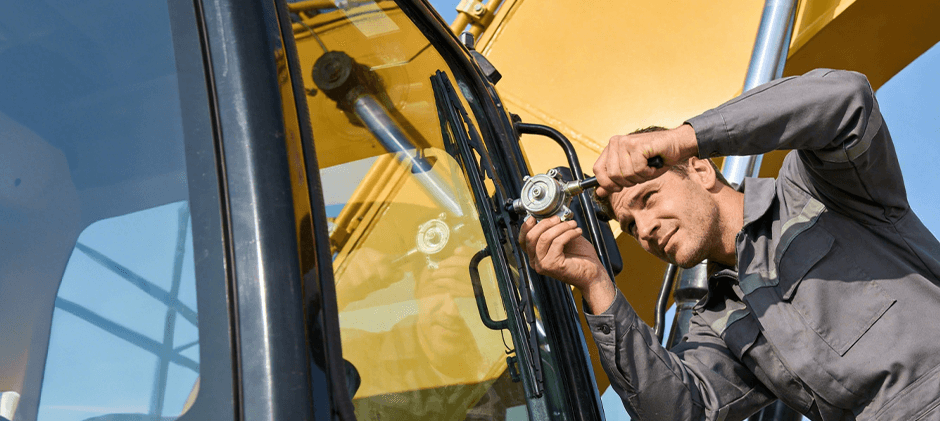

Step-by-step replacement procedure
Step 1: Put the wipers in the parked position
If the system still works intermittently, cycle it and turn it off so it parks normally. This makes reassembly easier and helps prevent wrong sweep angles.
Step 2: Remove the wiper arms (if they block access)
Many machines require arm removal to lift a cowl or access a pivot plate.
- Flip up the cap (if present)
- Remove the retaining nut
- Mark the arm position on the glass with tape (helps realignment)
- Pull the arm off the splined shaft (a puller may be needed if stuck)
Tip: Don’t pry hard against the windshield or painted panels. Use the right puller if it’s seized.
Step 3: Remove the cowl/cover/trim to access the motor
Remove screws, bolts, and plastic fasteners and lift off the panel. Keep fasteners grouped by location.
This is where off-road equipment differs: access panels can be thicker and may include seals for dust and water. Inspect and save those seals if they’re still good.
Step 4: Disconnect the motor electrical connector
- Unclip the harness from any retainers
- Inspect for corrosion or moisture
- Clean contacts if needed
If the connector is heat-damaged or loose, fix that too—otherwise a new motor can still act “bad.”
Step 5: Disconnect the linkage from the motor output
Depending on the design, you may see:
- a single nut/bolt at the crank arm
- a ball-joint style linkage connection
- a small gearbox interface
Support the linkage so it doesn’t drop and bend.
Step 6: Unbolt and remove the motor assembly
Most motors mount with three (or more) bolts. Remove them, then lift the motor out carefully without stressing the harness.
Step 7: Prepare and “park” the new motor before final linkage hookup
This step prevents the wrong park position and odd wipe direction.
- Install the new motor loosely or hold it safely
- Plug the connector in
- Reconnect the power temporarily and cycle the motor once so it stops in its park position
- Disconnect the power again
Now the motor is “parked” and ready to match the linkage timing.
Step 8: Install the New Motor, Linkage, and Reassemble Components
- Bolt the motor into place and tighten evenly.
- Attach the linkage in the correct orientation and ensure it moves freely through its full arc without binding.
- Reinstall the cowl trim, cover panels, and seals.
- Fit the wiper arms back onto the splines in the correct parked position and tighten the retaining nuts to the specified torque (refer to your service manual).
Step 9: Functional Test and Final Inspection
- Reconnect power and test all wiper functions:
- Low/high speeds (if equipped)
- Wash function (if equipped)
- Proper park position
- Confirm smooth, quiet operation with no binding, noise, or irregular sweep.
Choosing the Correct Replacement Motor
On off-road machinery, the “close enough” part often becomes a repeat failure because fitment is more than bolt holes.
We make sure the replacement matches:
- Mounting pattern and bracket shape
- Electrical connector style and pin layout
- Motor torque and speed
- Park function orientation
- Sweep geometry (how the linkage is driven)
If you want a straightforward way to browse options that are meant to meet OEM-style expectations for torque, speed, and mounting precision, FridayParts lists dedicated windshield wiper motor replacements and notes that their motors are engineered to meet OEM standards and are application-tested for direct fitment.
Common Replacement Mistakes
1. Skipping the “park” alignment step
Result: wipers park too high, hit a window seal, or sweep the wrong area.
2. Ignoring linkage drag
A new motor can still blow a fuse if the pivots are packed with grit or partially seized.
3. Overtightening arm nuts
This can damage splines or make future service painful.
4. Leaving the harness unsecured
Vibration can chafe wiring fast on heavy equipment.
Conclusion
Replacing a windshield wiper motor on off-road machinery is usually straightforward once we confirm the fault isn’t a fuse, switch, or binding linkage. The key steps are safe power isolation, clean access, correct linkage timing, and making sure the new motor is parked before final assembly. With proper fitment and a quick post-install test, we restore clear visibility and reduce the chance of repeat downtime in rain, snow, or heavy dust.
