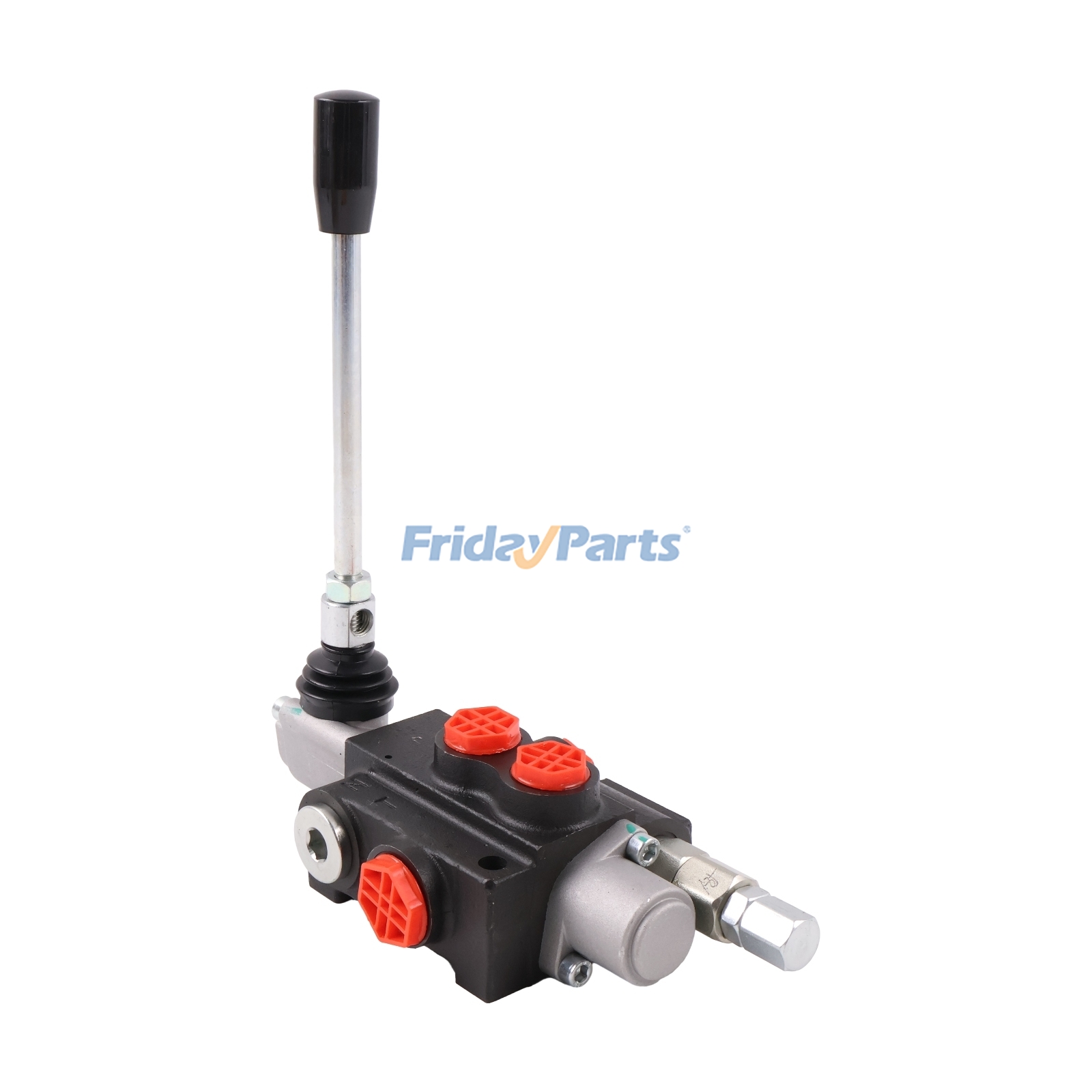

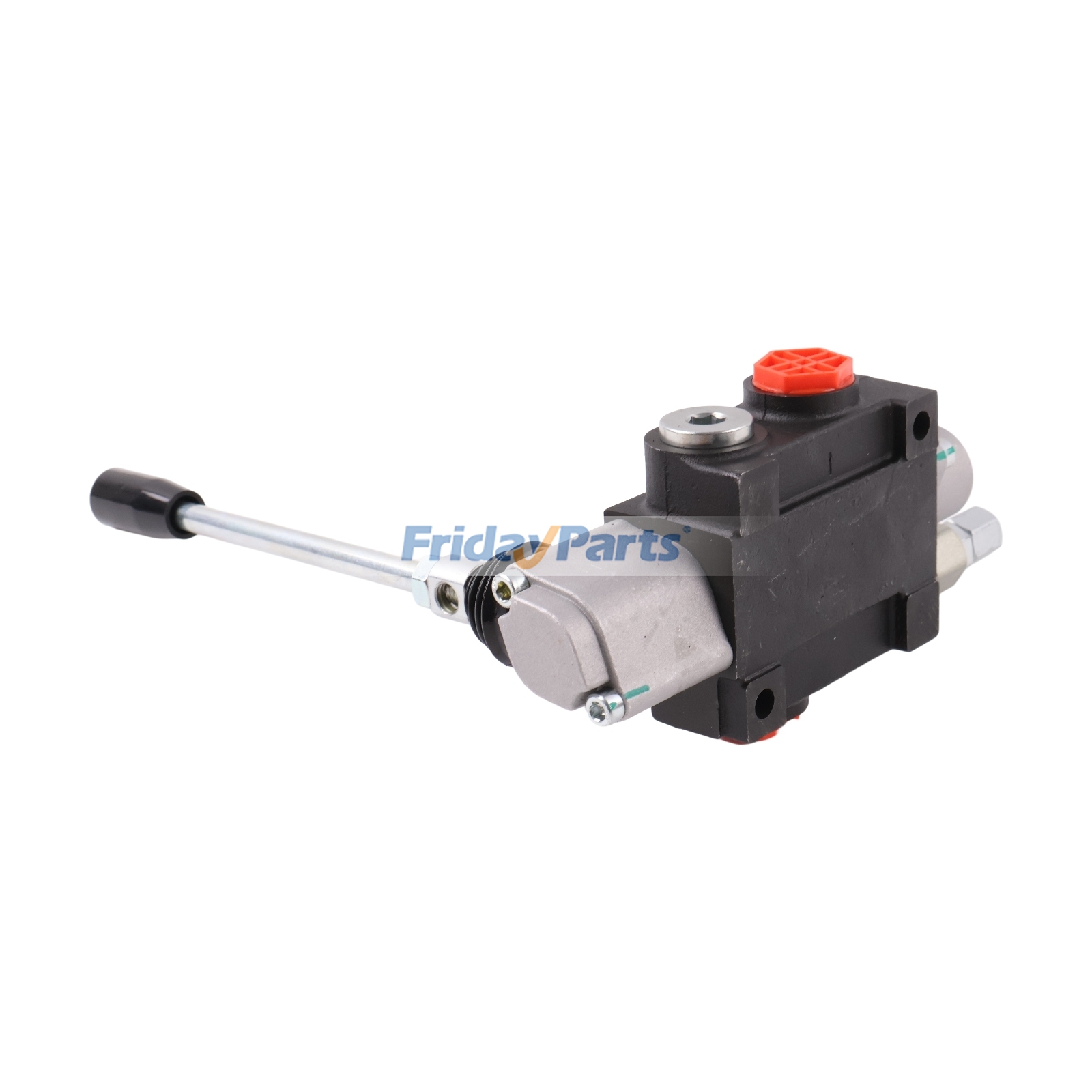

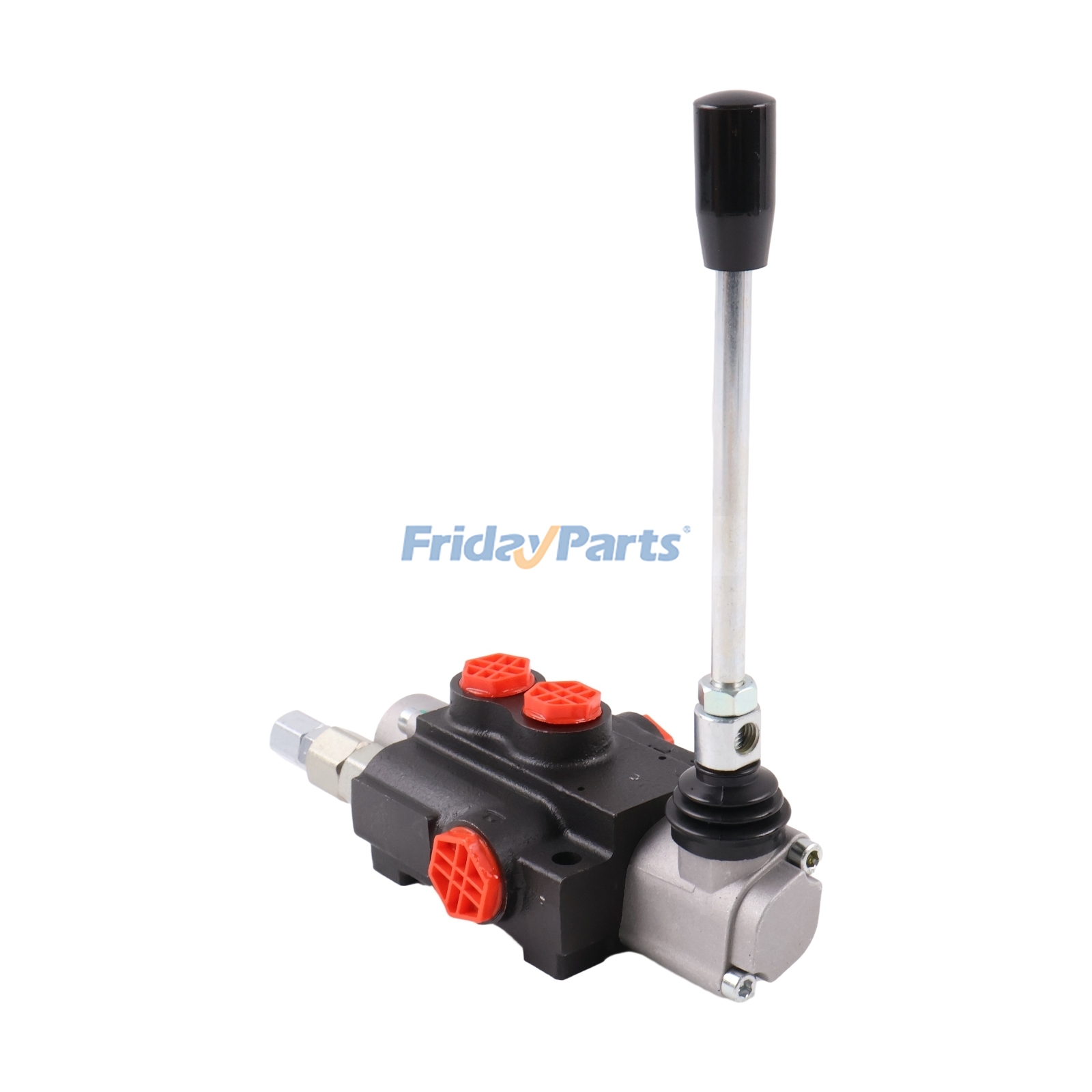

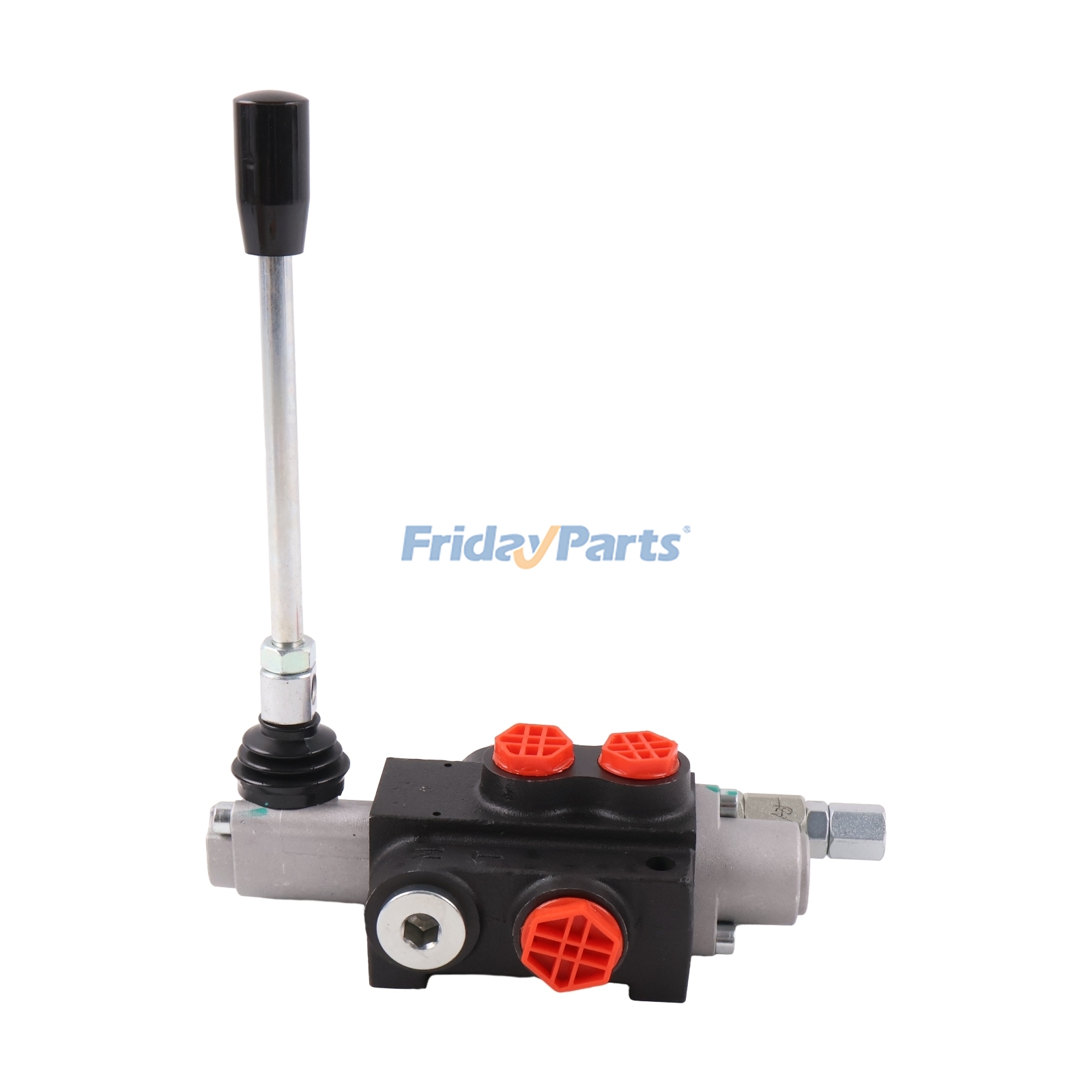

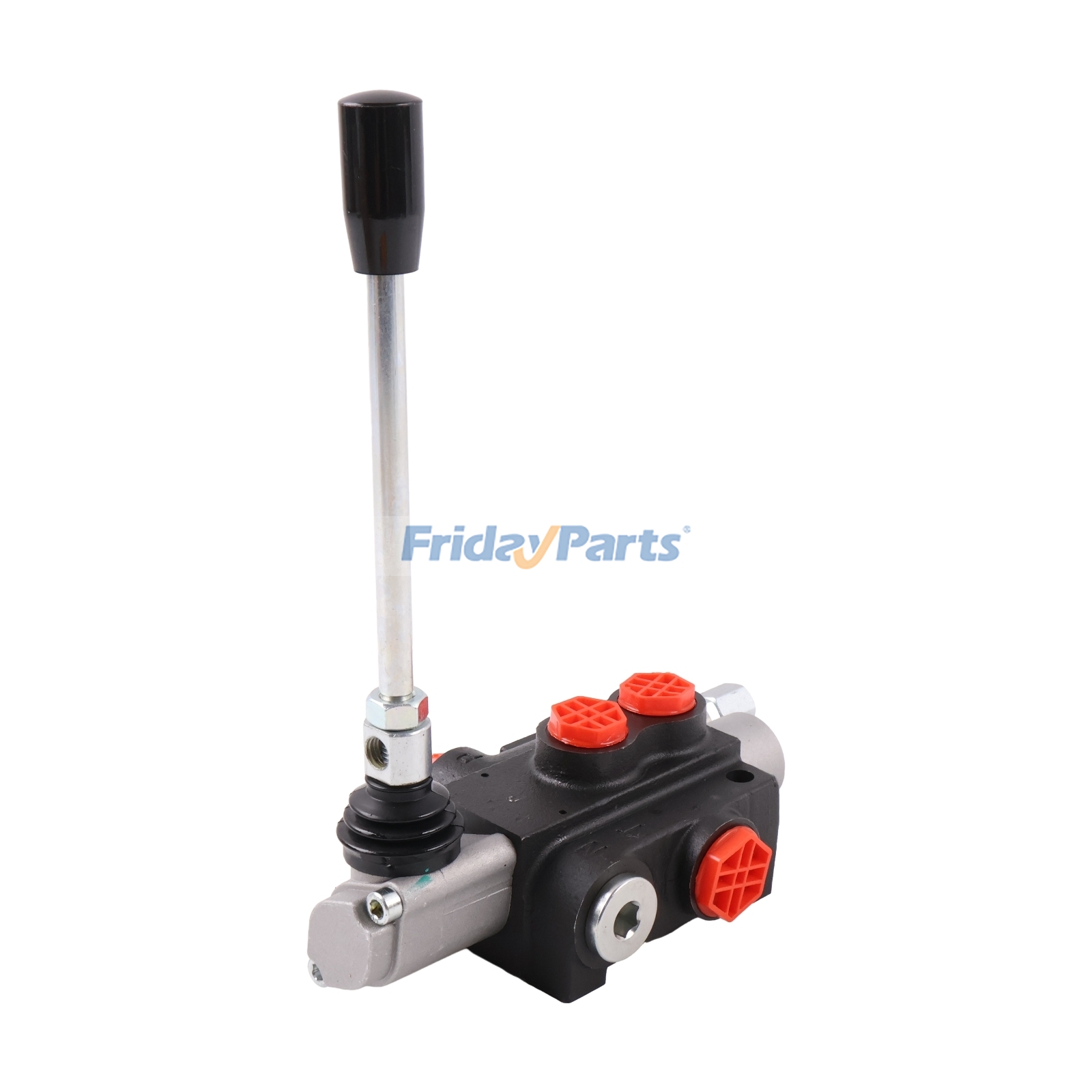

Hydraulic Monoblock Directional Control Valve Single Spool 11 GPM 3600 PSI BSPP Port

Hydraulic Monoblock Directional Control Valve Single Spool 11 GPM 3600 PSI BSPP Port

Specification:
Max operating pressure: 3600 PSI
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 3/8" BSPP
P, T, N port: 1/2" BSPP

Feature:
Double Acting: Our hydraulic control valve is made for operating double-acting cylinders.
Solid Construction: This hydraulic directional control valve comes with 1 spool, with cast iron construction for long-time use.
High Performance: The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
Spring Return: All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
Inner Check/Relief Valve: The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.
Multiple Control Ways: We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.
Wide Application: The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines

Applications:
Fit For Tractor, Loader
