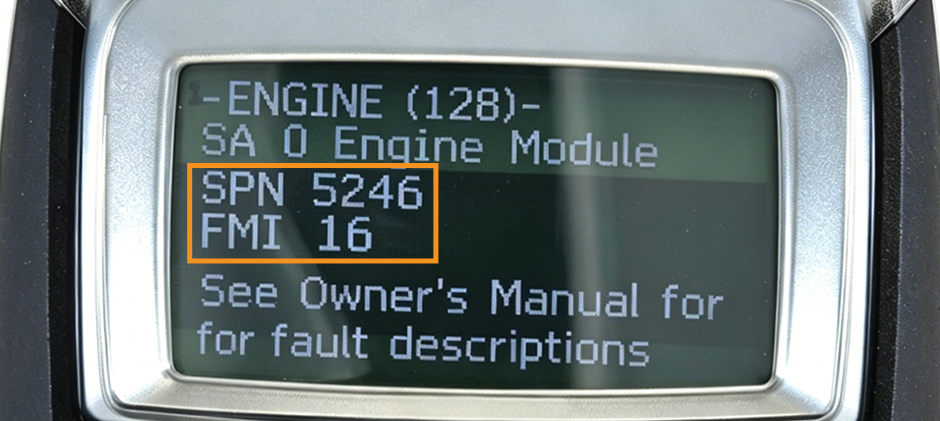

When you see SPN 5246 FMI 16, it usually means the SCR (Selective Catalytic Reduction) system has detected a problem and the engine has gone into derate mode. The engine doesn’t shut off, but it loses power and may slow down to around 5 mph (8 km/h).
It’s the ECM telling you that an emissions-related fault hasn’t been fixed and the machine is now limiting power. The real cause could be anything from a wiring issue to a faulty sensor, clogged injector, or DEF system problem. In this guide, we’ll explain what SPN 5246 FMI 16 means, what commonly causes it, and how to fix it.
What Does SPN 5246 FMI 16 Actually Mean?
- SPN 5246 is known as the SCR operator inducement severity code — folks in the shop just call it a penalty code. It won’t tell you exactly which part is broken. Instead, it means you left another emissions fault unfixed for too long, so the machine started limiting power.
- FMI 16 stands for moderately severe data issues. On Cummins engines, this usually points to a problem with the DEF pressure sensor wiring. The ECM picks up abnormal current or high resistance, which means there’s a short, corrosion or other electrical trouble with the DEF pressure sensor.
This code means the SCR anti-tamper protection has kicked in. First, check all related aftertreatment circuit faults. After you fix the original issue, you’ll need to run the SCR fault reset procedure to clear the codes.
The DEF pressure sensor is small but super important for the exhaust treatment system. It lets the ECM know the DEF pump is working properly. If the sensor sends bad signals, the ECM can’t verify the emissions system is running right. To avoid excess pollution and part damage, it switches the machine to limp mode.
Why Is My Machine Stuck at 5 MPH?
Modern engines have a three-level warning system, and being capped at 5 mph is the second stage.
- FMI 15 (Mild warning): You’ll see a check engine light or yellow DEF light, but power stays normal for a while. This is just a heads-up to get the issue checked soon.
- FMI 16 (Moderate issue): This is your current status. The grace period is over. The ECM cuts engine power by 25% to 50%, or locks your speed at 5 mph.
- FMI 0 (Critical issue): The final stage. If you keep ignoring the problem, the machine will either shut off entirely or only run at idle. It won’t work properly until fixed.
When SPN 5246 FMI 16 pops up, you’ll notice these signs:
- Red stop light: Serious alert — stop regular use right away.
- Steady yellow DEF light: The exhaust treatment system has a fault.
- Blinking low DEF light (even with a full tank): This confuses a lot of people. The tank has plenty of fluid, but the system can’t feed or use it due to a fault.
A basic code reader won’t clear this error. Since it’s an emissions penalty lock, you need professional diagnostic software to run a specific reset process. The system will only lift the power limit after it confirms the repair is done.
The Real Causes of SPN 5246 FMI 16?
To fix the real issue, don’t just focus on the 5246 penalty code. You need to find the original error code that triggered it. Most problems fall into two main groups.
Electrical Issues
FMI 16 showing abnormal current almost always means an electrical fault.
- Corroded connectors: Work machines run in dirt and wet conditions. Unplug the DEF pressure sensor connector and check for green corrosion. It creates extra resistance and messes up signals to the ECM.
- Check for a hot relay: Here’s a quick on-site test. Locate the relay box, usually near the DEF tank or under the cab. Turn on the key and touch each relay. If one feels much hotter than the rest, it’s going bad and sending voltage surges through the exhaust system wiring.
- Worn wiring: Follow the wires running from the DEF tank to the engine. Wires often rub against the frame or other parts, which wears the insulation and leads to short or broken circuits.
Fluid & Hardware Issues
- DEF crystal buildup: If the lines don’t drain fully after you shut off the machine, water in DEF evaporates and leaves hard white urea crystals. These clog the DEF injector or block the pressure sensor opening, causing pressure surges that the ECM mistakes for an electrical fault.
- Clogged DEF injector: A blocked injector creates strong back pressure. When pressure gets too high, the ECM will throw a sensor circuit error.
- Bad DEF fluid: Don’t assume new DEF is always fine. Old DEF, or fluid mixed with diesel, dirt or extra water, will have the wrong urea levels. This makes the system run poorly, and eventually triggers the 5246 code.
How to Diagnose and Test the DEF System?
Don’t rush to replace parts right away. Follow these steps to track down the actual problem.
Step 1: Do a visual check
Inspect all DEF lines and wires. Watch for white crusty buildup that means a leak. Unplug connectors on the DEF pump and pressure sensor, and check for moisture or corrosion. Make sure the connector pins are tight and not loose.
Step 2: Use a multimeter
Test the sensor circuit. Probe the DEF pressure sensor connector with the key turned on. You should get a steady 5-volt signal from the ECM. If the voltage fluctuates or there’s no power, the wiring or ECM is faulty.
Step 3: Test the DEF fluid
This step is a must. Use a refractometer to check the urea level — it needs to be exactly 32.5%. Also check the expiration date; DEF doesn’t last long in hot conditions. If the fluid looks off, drain the tank and refill with fresh DEF.
Step 4: Check for related fault codes
SPN 5246 almost never shows up by itself. Look for these common accompanying codes:
- SPN 4334: DEF pressure too low
- SPN 4339: DEF pressure too high (usually caused by clogs)
- SPN 4364: Poor SCR conversion efficiency
Fix the issues behind these codes first, then you’ll be able to clear the 5246 code.
How to Fix SPN 5246 FMI 16?
The fix depends on the fault that triggered the code. Common repairs include:
- Cleaning corroded connectors
- Repairing damaged wiring
- Replacing a faulty DEF pressure sensor
- Replacing a failed DEF pump
- Cleaning or replacing a clogged DEF injector
- Draining contaminated DEF and refilling with fresh fluid
After the repair, some machines may automatically clear the derate after several drive cycles. Others may require a diagnostic tool to perform an SCR reset or validation procedure. If SPN 5246 FMI 16 returns after the repair, check for additional SCR-related fault codes, as the inducement code is often triggered by another active fault.
Conclusion
SPN 5246 FMI 16 is usually fixable. Start by checking the wiring, testing the DEF, and replacing any failed components. Once the problem is repaired and the system is reset, the machine can return to normal operation. Looking for replacement parts? Find reliable aftermarket parts with guaranteed fitment at FridayParts.
