You are likely searching for how to reset SCR system fault codes because your machine has entered “limp mode” or is derating to 5 mph. Seeing an aftertreatment error on your dashboard stops your work immediately and can be incredibly frustrating. While many operators try to disconnect the battery first, this rarely solves the underlying issue in modern off-road equipment. This guide explains the root causes of these faults and the correct methods to reset them so you can get back to full power.
Why Is My Engine Derating or Limiting Speed?
The Engine Control Unit (ECU) limits power to protect the environment and the engine.
When the Selective Catalytic Reduction (SCR) system detects that it cannot properly reduce emissions—usually due to a lack of Diesel Exhaust Fluid (DEF) or a component failure—it triggers a derate. This is a programmed safety feature. You cannot simply bypass this; you must fix the condition that triggered the sensor before the computer will allow full power again.
“Clearing codes without fixing sensors won’t help. The fault will return immediately once the system runs its self-check.”
3 Common Causes of SCR System Faults
Bad DEF fluid is the most frequent culprit.
If your DEF is old, contaminated with water, or has crystallized, the system cannot chemically reduce NOx emissions. Always check your fluid quality first.
NOx sensors often fail due to soot and heat.
These sensors monitor the exhaust gases. If they are clogged or their internal heating elements fail, they send incorrect data to the ECU, triggering a fault code.
Wiring issues create “Open Circuit” faults.
As seen in many Volvo and heavy equipment cases (specifically code P2047), a break in the wiring harness near the heat shield can cause the dosing valve to stop working. Vibration from off-road work often causes wires to rub against the chassis, cutting the connection.
Does Disconnecting the Battery Reset the SCR System?
Disconnecting the battery usually does not fix SCR faults permanently.
It might turn off the check engine light for a few minutes, but the ECU stores “permanent codes” related to emissions. As soon as you start the engine and the SCR system warms up, the computer re-scans the sensors. If the dosing valve or NOx sensor is still reading out of range, the derate and fault code will return instantly.
How to Reset SCR System Fault: The 5-Step Method
Step 1: Inspect the DEF Dosing Valve and Wiring

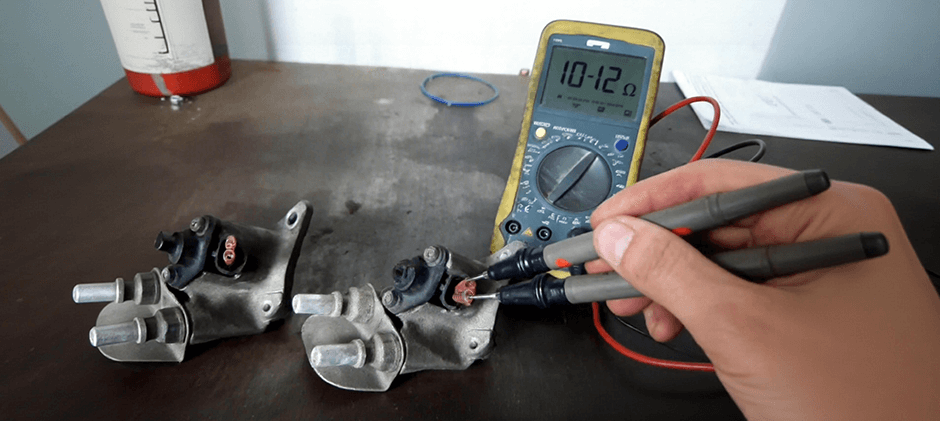

Check the resistance of your DEF injector/doser.
A healthy dosing valve should typically show a resistance of 10-12 ohms. If your multimeter reads outside this range, the part is faulty. Also, inspect the wiring harness leading to the ACM
(Aftertreatment Control Module). Look for any signs of chafing, melting, or disconnection, especially near the hot DPF unit.
Step 2: Top Off with Fresh DEF
Drain the tank if the fluid is old.
If the machine has been sitting for months, the water in the DEF may have evaporated, leaving crystals that clog the system. Drain the tank, flush it with distilled water if necessary, and fill it with fresh, ISO-certified Diesel Exhaust Fluid.
Step 3: Perform a “Drive Cycle”
The system needs time to verify the repair.
After you replace a sensor or refill the fluid, the ECU needs to see the system working correctly to clear the code automatically.
- Start the engine and let it reach operating temperature.
- Operate the machine under load for 20–45 minutes.
- This allows the SCR system to heat up and the sensors to begin reading “normal” values again.
- Once the ECU sees valid data, it may turn off the warning light and remove the speed limit.
Step 4: Use a Diagnostic Scanner for a Hard Reset
A bidirectional scan tool is often required for a forced reset.
If the drive cycle doesn’t work, you need a scanner compatible with your machine (J1939 protocol for heavy equipment). You will need to navigate to the “Aftertreatment” menu and select
commands like “Reset NOx Sensor Learned Values” or “SCR System Reset.” This forces the computer to forget the old error data and start fresh.
Step 5: Check for Soot Load
A clogged DPF can trigger SCR faults. If the upstream filter is blocked, the SCR system cannot function. You may need to perform a “Parked Regen” (Stationary Regeneration) to burn off the soot before the SCR fault can be cleared.
Summary
Learning how to reset SCR system fault codes requires more than just unplugging a battery; it requires identifying whether you have bad fluid, a broken wire, or a failed sensor. Once the physical part is fixed, a drive cycle or a diagnostic tool reset will restore your machine’s power.
If you find that your dosing valve, NOx sensor, or wiring harness is damaged beyond repair, replacing it is the only way to stop the derate. FridayParts offers a wide selection of high-quality, OEM-standard aftermarket engine parts and SCR components to help you fix the issue for a fraction of the dealer price. Get your replacement parts today and get your machine back to work.
