When buying a new or used John Deere Skid Steer Loader, it’s essential to consider the specs and dimensions that fit your jobsite and logistical requirements before making a purchase. In this article, we list the key features, specs, dimensions and common problems to help you make an informed decision.

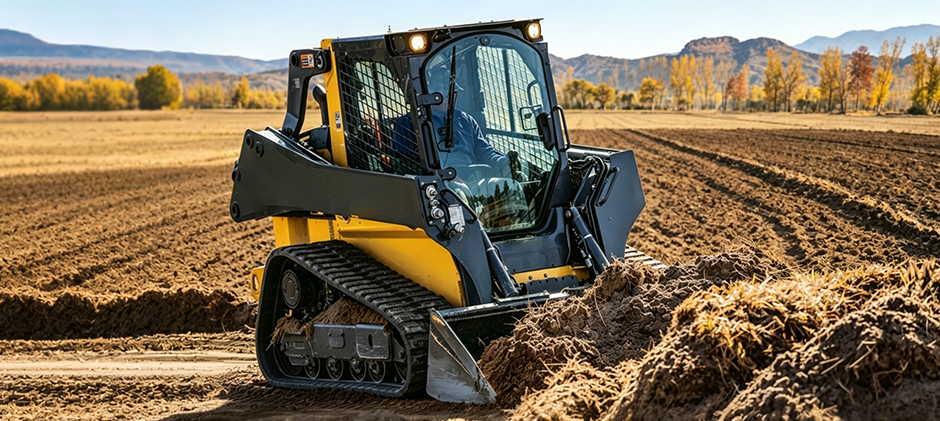

What Is John Deere 325G?
The John Deere 325G is a compact track loader manufactured by John Deere Construction since 2015. It blends the power of a larger machine with the nimbleness needed for tight spaces. Its rubber tracks, vertical lift design, smooth joystick controls and powerful hydraulics make it a versatile and stable performer on rough or sensitive terrains. Weighing 4.31 tons with a rated operating capacity of 1,634 kg and a lifting force of 23.3 kN, it delivers serious performance in a compact footprint. All these make it a trusted choice across construction, landscaping, and utility industries worldwide.
Key Features of John Deere 325G
Increased Versatility with Wide Attachment Offerings
- Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments
- Optional Quik-TatchTM enables some attachment connecting within the cab, eliminating the need for exiting and re-entering the cab to manually connect attachments
- Creep control allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds
Spacious and Ergonomically Friendly Cab
- The sealed and pressurized cab ensures reduced noise from outside
- Optional air-ride heated seat provides increased comfort throughout the cold winter
- Optional Bluetooth radio enables streaming of content from a cell phone
- Removable glass windows, from inside the cab
- Multiple slip-resistant steps and ergonomically placed handles mounted on the interior and exterior of the machine
Exceptional Visibility for Enhanced Situational and Jobsite Awareness
- Optional deluxe LED lighting increases visibility early in the morning or at night
- Clear sight from the seat under the boom arms to see the tires and great visibility to the cutting edges and Quik-Tatch™ lock and unlock indicators
- Rear view camera, low-sloped hood and a high cross-tube on the upper-linkage bring in unmatched rear visibility
Enhanced Productivity for Many Applications
- Increased bucket breakout forces help better handle pallets of pavers or other heavy materials in addition to heaping the bucket with larger loads.
- Optional ISO-H switchable controls with electro-hydraulic (EH) Joystick Performance Package allow operators to choose the pattern they prefer
- Differential steering allows the operator to maintain speed and traction when pushing through a turn
- Standard two-speed drivetrain delivers travel speeds up to 12.9 km/h (8 mph) for Compact Track Loaders, allowing operators to get from one side of the job to the other much quicker
Detailed John Deere 325G Specs & Dimensions
| Driveline | |||
|---|---|---|---|
| Engine Model | Displacement | Engine Manufacturer | Emission Rating |
| 4TNV98CT | 201.4cu in | Yanmar | Tier 4 |
| Rated Speed | Engine Output – Net | Engine Output – Gross | Track Shoe Width |
| 2500rpm | 70hp | 74hp | 12.6in |
| Aspiration | Torque | Fuel Tank – Diesel | |
| Turbo | 206.6lb ft | 20.9gal | |
| Performance | |||
| Ground Bearing Pressure | Pump Flow | Speed – Maximum | Breakout – Lift |
| 5.7psi | 18.5gal/min | 5.8mph | 5238.1lb |
| Breakout – Bucket | Hydraulic Power | System Pressure | Speed – Maximum Option |
| 8745.1lb | 36.8hp | 3450psi | 8.2mph |
| Tipping Load | Rated Operating Capacity | Hydraulic Power – Option, Kw (Hp) | Pump Flow – Option |
| 7407.6lb | 2592.7lb | 53.1hp | 26.7gal/min |
| Dimensions & Weight | |||
| Operating Weight | Rated Operating Capacity (35%) | Height To Top Of Cab | Ground Clearance |
| 9,500 lbs | 2,590 lbs | 6.76ft in | 9.45in |
| Track Gauge | Length – No Bucket | Length – With Bucket | Rear Departure Angle |
| 4.93ft in | 112.21in | 136.23in | 30.5 |
| Rollback – Ground Level | Dump Angle | Width – No Bucket | Dump Height – Maximum |
| 34- | 41 | 71.66in | 101.97in |
| Height To Hinge Pin | |||
| 125.99in |
John Deere 325G Common Problems, Causes & Fixes
| Problems | Causes | Easy Fixes |
|---|---|---|
Starter motor engages but crankshaft does not turn |
poor engagement between starter gear and flywheel ring gear;
engine overheating causing cylinder seizure; lubrication system failure causing crankshaft lockup |
inspect ring gear and starter gear for damage;
allow engine to cool before restarting; inspect lubrication system and top up oil |
No smoke from exhaust pipe during startup |
empty fuel tank; clogged fuel filter or water separator; low-pressure fuel line not supplying fuel;
injection pump failure; air in fuel system |
check fuel level;
replace fuel filter; bleed air from fuel system; inspect and repair injection pump |
Excessive white smoke from exhaust pipe during startup |
water-contaminated diesel fuel;
loose cylinder head bolts or cracked head gasket allowing coolant to enter cylinders |
replace diesel with water-free fuel;
check and tighten cylinder head bolts; replace damaged head gasket |
Control lever unresponsive or slow to respond |
loose or disconnected steering/loader linkages;
faulty safety switch; electrical circuit fault; battery issue |
reconnect and tighten all relevant connectors;
check safety switch connections; inspect electrical circuit; monitor battery condition |
Engine does not crank; startup failure |
clogged fuel filter;
blocked fuel injectors; detached glow plug; loose throttle cable connection |
regularly replace fuel filter (especially in dusty environments);
clean fuel injectors; check and secure glow plugs; inspect throttle cable connections at both ends |
Loader operating abnormally; noticeable loss of power |
insufficient hydraulic fluid level;
clogged hydraulic filter; loose or damaged belt; hydraulic line leakage; damaged control valve seals |
top up hydraulic fluid to manufacturer specifications;
replace hydraulic filter; inspect belt condition; pressure-test lines for leaks; inspect and repair control valve seals and fittings |
Difficulty starting in low temperatures; insufficient engine cranking speed |
increased engine oil viscosity;
reduced battery capacity; compressed air leakage; increased fuel viscosity |
use low-temperature engine oil;
insulate and warm the battery; regularly inspect and replace air filter; add fuel antifreeze additive |

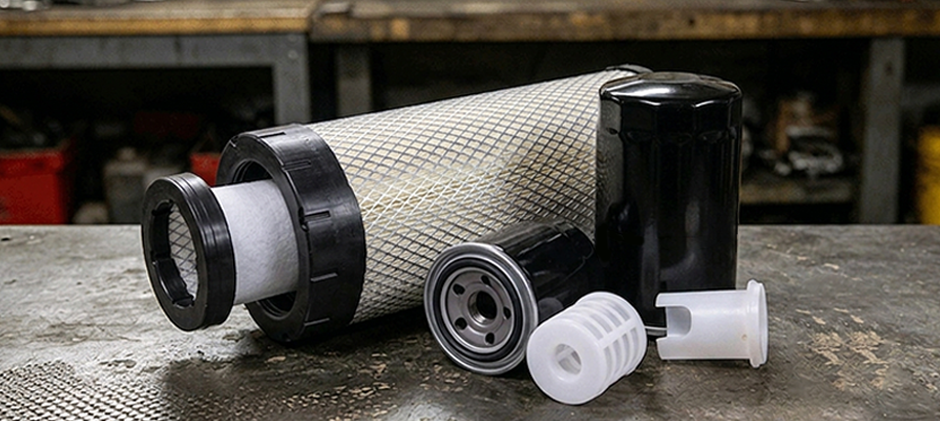

High-quality Replacement Parts for John Deere 325G
| Replacement Parts | Part Numbers |
|---|---|
| Filter Kit | H216169, AT435649, AXE27449, AT338105, AT336803, MIU802154, MIU805005, MIU800650, AT101565 |
| Alternator | AT476307 |
| Hydraulic Pump | AT317640, AT183664 |
| Track Chain Drive Sprocket | T370852 |
| Solenoid Cartridge Valve | AT302919 |
| Flywheel Housing | MIA881092 |
| Fuel Injector | MIA883194 |
| Hydraulic Oil Filter | AT435649 |
| Cabin Air Filter | AT359416, WP10175, SC90448 |
| Final Fuel Filter | MIU801090, WIX WF10384 |
Shop more replacement parts for your John Deere Skid Steer Loader here.
Conclusion
The John Deere 325G is a well-rounded compact track loader that continues to prove its worth across a wide range of industries. With its powerful Yanmar engine, it delivers reliable performance that demanding jobsites require. Whether you’re moving materials on a construction site, shaping a landscape, or handling utility work in confined spaces, the 325G is built to keep up.
Like any piece of heavy equipment, staying ahead of common issues comes down to routine maintenance and early diagnosis. Understanding the signs, causes, and fixes will help you minimize downtime and extend the working life of your machine. When parts do wear out, choosing high-quality replacement components is just as important as the maintenance itself. At FridayParts, you can find an extensive selection of John Deere replacement parts with correct part numbers. Using the correct part numbers ensures compatibility and helps your 325G perform the way it was designed to. Browse our full selection of John Deere 325G replacement parts to keep your machine running at its best.
