The Kubota L3901 delivers 37.5 horsepower in a versatile package that’s become a workhorse for property owners, small farms, and landscaping operations across North America. This complete model hub provides everything you need to know about specs, pricing, parts, and getting maximum performance from this popular Standard L-Series tractor.
What Makes the Kubota L3901 Stand Out
The L3901 sits in Kubota’s Standard L-Series lineup, offering serious capability in a compact utility frame. The tractor runs a Kubota D1803-CR diesel engine with electronically controlled direct fuel injection through the Common Rail System. This 3-cylinder powerplant displaces 111.4 cubic inches and produces 37.5 gross HP at 2,700 rpm with 32.1 HP available at the PTO. That’s enough muscle to run serious implements without stepping up to a full-size utility tractor.
Produced from 2014 to 2022, the L3901 represents Kubota’s commitment to clean emissions without sacrificing performance. The engine meets EPA Tier 4 Final standards using advanced fuel injection technology that enhances efficiency while keeping operations cleaner. You get modern emissions compliance without the complexity of DEF fluid systems, which simplifies maintenance and reduces operating costs.
The transmission choices give you flexibility based on your work style. The gear-drive model features 8 forward and 8 reverse speeds with 4WD, providing precise control for demanding tasks. The HST (hydrostatic transmission) model offers infinite speed control with optional cruise control, making it easier to operate for extended periods. The Feather-Step HST pedal delivers improved responsiveness, reducing operator fatigue during long work sessions.
At FridayParts, we stock quality aftermarket parts for all L-Series models, including the L3901. From routine maintenance items like filters and belts to hydraulic components and engine parts, we help you keep your tractor running strong without the dealer markup.
Kubota L3901 Specs and Performance
Understanding your tractor’s capabilities helps you work smarter and choose the right implements. The L3901 weighs approximately 2,778 lbs without a loader, providing solid stability for Category 1 implements while remaining maneuverable on uneven terrain. Add the LA525 loader and a 66-inch bucket, and you’re looking at roughly 3,848 lbs total operating weight.
The hydraulic system delivers 8.3 gallons per minute, powering both the loader and rear implements effectively. This hydraulic flow rate handles standard agricultural tasks well, though you’ll notice it’s not quite as aggressive as larger utility tractors when cycling the loader quickly. The three-point hitch offers substantial lifting capacity, handling implements up to 1,985 lbs on 2WD models and 900 kg maximum loading weight on the lower link ends.
Fuel capacity measures 11.1 gallons, giving you several hours of operation before refueling. Fuel consumption runs economically for the power class, with owners reporting reasonable usage even under moderate to heavy loads. The naturally aspirated diesel engine provides good low-end torque, which matters when you’re pulling implements through tough soil or climbing hills with a loaded bucket.
| Specification | Value |
|---|---|
| Engine HP (Gross) | 37.5 HP @ 2,700 rpm |
| PTO HP | 32.1 HP |
| Engine Type | Kubota D1803-CR 3-cylinder diesel |
| Displacement | 111.4 cu in (1.826L) |
| Transmission | 8F/8R Gear or HST |
| Hydraulic Flow | 8.3 GPM (31.4 L/min) |
| Fuel Capacity | 11.1 gallons (42L) |
| Weight (Base) | 2,778 lbs |
| Lift Capacity | 1,985 lbs (2WD) |
The ground clearance and dimensions make the L3901 versatile for various terrains. Standard tire sizes run 7.2-16 front and 12.4-24 rear, though you can upgrade to R14 tires that offer a hybrid tread pattern between aggressive agricultural R1 tires and industrial R4 tires. This gives you better traction without tearing up finished surfaces.
LA525 Loader Performance and Capabilities
Most L3901 tractors come equipped with the LA525 front-end loader, which has become the standard pairing for this model. This loader can lift approximately 1,131 lbs at the pivot pin with a maximum lift height of 94.3 inches. That’s competitive lifting capacity for the tractor’s size class, handling pallets, large landscape boulders, and full loads of firewood or mulch.
The LA525 uses Kubota’s Universal Quick Attach system, making it easy to swap between buckets and other front-mounted implements. The standard 66-inch bucket provides good capacity without overwhelming the tractor’s hydraulic system. Some operators add pallet forks, grapples, or specialty buckets for specific tasks. If you’re adding hydraulic attachments like grapples, you’ll need to install additional hydraulic remotes.
Loader performance gets mixed reviews from owners. Some appreciate the solid lifting capacity and responsive controls, while others note that bucket cycling speed doesn’t match more expensive tractors with higher hydraulic flow rates. The loader uses (2) 2.8-inch double-acting lift cylinders and (2) 2.8-inch double-acting bucket cylinders, with hydraulic lines routed inside the main frame for protection and visibility.
One important consideration: adding a loader increases weight and changes your tractor’s balance. Many owners opt for loaded tires (filled with beet juice or calcium chloride solution) to add ballast at the rear. Filling tires approximately 75% full adds several hundred pounds of weight, improving traction and stability, especially when operating the loader on sloped terrain.

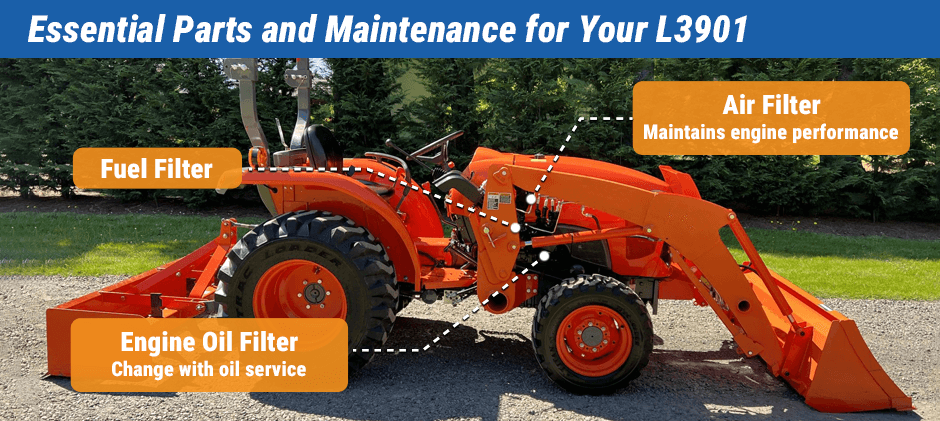

Essential Parts and Maintenance for Your L3901
Keeping your L3901 running smoothly requires attention to routine maintenance using quality parts. The Common Rail System engine demands clean fuel, making fuel filter replacement critical.
Kubota engines are sensitive to fuel quality, and using proper filters prevents expensive injection system repairs. Change your fuel filter according to the maintenance schedule, and consider changing it more frequently if you’re using fuel that’s been stored for extended periods.
Engine oil and filter changes follow typical diesel engine intervals. The L3901 uses standard diesel engine oil, though some owners report good results with synthetic blends for improved cold-weather starting and extended protection. Always check the oil level after a regeneration cycle if your model has DPF emissions equipment, as some fuel can end up in the crankcase during the regeneration process.
Hydraulic and transmission fluid service extends to generous intervals, but checking fluid levels between services catches potential problems early. The HST models use Kubota Super UDT2 fluid, which serves as both hydraulic fluid and transmission fluid. This fluid isn’t cheap, but using the correct specification ensures smooth transmission operation and protects expensive hydraulic components.
Common replacement parts include air filters, belts, and hydraulic hoses. The air filter on the L3901 sits in a location that collects dust, so cleaning or replacing it regularly maintains engine performance. Some owners report that the dipstick can be difficult to reach with big hands, and the radiator prescreen is impossible to remove without raising or removing the loader. These minor maintenance frustrations are worth noting, but don’t significantly impact overall ownership.
At FridayParts, we stock OEM-quality filters, belts, hoses, and hydraulic components for the L3901 at competitive prices. Our parts meet or exceed original equipment specifications, giving you the quality you need without dealer markup. Fast shipping gets you back to work quickly.

L3901 Attachments and Implements
The three-point hitch opens up a world of implement possibilities. Category 1 implements, including rotary tillers, box blades, rear blades, post hole diggers, and finish mowers, all work well with the L3901’s power and weight. The PTO delivers 32.1 HP, which handles 5-6 foot rotary cutters and similar implements effectively.
Mowing options include mid-mount mower decks and rear-mounted rotary cutters. Mid-mount decks provide a finished lawn appearance and better visibility, while rotary cutters handle taller grass, brush, and rougher conditions. The L3901 has enough power to run a 6-foot rotary cutter through moderately heavy growth, though you’ll need to slow down in extremely thick brush.
For dirt work, a box blade helps with grading driveways and leveling ground. A rear blade works well for snow removal or light grading. Many owners add both implements to their arsenal since they serve different purposes. Post hole diggers attach via the three-point hitch, and the L3901 provides adequate power for fence work in most soil conditions.
Ballast matters more than many new owners realize. The tractor performs better with proper weight distribution. Loaded tires add rear ballast, while suitcase weights can be added to the front or rear as needed. Some operators add wheel spacers to broaden the stance for additional stability, which also provides clearance for snow chains if you work in winter conditions.
Pricing and Value Proposition
The Kubota L3901 typically costs between $19,900 and $34,000, depending on year, condition, hours, and included equipment. A basic open-station model without a loader starts around $19,900-$22,000, while a package with the LA525 loader, loaded tires, and other options can push toward $28,000-$32,000. Used models with low hours command strong prices due to Kubota’s reputation for reliability.
Kubota Financial frequently offers competitive financing, sometimes including 0% APR for 84 months with a qualifying down payment. These promotions vary by region and time of year, so checking with multiple dealers can reveal significant differences in both price and financing terms. The L3901 was replaced by the L3902 in 2022, so new L3901 inventory has dried up, making the used market your primary option.
Value retention on Kubota tractors remains strong. A well-maintained L3901 with reasonable hours holds 60-70% of its original value after 5 years, which beats many competitive brands. This strong residual value means your investment holds up well if circumstances change. The Kubota dealer network provides excellent parts availability and service support, adding value beyond the initial purchase.
Warranty coverage on used units depends on the original purchase date and hours, as Kubota offers multi-year powertrain warranties. Always verify remaining warranty coverage when buying used. Extended warranty options may be available through dealers, providing peace of mind for the major components.
Common L3901 Issues and Solutions
No tractor is perfect, and the L3901 has a few known quirks. Some owners report power loss or sluggish performance on hills, particularly with HST models. This often traces to hydraulic fluid levels being too low when operating on steep slopes. The HST pump pickup can lose prime on severe angles, causing oil to run out the back fill port. Some dealers recommend slightly overfilling the transmission to help with this issue, though that creates its own mess when fluid runs out during operation on hills.
Hydraulic system issues occasionally appear, including leaks at connection points or hoses. Regular inspection of hydraulic lines prevents bigger problems. Some users report hydraulic fluid leaks at fittings, sluggish movement from low fluid levels or contamination, and strange noises indicating pump problems. Maintaining proper fluid levels and using the correct Kubota Super UDT2 fluid minimizes these issues.
Engine starting difficulties in cold weather sometimes frustrate owners. The diesel engine relies on glow plugs for cold starts, and these are wear items that eventually fail. Keeping the engine block warm with a tank heater or storing the tractor in a heated building solves most cold-start complaints. Always allow glow plugs adequate time to preheat before cranking in cold conditions.
Transmission problems appear less frequently but can include difficult gear shifts on gear-drive models, strange noises during operation, or slipping. Regular transmission fluid changes using the correct specification prevent most transmission issues. Some owners report smoother shifting after switching to fresh Kubota Super UDT2 fluid at the 50-hour service interval.
Overall, the L3901 earns praise for reliability, versatility, and performance from small to medium-sized farmers and property owners. Most issues relate to maintenance or operator technique rather than fundamental design flaws. Proper maintenance and using quality replacement parts keep the L3901 running strong for decades.
Frequently Asked Questions
What is the difference between the L3901 gear drive and the HST?
The gear-drive L3901 features an 8-speed synchronized shuttle transmission requiring manual shifting between gears, while the HST model provides infinite speed control via foot pedals with no clutching or shifting required. The HST is easier to operate, especially for new users, and reduces fatigue, but the gear drive provides more direct power transfer and slightly better fuel efficiency.
Most operators prefer HST for loader work and mowing, while gear drive works well for field work and pulling heavy implements.
How much weight can the LA525 loader lift?
The LA525 loader paired with the L3901 can lift approximately 1,131 lbs at the pivot pin with a maximum lift height of 94.3 inches. Actual capacity varies based on load position and bucket attachment. This provides adequate capacity for moving pallets, landscape materials, firewood, and typical farm tasks without overwhelming the tractor’s size and hydraulic system.
What common problems does the Kubota L3901 have?
Common issues include hydraulic fluid leaks at fittings, power loss on steep hills with HST models due to low fluid pickup, cold-start difficulties from worn glow plugs, and occasional transmission problems. Most issues relate to maintenance rather than design flaws. Regular fluid checks, using proper Kubota fluids, and routine maintenance prevent the majority of problems. The L3901 generally earns high reliability ratings from owners.
Can I add a cab to my L3901?
Kubota offers factory cab options for some L-Series models, but aftermarket cabs are more common for the L3901. Companies like Curtis make aftermarket cabs that fit the L3901 ROPS. Adding a cab after purchase typically costs $8,000-$10,000 installed, which is significant but provides year-round comfort. Consider whether cab usage justifies the investment based on your climate and hours of operation.
Where can I find quality replacement parts for my L3901?
FridayParts stocks a comprehensive selection of aftermarket parts for the Kubota L3901, including filters, belts, hydraulic components, engine parts, and electrical system components. Our parts meet or exceed OEM specifications while saving you money compared to dealer prices. We offer fast shipping to minimize downtime and keep your L3901 productive year-round.
