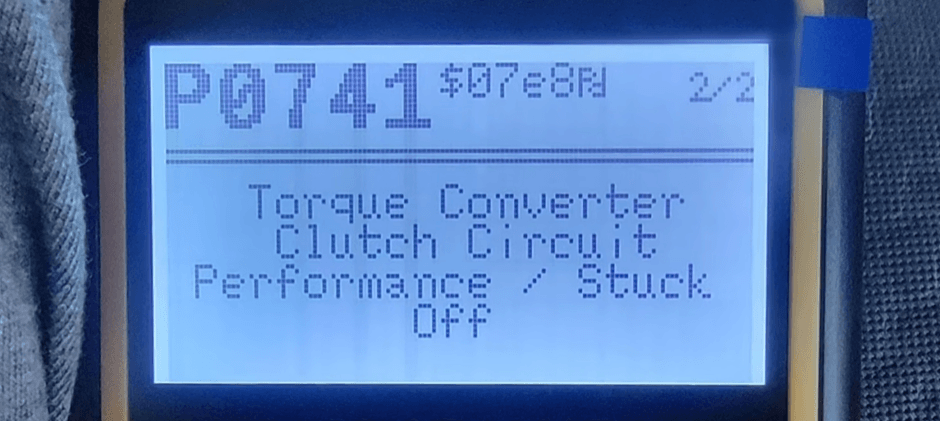

The diagnostic trouble code P0741 specifically points to a problem with the Torque Converter Clutch (TCC) Circuit Performance or indicates the clutch is Stuck Off. To understand this, let’s quickly break down what’s happening inside your transmission.
What Does the P0741 Error Code Mean?
The torque converter sits between the engine and transmission to pass along engine power. One big benefit: your engine keeps idling without stalling even when the machine’s stopped and in gear. It also adds extra torque for pulling heavy loads when you start moving.
Power moves through hydraulic fluid inside the converter, so minor slip is unavoidable. Slip wastes power and builds excess heat, especially during long hauls or heavy-duty work.
To cut this waste, transmissions come with a torque converter clutch, or TCC. Once the machine hits the right running conditions, the TCM (transmission control module) locks up the TCC. This creates a near-direct mechanical link between engine and transmission, cutting slip drastically, improving power delivery, lowering fluid temperature and saving fuel.
Trouble code P0741 pops up when the TCC fails to lock as ordered. The TCM constantly checks engine RPM and transmission input speed. These two readings should match closely once the TCC locks. If a noticeable speed gap remains after the lock command, the system logs P0741 and turns on the warning light to signal a faulty, slipping clutch.
How Serious Is the P0741 Code?
P0741 is a critical fault for off-road equipment, and you need to fix it right away.
The biggest risk is overheating. When the TCC never locks, constant fluid slip spikes transmission heat fast. Transmission oil breaks down quickly and loses its lubricating and cooling properties, which triggers multiple expensive breakdowns:
- Worn clutch packs: Shift clutches get scorched, glaze up and stop working.
- Cracked gaskets and seals: High heat hardens seals, causing internal and external fluid leaks.
- Bent internal parts: Precision pieces like valve bodies warp from excess heat and mess up the hydraulic system.
Besides heat damage, your machine runs weak and inefficient. Lots of engine power turns into waste heat inside the torque converter instead of going to tires or tracks. The equipment feels slow and uses far more diesel, pushing up your daily running costs every hour you keep operating it.
What Are the Symptoms of a P0741 Code?
Besides a lit check engine light, you’ll spot these typical performance issues:
- Transmission overheating: If your trans temp gauge hits red or a warning lamp turns on, shut down the machine safely right away.
- High RPM during travel: TCC lockup normally drops engine RPM in high gear. If your engine revs high but the machine doesn’t speed up, the clutch won’t lock.
- Weak output power: Equipment drags or struggles uphill or under heavy loads. The engine strains, yet little power reaches wheels or tracks.
- Higher fuel usage: The slipping converter wastes energy, so you refill diesel much more frequently.
- Erratic gear shifts: Excess heat and degraded oil ruin the hydraulics, causing rough shifts, delayed gear engagement or slipping gears.
- Rare stall risk at high speed: A faulty TCC may make the engine almost stall when you let off the gas while moving fast.
How to Diagnose P0741?
Fixing P0741 needs orderly checks. You need specialty tools for advanced testing, but experienced operators can run basic inspections first to zero in on faults.
- Pull fault codes: Hook up a machine-compatible scan tool to pull active and pending trouble codes. Jot down extra trans-related codes—they give helpful troubleshooting hints.
- Check transmission fluid: Pull out the dipstick. Good fluid stays clean with the factory-set red tint. Dark brown/black oil, burnt odor or floating metal bits signal serious internal damage beyond just a faulty solenoid; contaminated fluid is a critical warning sign.
- Examine wires and plugs: Trace all wiring running to the transmission, focus closely on the TCC solenoid connector. Watch out for frayed cables, corroded pin terminals or loose plugs. Bad wiring is a frequent, low-cost fix.
- Test the TCC solenoid: This electric hydraulic valve controls oil flow to lock the clutch, and it’s the top culprit for P0741. Unplug the solenoid and use a multimeter to check terminal resistance against your service manual specs. Out-of-range readings mean a broken solenoid. You can also carefully feed it 12V power; an audible click means the part moves mechanically.
- Watch real-time live data: A high-end scanner shows live TCM readings: TCC lock command and torque converter slip speed. Slip should drop almost to zero once the computer sends a lock signal. If slip stays high after a lock command, the clutch never engages—usually from a bad solenoid, damaged torque converter or insufficient hydraulic pressure.
- Hydraulic pressure test (pro-only): Certified techs hook gauges to test ports on the valve body to check TCC supply pressure. Low pressure points to valve body wear, internal oil leaks or a failing trans oil pump.
How to Repair P0741?
Your fix depends entirely on what you find during troubleshooting.
- Replace the TCC solenoid: This is the most frequent fix when the solenoid fails resistance checks. On most equipment, drop the transmission oil pan to reach the valve body and swap the faulty solenoid directly.
- Change transmission fluid and filter: If fluid looks aged or lightly stained with no burnt smell, do a full drain and filter replacement to keep new solenoids working in clean oil. If oil is burnt or full of grit, basic oil change won’t cut it — flush the whole system to clear gunk from the torque converter and cooling lines.
- Fix broken wiring: Patch damaged wiring or swap faulty connectors if wiring is the root issue. Seal up repaired joints to block moisture and shield wires from vibration damage.
- Install a new torque converter: When solenoid and hydraulics test fine, the internal TCC clutch inside the converter is likely broken. This is a big repair: pull the whole transmission out to swap the converter.
- Repair or replace the valve body: Low test pressure from stuck internal valves or cracked housings means rebuild or replace the valve body.
- Post-repair check: After finishing any repair, erase stored fault codes with your scan tool. Run the machine under regular working conditions where TCC normally locks up to verify the issue stays fixed.
Wrapping Up
Code P0741 is serious, fix it right away. It means your torque converter clutch is broken. Your transmission will overheat badly, lose power and burn more gas. Follow basic checks to find the issue. Most times, replacing the solenoid fixes everything. Take all needed parts affordably at FridayParts, a perfect fit guaranteed.
