Modern heavy equipment has said bye to long, stiff rows of levers. Nowadays, a simple and intuitive joystick can accurately control the excavator boom or other attachments. So, what is a joystick? We’ll explore the use of joysticks in machinery, how they work, and the different types you’ll encounter.
What Is a Joystick on Heavy Equipment?
The joystick is not a simple switch, but a core component used to control the machine’s actions. It is used by the operator to convert hand movements directly into instructions for the machine. Old machinery requires a lot of force to pull different poles. Each pole can only control one action. The current joysticks can control operations in multiple directions at the same time. The movement is smoother and easier. Operators can perform various tasks, such as getting a loader to lift heavy objects or getting an excavator’s bucket to make very careful adjustments, simply by pushing, pulling, or gently tilting the joysticks. Modern joysticks make the operation of the machine simpler, more efficient, and safer.

How a Joystick Works?
To know why a joystick works, you have to look at how it works behind the scenes. With a single movement of the joystick, the machine receives the corresponding control signal. There are two main ways to implement it: one is to rely on hydraulic pilot signals, and the other is the electronic sensor, which is more common now. Both ways will accurately pass your actions to the machine and make it act according to your instructions.
Hydraulic Pilot-Operated Joysticks
This method is older but reliable. In this system, the joystick functions as a small hydraulic valve. When the operator moves the joysticks, small passages inside the joystick body open up. Only a small amount of low-pressure fluid flows through tubes. These tubes connect the joystick to the main hydraulic control valve. This moves the boom, bucket, or other attachments. It’s a direct, fluid-powered system: robust, relatively simple, but less customizable than electronic systems.
Electronic Joysticks (Fly-by-Wire)
This joystick has become almost standard on modern heavy equipment. Instead of hydraulic fluid, it uses electronic sensors to detect the movement of the handle and then turns these movements into electrical signals. There are two common sensor types:
- Potentiometers: When the joystick moves, the voltage changes. For example, a forward push may be 5V, a middle position might be around 2.5V, and a backward pull might be 0V.
- Hall Effect Sensors: It has no fragile parts, so they are more durable. There is a magnet at joystick’s bottom. The position of the magnet changes slightly when the joysticks move. The sensor can read changes in the magnetic field and output corresponding electrical signals. This sensor is dustproof, moistureproof, and shockproof, which is very suitable for the environment of a construction site.
No Matter the Sensor Type, the Process Follows a Similar Pattern:
- The operator moves the joysticks.
- The sensor—either a potentiometer or a hall effect sensor—generates a proportional electrical signal.
- The signal travels to the machine’s Electronic Control Unit (ECU).
- The ECU interprets the signal (for example, “75% forward, 20% left”). It then sends a precise command, usually a Pulse Width Modulation (PWM) signal, to an electro-hydraulic valve.
- The valve opens just the right amount. This directs hydraulic flow to carry out the desired action—with speed and precision.
The shift from hydraulic pilot to electronic joysticks was a game-changer. It lets us fine-tune machine response, boost fuel efficiency, and create far more ergonomic, productive operator stations.
Types of Joysticks Used in Heavy Machinery
Joysticks are not all designed the same. There are different joystick configurations for the functions to be completed. You’ll usually see several common types.
- Single-Axis Joysticks: Such a joystick can only be moved in one direction, such as front-to-back or side-to-side. It is generally used for relatively simple functions, such as controlling the accelerator or operating a single hydraulic action, such as raising and lowering a dozer.
- Dual-Axis Joysticks: This type is the most common. It can control two directions (X and Y axes) same time, such as front-to-back and left-to-right. On an excavator, a two-axle joystick may be responsible for the boom and slewing, and the other for the boom and bucket.
- Multi-Axis Joysticks (3-Axis or more): They expand on the dual-axis design with an extra control dimension. Often, you twist the handle (Z-axis) or use a “thumbwheel” rocker switch on top. This third axis works great for rotating attachments like grapples or shears.

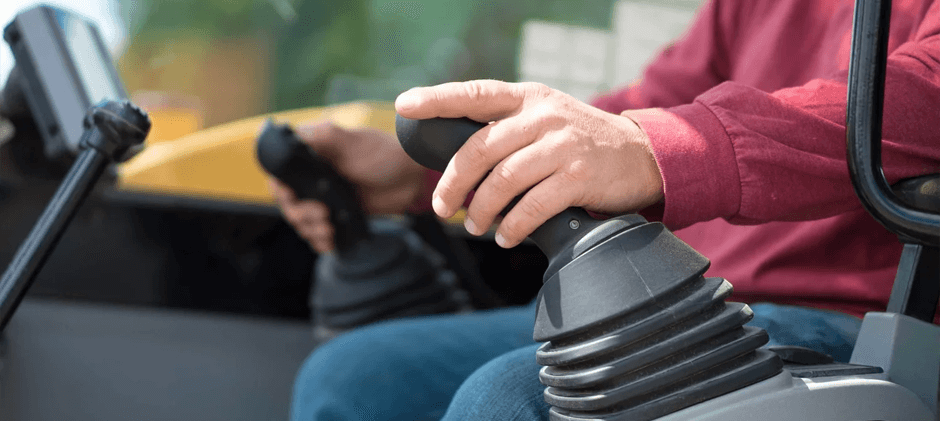

- Joysticks with Integrated Controls: Today’s joysticks usually have a lot of buttons, levers and triggers. Hands can control various functions without leaving the main control handle. Common functions include the horn, gear shift, differential lock, and auxiliary hydraulic function. To protect these delicate structures inside the joystick, a joystick boot is placed on the bottom. Usually made of rubber or silicone to keep out dust and debris.
Common Functions and Controls on a Joystick
The power of joysticks lies in turning complex machine movements into intuitive hand operations. Different manufacturers may have different layouts, but they basically operate in the same way. The table lists the it functions on common equipment:
| Machine Type | Joystick Action | Common Resulting Movement |
|---|---|---|
| Excavator | Right Joystick: Push/Pull | Stick (Dipper) Out / In |
| Right Joystick: Left/Right | Bucket Curl / Dump | |
| Left Joystick: Push/Pull | Boom Down / Up | |
| Left Joystick: Left/Right | Swing Machine Left / Right | |
| Wheel Loader | Single Joystick: Push/Pull | Boom Down / Up |
| Single Joystick: Left/Right | Bucket Dump / Curl | |
| Aerial Work Platform (AWP) | Single Joystick: Push/Pull | Boom Extend / Retract |
| Single Joystick: Left/Right | Platform Swing Left / Right |
Note: Many platforms use a specific genie joystick controller (or similar model) that also includes drive and steering functions. This lets operators reposition the entire machine right from the basket.
This centralized handling allows a skilled operator to perform multiple movements simultaneously. For example, turning, lifting the boom, or rolling the bucket. The operation is seamless, smooth and efficient, something that older levels can’t do.
Advantages of Joystick Controls on Modern Equipment
Joysticks are widely used because they provide clear benefits on construction sites.
- Superior Precision and Proportional Control: The electronic joystick allows for true proportional control. Gently move the handle, and the machine will move slowly and accurately; push it to the end, and the machine will reach the maximum speed. This is very convenient for tasks such as laying pipes or accurately placing materials.
- Reduced Operator Fatigue and Improved Ergonomics: Joystick use requires very little force. Less pressure on arms, shoulders and back, easier operation and less fatigue.
- Increased Productivity and Efficiency: The joystick can control multiple movements with one hand, eliminating unnecessary operating steps and shortening work cycles. The movement connection is natural and smooth, allowing the equipment to dig more soil, load more trucks and complete more work in the same time.
- Enhanced Safety: Key functions, such as the horn or auxiliary controls, are on the joystick. Reacts instantly without letting go of your hands. They can pay more attention to their surroundings to avoid accidents.
- Flexibility and Customization: The electronic joystick operation controlled by the ECU can be adjusted. On the excavator, you can switch the control mode (ISO or SAE) or adjust the response speed. Meet personal habits and operational needs.
Which Heavy Equipment Uses Joystick Controls?
Today, it’s easier to list the machines that don’t use joysticks. This control method has become the industry standard across a vast range of off-road machinery, including:
- Excavators: It’s the classic joystick machine. Two dual-axis joysticks handle all digging and swing tasks.
- Wheel Loaders & Track Loaders: They usually use one joystick for lift and tilt. Some models also add steering.
- Bulldozers: Joysticks handle blade control (lift, angle, tilt) on modern dozers, and some also control steering.
- Motor Graders: Two joysticks now handle complex blade controls, replacing old levers.
- Skid Steers: Most modern models use joysticks (ISO/H-pattern) instead of classic dual levers.
- Aerial Work Platforms (AWPs) & Telehandlers: A single joystick in the basket handles all boom, platform and driving functions.
- Agricultural Equipment: Multi-function joysticks manage headers, augers and other implements on combines, forage harvesters and large tractors.
Final Thoughts
The advent of joysticks has made the operation more efficient, more precise, more comfortable, and safer. Enhance your equipment with a fully adapted joystick controller! The FridayParts controller is designed to be fully compatible with your construction equipment, improving performance and control.
