Weak air from the vents can make a long shift in a heavy equipment cab much harder, especially in dusty, high-hour working conditions. If your excavator AC is blowing weak, the problem is usually caused by restricted airflow inside the HVAC system, such as a clogged filter, blower issue, dirty evaporator, or blocked air path. Knowing the most common causes can help you diagnose the problem faster and restore normal airflow.
Common Causes of Weak Excavator AC Airflow

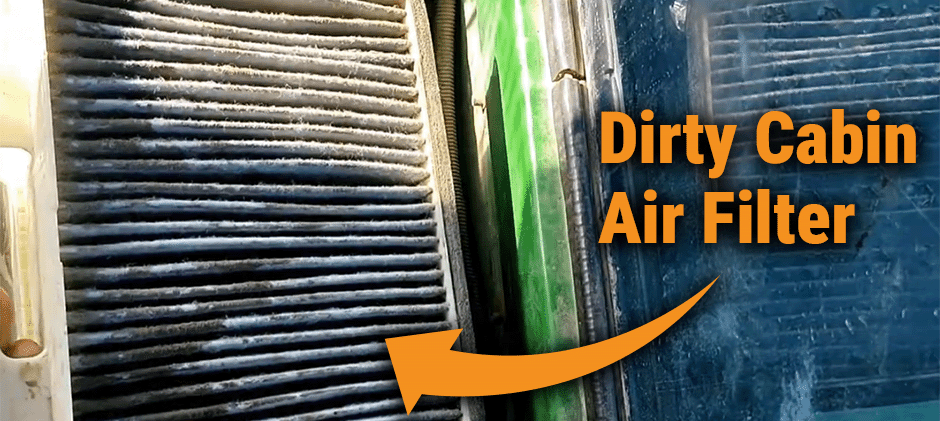

Dirty cabin air filter
A clogged cabin air filter is one of the most common causes of the excavator’s AC blowing weakly, especially in dusty operating conditions. Replacing it with a new cabin air filter for the excavator’s HVAC System can quickly restore airflow.
Common signs include:
- Weak airflow on all fan speeds
- More dust around the cab intake area
- Stuffy air inside the cab
- Little improvement when the fan speed is turned up
Replacing a blocked cabin air filter can often restore airflow quickly if the restriction has not already spread deeper into the system.

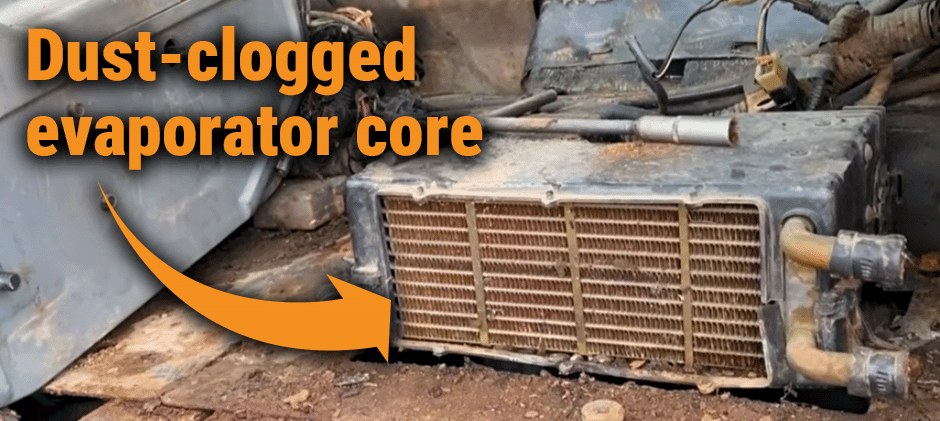

Evaporator core blocked with dust
The evaporator sits inside the HVAC unit, and air must pass through it before reaching the vents. If dirt packs into the fins, airflow drops even when the blower is still operating.
Typical symptoms include:
- Weak airflow from multiple vents
- Musty or dusty smell when the AC runs
- Airflow still poor after changing the filter
- Lower vent output during long operating hours
If the blockage is severe, cleaning may help, but in some cases, replacing the evaporator core is a better fix.
Evaporator ice build-up
Sometimes airflow is normal at startup, but becomes weaker after the AC runs for a while. That pattern often points to evaporator ice build-up.
Watch for this pattern:
- Airflow is normal at first
- Vent output drops after 20 to 40 minutes
- Airflow returns after the system is shut off for a while
If the airflow is weak from startup, icing is less likely than a restriction or blower problem.
Worn or weak blower motor
The blower motor pushes air through the HVAC box and into the cab. A worn motor may still run, but it may no longer move enough air.
Common symptoms include:
- Weak airflow on every speed setting
- The fan sounds weaker than before
- Delayed startup
- Unusual motor noise or vibration
- Airflow does not match the selected fan speed
In many cases, replacing the blower motor restores normal vent output. A worn blower motor is one of the most common causes of an excavator AC blowing weak while the fan still appears to be running normally.
Damaged blower wheel
A damaged blower wheel can reduce airflow even when the motor still sounds active. If the wheel is cracked, loose, dirty, or slipping, the system will not move air efficiently.
You may notice:
- The blower can be heard, but little air reaches the vents
- Vibration or rubbing noise from the HVAC housing
- Weak airflow across all settings
- Poor improvement after filter replacement
Blocked air ducts or vents
If the HVAC housing is working normally, the restriction may be further along the air path. Ducts can collect dirt, partially disconnect, or collapse. Vents can also become blocked with dust.
This may cause symptoms such as:
- Strong airflow from one vent and weak airflow from another
- Reduced air movement in one part of the cab
- Visible dust buildup around louvers
- Airflow noise inside the dash or side panel
Stuck blend door or airflow door
Some HVAC systems use internal doors to direct air through different vent paths. If a door sticks or fails to move fully, airflow may be reduced or sent to the wrong outlet.
Possible signs include:
- Air only comes from certain vents
- Vent mode does not change correctly
- One setting feels much weaker than another
- Airflow seems trapped inside the housing
Low voltage or electrical supply problems
Sometimes the blower is not receiving full electrical power. Poor grounds, corroded connectors, or speed control issues can all reduce fan output.
Common signs include:
- The blower works better at one speed than another
- Airflow is weak at low or medium speeds
- Fan speed changes are inconsistent
- Other cab electrical issues appear at the same time
Can Low Refrigerant Cause Weak Airflow?
Usually, no.
Low refrigerant usually affects cooling performance rather than airflow volume. That means the system may still push a normal amount of air, but the air will not feel cold enough.
The main exception is evaporator ice build-up. In that case, airflow may start normal and then become weak because the frozen evaporator restricts the air path.
A practical rule is this:
- If the excavator AC is blowing weak from startup, check the airflow parts first
- If airflow starts normally and fades later, inspect for icing conditions
This helps keep the diagnosis focused on the actual symptom instead of replacing unrelated parts.
Diagnosis

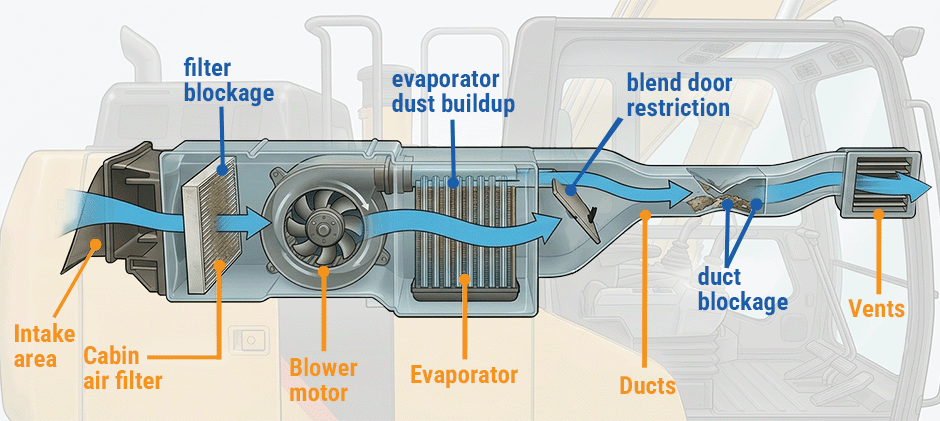

A simple inspection order can help find the cause without wasting time:
- Check airflow at every fan speed
See whether the problem is constant or only happens on certain settings. - Inspect the cabin air filter
Look for dust loading, collapse, or moisture damage. - Check for evaporator blockage or icing
Look for packed dirt, moisture, or a pattern where airflow drops after the system runs. - Listen to the blower motor
Weak sound, noise, or delayed startup often points to fan-side issues. - Inspect the blower wheel
Look for cracks, looseness, or heavy dirt buildup. - Check ducts and vents
Make sure the air path is not blocked or disconnected. - Inspect voltage and wiring
If the airflow path looks normal, check the electrical supply to the blower circuit.
Start with the simple visible checks. In off-road machinery, many airflow faults are found before deep disassembly is needed.
Fixes
Once the cause is identified, the repair path is often straightforward.
| Problem | Practical fix | Likely result |
|---|---|---|
| Dirty filter | Replace filter | Better intake airflow |
| Clogged evaporator | Clean or replace the core | Restored airflow through housing |
| Weak blower motor | Replace motor | Stronger vent output |
| Damaged blower wheel | Replace wheel | Better air volume and balance |
| Blocked duct or vent | Clear or repair the duct path | Improved airflow delivery |
| Faulty airflow door | Repair linkage or actuator | Proper airflow routing |
| Low voltage | Repair wiring or connectors | Stable fan speed |
If cleaning no longer helps, replacement is often the better option, especially when the filter media has collapsed, the blower motor is noisy, the blower wheel is cracked, or the evaporator is badly corroded.
FAQ
Why is the excavator AC fan running, but the airflow is still weak?
You hear the fan running, but barely any air comes out. That usually points to a clogged cabin filter, a dirty evaporator, a damaged blower wheel, or blocked ducts. In some cases, the blower motor still spins but just can’t push enough air anymore. That’s a classic AC blowing weak situation.
Can a dirty cabin air filter cause weak AC airflow?
Yes. A dirty cabin filter is one of the top reasons for weak airflow in excavators, especially on dusty job sites. Once the filter clogs up, less air gets into the HVAC housing and out the vents. If your AC is blowing weak, checking the filter should be your first step.
Why does the excavator’s AC airflow start normally and then get weak?
If the airflow starts strong but drops off after the AC has been running for a while, evaporator ice buildup is a likely suspect. Moisture freezes on the evaporator and slowly blocks the air passage. That kind of progressive AC blowing weak is often mistaken for a blower failure, but it’s usually ice.
Conclusion
If your excavator AC is blowing weak, the cause is usually an airflow restriction, a blower problem, or an internal air-routing issue rather than a major cooling failure. Most excavator AC blowing weak problems can be diagnosed by inspecting the filter, evaporator, blower motor, and airflow path before moving on to more complex repairs. In many cases, replacing a clogged filter or repairing a worn airflow component is enough to restore cab comfort. If inspection shows that HVAC parts need replacement, FridayParts offers replacement HVAC parts for many excavator and heavy equipment models.
