The cabin air filter in your CAT machines plays an essential role in preventing dust and dirt from infiltrating your machine’s systems. Whether you choose to purchase new cabin air filters from the manufacturers or from aftermarket suppliers, it’s crucial to know how to select the right cabin air filters. In this guide, we’ll walk you through the steps to replace the cabin air filter on your CAT equipment.
What Does the Cabin Air Filter Do?
Cabin air filters help remove contaminants from the outside air that is pumped into the cabin interior when the fan is on. By purifying the air that flows directly into the cabin, these filters can greatly impact the air quality inside of your CAT machines. Besides, the cabin air filters contribute to maintaining the health of the heating and cooling system. Replacing or cleaning cabin air filters as part of a regular vehicle maintenance routine can help ensure the long-term efficiency of your A/C unit.
When Should You Change the Cabin Air Filter?
A dirty, clogged cabin air filter can hinder your equipment’s performance by clogging an entire HVAC system with dust and debris. If you’re not sure when you replaced the cabin air filter last time, it’s time you need a replacement, especially when you notice these signs of a clogged cabin air filter:
- Reduced or limited airflow through the vents
- Odors during heat or A/C system operation
- Lack of A/C system performance
- Difficulty clearing fog from the windshield
How Often to Replace the Cabin Air Filter?
There’s no single hour interval that fits every job site. A machine working in fine dust all day will load a cabin air filter much faster than one on soft ground with light debris. On almost all CAT equipment, there is a yellow indicator to tell you when air filters need attention. Each machine has an Operation and Maintenance Manual with further information on service intervals. We recommend you change your cabin air filter according to the specifications and recommendations of your vehicle. See a practical cabin air filter replacement plan here.

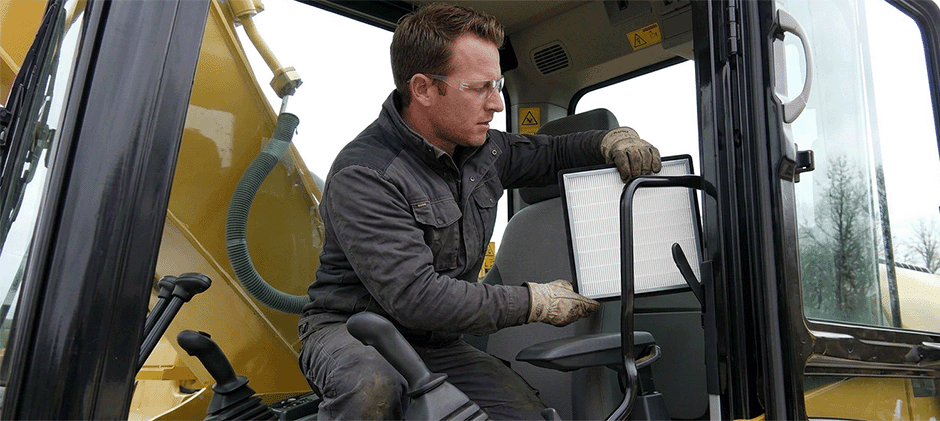

How to Change Cabin Air Filter?
Now, let’s get down to how to change a cabin air filter on different CAT equipment.
On CAT Skid Steer & Compact Track Loader
- To remove, rotate the filter assembly counterclockwise
- Discard the old cabin air filter
- Inspect the new cabin air filter
- Place the new cabin air filter into the ductwork
- Rotate the new filter assembly clockwise
- Lock the filter into the ductwork
See YouTube video on how to change the skid steer filter here.
On CAT Mini Excavator(3-8 ton)
- Check the yellow indicator to see if the air cleaner requires servicing
- Unfasten the three clips around the outside of the filter housing cover
- Remove the primary (outer) filter and then slide out the secondary (inner) filter
- Align the notch on the new inner filter and slide it firmly into the housing
- Slide the new outer filter over the top of the inner filter until it is firmly in place
- Replace the housing cover and secure all three clips
- Press the reset button on the indicator and squeeze the duckbill valve at the bottom to remove debris
Here is a YouTube video on how to change the cabin air filter on a CAT Mini Excavator.
On CAT F-Series Backhoe
Fresh Air Filter
- Locate the filter on the outside of the cab, on the machine’s right-hand side rear fender
- Clean and return the filter for continued use, or replace it if it is worn out
Recirculation Filter
- Locate the filter inside the cab, on the machine’s right-hand side below the gauge console
- Remove the plastic pane to access the filter area
- Remove the metal frame from around the filter
- Remove the old filter and install the replacement
Refer to this YouTube video for easy replacement.
Note: Always consult your Operation and Maintenance Manual for your specific CAT models.
Quick Tips For Cabin Air Filter Replacement
When it’s time to replace the cabin air filter, it’s important to take precautions that will avoid contamination during installation. Keep the following tips in mind:
- Handle the new filter element carefully
- Keep the cab air filter in the original packaging until ready to install to limit its exposure to open air and the introduction of dirt or contaminants
- Inspect the filter to make sure it is not damaged
- Once installed, check that the filter is well seated and sealed properly against its housing
- Do not tap filters on hard surfaces to remove dust
For more information about protecting the air quality in your equipment cabin, refer to your CAT Operation and Maintenance Manual. Need replacement Cat filters or other CAT replacement parts? Shop now.

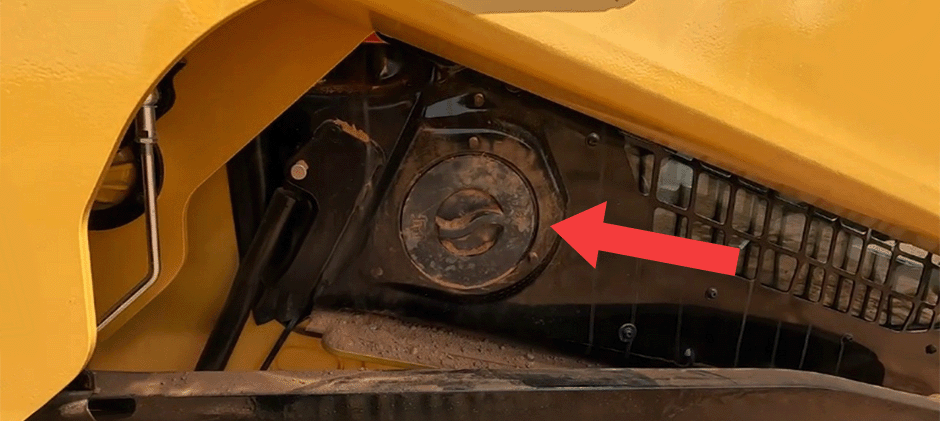

Where Is Cabin Air Filter Located on CAT Machinery?
The location of the cab air filter varies among brands. Some have it inside the cab, behind the seat or underneath it. For the CAT equipment, the very common cabin air filter locations are:
- In a lockable compartment on the left-hand side, next to the cabin door
- The filter cover is located on the right-hand side of the machine, behind the cab (for CAT® skid steer loaders and compact track loaders)
- The recirculating air filter is inside the cab
- The fresh air filter is on the side of your equipment
Not sure where your cabin air filter is located? Click to see the details.
How to Choose the Right Cabin Air Filter?
There are 5 different types of cabin air filters: standard cabin air filters, HEPA cabin air filters, activated carbon cabin air filters, electrostatic cabin air filters and baking soda cabin air filters. When it comes to choosing the right one, here is what to do:
Choose A Standard Filter if you:
- Work in relatively clean, suburban environments
- Are on a tight budget
- Need a simple, no-frills air filtration solution
Get A HEPA Filter if you:
- Suffer from allergies, asthma, or respiratory sensitivities
- Prioritize the highest level of air purification
- Want to block dust, pollen, smoke, and bacteria
Opt for An Activated Carbon Filter if you:
- Drive frequently in heavy traffic or urban areas
- Want to eliminate exhaust fumes, odors, and VOCs
- Travel through industrial or highly polluted zones
Buy An Electrostatic Filter if you:
- Drive in dusty or off-road environments
- Want a washable, reusable long-term option
- Need strong filtration during high pollen seasons
Purchase a Baking Soda Filter if you:
- Frequently travel with pets or transport food
- Want budget-friendly odor neutralization
- Need basic filtration with enhanced freshness
On heavy-duty conditions where there is more dust and debris, it’s recommended to choose quality electrostatic cabin air filters from reliable suppliers. See more details on the guide How to Choose the Best Cabin Air Filters?
Final Words
Changing the cabin air filter is essential for maintaining the cooling system of your cabin on CAT machinery. Always refer to your owner’s manual for the locations and detailed information about cab air filter replacement. At FridayParts, you can explore an extensive selection of quality cabin air filters for your CAT and other heavy machinery.
