A mower drive belt is an essential component for a smooth mowing experience. Once it fails, it may damage other components and lead to costly repairs. In this guide, we’ll walk you through the Hustler Raptor drive belt diagram and how you can replace your belt on your own. Let’s get started!
What Is A Mower Drive Belt?
A drive belt is an essential part for both riding and push mowers. It is a heavy-duty rubber band that transfers power from the engine to the transmission or the wheels, allowing your mower to move forward and backward under its own power (self-propelled feature in push mowers or ground drive on riding mowers). Over time, though, these belts will tear or slip. As a result, your mower cannot roll well and its blades might not rotate properly, leaving uneven cuts.
Hustler Raptor Drive Belt Diagram

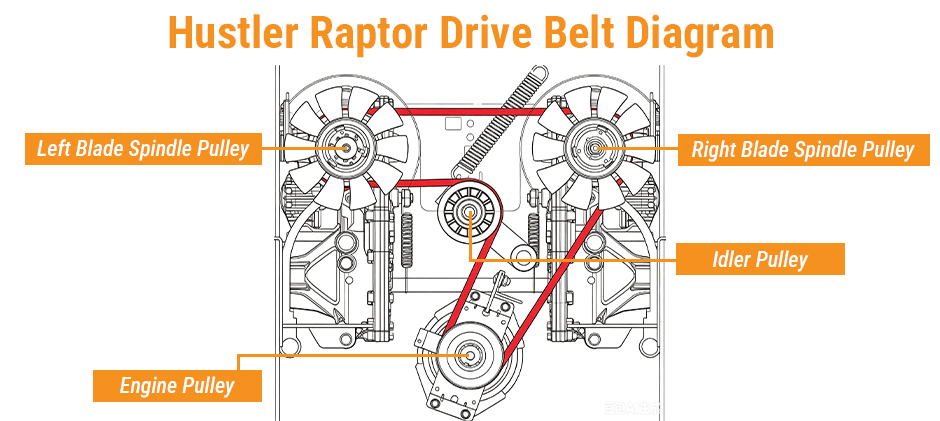

Here is a Hustler Raptor drive belt diagram for your XD mower.
The diagram shows a top-down view of the mower deck, with the red lines representing the drive belt routing. The belt connects the following key components:
- Electric PTO Clutch(Engine Pulley): The belt originates from the PTO clutch located at the bottom center of the deck. This is where engine power is transferred to the belt.
- Left Blade Spindle Pulley: The belt routes up to the left spindle pulley, which drives the left cutting blade.
- Right Blade Spindle Pulley: The belt also wraps around the right spindle pulley, driving the right cutting blade.
- Center Idler Pulley: Located between the two spindle pulleys, the idler pulley helps guide the belt and keeps it on the correct path.
- Spring-Loaded Belt Tensioner: At the top of the diagram, you can see the tension spring. This component automatically maintains the correct belt tension to prevent slipping or belt derailment during operation.
Understanding this diagram is helpful when replacing a worn or broken belt, re-routing a belt that has slipped off and inspecting pulleys and the tensioner for wear.
11 Signs Your Mower Drive Belt Needs A Change
A drive belt is susceptible to wear over time. Here are 11 signs of a worn drive belt on a mower.
- Squealing or screeching noise when the blades are engaged
- Blades engage sluggishly or take longer than normal to reach full speed
- Blades slow down or stop when cutting through thick grass
- Cracks, frays, or glazing are on the drive belt.
- The belt comes off the pulleys
- Burning rubber smell during or after mowing
- Uneven cutting or scalping in patches
- Black rubber dust and debris on the deck
- The belt appears shiny, hard, or stiff
- Riding mower drives erratically, jerks, or won’t maintain speed
- Self-propelled drive is weak, inconsistent, or has stopped working
If you are experiencing any of these signs, it may be time to replace the drive belt.
How to Replace the Drive Belt on A Hustler Mower?
Like any other mower, the drive belt is going to wear out at some point. Changing the belt when it’s worn out will allow your Hustler mower to run strong and smoothly.
Tools Required
You will need the following tools for a replacement:
- Socket set
- Ratchet wrench
- Screwdrivers
- A drive belt replacement
- Safety gloves and glasses
Replacing the Hustler Drive Belt Step by Step
Get the Mower Ready
- Place your mower on level ground and switch off the engine
- Remove the spark plug to prevent accidental starting
- Lower the deck to the lowest position
Take Off the Belt Guards
- Take off the belt guards on the top of the mower deck
- Put the screws and bolts in a safe location for a second use
Let the Belt Free
- Locate the idler pulley and let the belt go
- Make sure you see the routing of the belt before removing it
- Remember to take a picture or draw the routing for reference
Getting Out the Old Belt
- Take the worn-down belt off the pulleys
- If the pulleys are worn or damaged, replace the pulleys, too
Put in the New Belt
- Route the new drive belt around the pulleys according to the manufacturer’s belt diagram
- Reengage the idler pulley to get the proper tension on it
Reassemble and Cycle Test
- Reattach belt guards and spark plug
- Put the mower in forward to test out the deck engagement
- The blades should cut smoothly and not make any noise.
- The belt should not slip either
Pro Tips for Longer Belt Life
- Choose reliable Hustler belt replacement for the correct fit and longevity
- Avoid mowing in wet or sandy conditions
- Make sure pulleys and the deck area are free of grass residue
- Check belt tension frequently
Wrapping up
Your mower’s drive belt is one of the hardest-working components on the machine. It is also one of the most overlooked parts until it fails completely. When the drive belt wears or fails, it can leave your mower stranded mid-lawn, damage other components, and lead to costly repairs. Always watch for early signs of a failing drive belt and replace it according to your manufacturer’s diagram. Sometimes, it’s recommended to change the pulleys as well. At FridayParts, you can explore a vast selection of mower belts, pulleys and other lawn mower parts. Ready to replace the belt yourself now?
