Every Gravely zero-turn mower has a belt system that delivers the engine power to the mower blades. Understanding the Gravely mower deck belt diagram helps you install the belt correctly to avoid belt slipping or premature wear. Now, let’s get started.
What Is A Mower Deck Belt?
A deck belt is a rubber belt loop on a riding lawn mower or tractor. It transfers power from the engine to the mower blades. It connects the engine pulley to the spindle pulleys on top of the mower deck. When you turn on the blade switch or PTO (Power Take-Off) lever, a tensioner pulley tightens the belt so the blades start turning. See Deck Belt vs Drive Belt, What’s the Difference here.

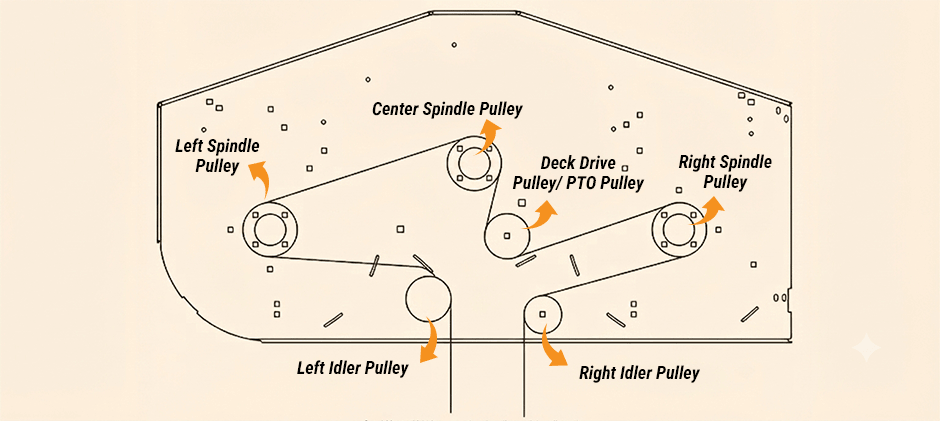

Gravely Mower Deck Belt Diagram for 52” ZT Mower
This is a diagram of PTO belt routing for a Gravely 52-inch ZT mower deck. Before replacing a Gravely mower deck belt, it’s important to understand the main components in the diagram.
- PTO Pulley
- Spindle Pulleys
- Idler Pulleys
Together, these components transfer engine power to the mower blades and keep the belt running at the correct tension.
How Does the Gravely Deck Belt Work?
PTO Pulley
The PTO pulley, aka deck drive pulley, is the starting point of the mower deck belt system. It connects the mower’s PTO clutch, which receives power directly from the engine. When the operator engages the PTO switch, the engine starts rotating, the PTO clutch engages and the PTO pulley spins, driving the mower deck belt and transferring the rotational force to blade spindles.
Spindle Pulleys
The Gravely 52-inch mower deck uses three spindle pulleys, each connected to a blade spindle assembly underneath the deck. When the belt rotates the spindle pulleys, the spindle shaft rotates to spin the mower blade.
- The left spindle pulley powers the left-side mower blade, and it transfers belt rotation to the left spindle shaft, allowing the left blade to cut grass.
- The center spindle pulley drives the middle blade. Because the center blade covers the central cutting area, this pulley is an important part of maintaining even cutting performance.
- The right spindle pulley powers the right-side blade. Together, the three spindle pulleys allow the 52-inch mower deck to operate three cutting blades simultaneously.
Idler Pulleys
Unlike spindle pulleys, idler pulleys do not drive the blades. Their main job is to control belt tension and guide the belt along the correct path. The left and right idler pulleys in the diagram are mounted on an idler arm assembly and controlled by a tension spring. When the belt is installed, the spring pulls the idler arm, the idler pulley presses against the belt and the belt remains tight around all pulleys. Without proper idler tension, you might get a slipped belt or slow mowing blades. Besides, the idler pulleys also help create the correct belt routing by changing the direction of the belt around the deck.
Why Does Correct Belt Routing Matter?
A wrong belt routing can lead to the following issues:
- Mower Blade Not Spinning: If the belt is not wrapped around the spindle pulleys correctly, the power cannot reach the blades
- Belt Slips or Comes Off: Incorrect routing changes belt tension and prevents idler pulleys from applying proper pressure
- Uneven Cutting Performance: If one spindle pulley is not driven correctly, one or more blades may rotate slower than normal
Tips for Routing the Belt with A Diagram
Here are some tips for the belt routing. When installing a new deck belt:
- Always match the belt path shown in the routing diagram
- Make sure the belt sits inside every pulley groove
- Check that the idler pulleys apply tension to the belt
- Rotate the pulleys by hand before starting the mower
Where to Find A Gravely Mower Deck Belt Diagram?
Having a Gravely mower deck belt makes a difference in replacing the deck belt on your Gravely mower. Here are some resources to find one.
- Official Gravely Manuals: Visit the Gravely Parts Diagrams Tool or search the official Gravely Manual Database. Enter your mower’s model number to view or download the complete owner’s manual and parts lookup diagrams.
- Third-Party Parts Dealers: Websites like Jacks Small Engines offer interactive, blown-out schematics. Look under the “Mower Deck, Belt, Blades and Spindles” category for your specific model series.
- The Floor Pan Decal: Gravely installs a Deck Belt Routing Decal directly onto most zero-turn frames. Flip up the metal footrest or check the underside of the pulley guards to see it. If your original sticker is scratched off or missing, replacement stickers can be purchased directly via Gravely Parts using part numbers.
Signs of A Faulty Mower Deck Belt
Your mower deck belt does not break suddenly in most cases. It has its way of telling you that you need a mower deck belt replacement. Here are the early warning signs:
- Slipping or Loss of Blade Power
- Burning Smell or Excess Heat
- Squealing or other weird noises from the mower deck

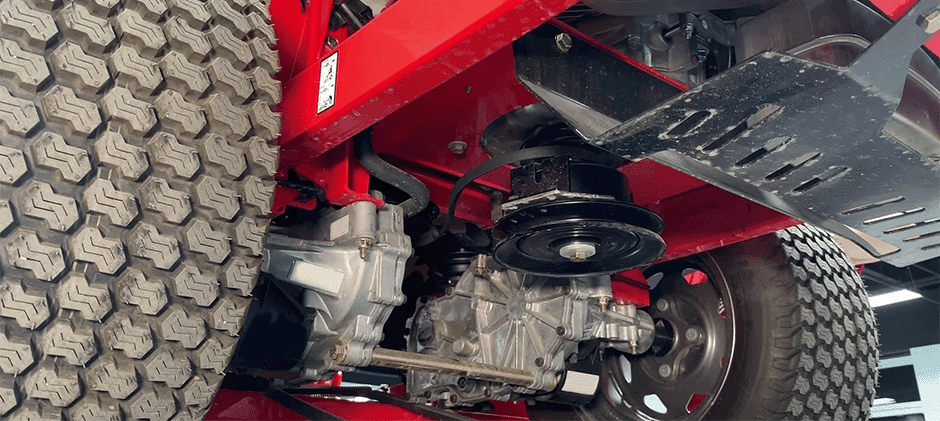

How to Replace Mower Deck Belt on Gravely?
For the Gravely Zero-turn mower and many other mowers, being able to smoothly work with the deck can save you a large amount of stress. Here is a step-by-step guide on how to remove and install the mower deck belts yourself.
Safety First
For safety purposes, it’s essential to do the following before servicing your mower deck:
- Set the parking brake
- Make sure all mower parts have stopped moving
- Stop the ignition and take out the key
- Disconnect the spark plug wire and place it away from the spark plug
Warm Reminder: It is extremely important to wear proper protective clothing such as safety glasses/goggles and gloves while working around blades and power equipment in general.
Removal
Remove the PTO belt and other related parts from the deck. This may involve:
- Lower the mower deck to the ground and remove the belt covers
- Pull the idler arm outward to release tension from the PTO belt
- Remove the PTO belt from the left mower deck pulley
- Slowly release the idler arm to relieve spring tension
- Remove the PTO belt from the mower deck pulleys and engine drive pulley
- Disconnect the drag link from the front deck bracket
- Detach the trunnions on the front and rear of the lift arms on both sides by removing the 3/8 nuts. Be sure to keep all hardware that you’ve removed
- Slide the deck out of the bottom of the unit
Installation
The installation steps are as easy as the removal. Just do as follows:
- Slide the mower deck underneath the unit
- Connect the drag link to the front deck bracket
- Attach the trunnions on the front and rear of the lift arms on both sides using 3/8 nuts
- Install the PTO belt around the engine drive pulley and mower deck pulleys
- Pull the idler arm outward to route the belt around the left mower deck pulley
- Slowly release it until the idler pulley applies proper tension
- Install the belt covers
- Install PTO belt on engine drive pulley and mower deck
- Regularly inspect the PTO belt for wear, damage, or twisting
For information about safety, warranty, and your specific model, read and be familiar with your owner’s manual.
How to Maintain Your Mower Deck Belt?
Maintaining your mower deck belt does not take much time, but it requires attention. This may include inspecting the deck belt and maintaining the mower deck regularly.
Mower Deck Belt Inspection
Checking the mower deck belt helps prevent missed signs and gives a full picture of the belt condition. Before checking details, make sure the mower is stable and safe to handle. Then move step by step through each area of the system. Just do as follows:
- Check belt surface for cracks or fraying
- Look for shiny or glazed areas on the belt
- Inspect pulley alignment and position
- Test belt tension with light pressure
- These simple steps help you understand the real condition of the belt before it fails during work.
Mower Deck Maintenance
Good maintenance helps extend the belt life and keep your mower running smoothly. This includes:
- Cleaning the deck after each use to reduce grass buildup and belt friction
- Checking the tension regularly for a stable blade speed
- Inspecting pulleys to prevent misalignment and uneven wear
Small adjustments can prevent larger issues later. Proper storage protects the belt from moisture and temperature changes. When the mower is used correctly and maintained regularly, the belt lasts much longer and works more consistently.
